MACNAUGHT Mechanical Flexible Extension Oil Control Gun
SKU HG20F-012M-01
$462.73
ex GST · $509.00 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details

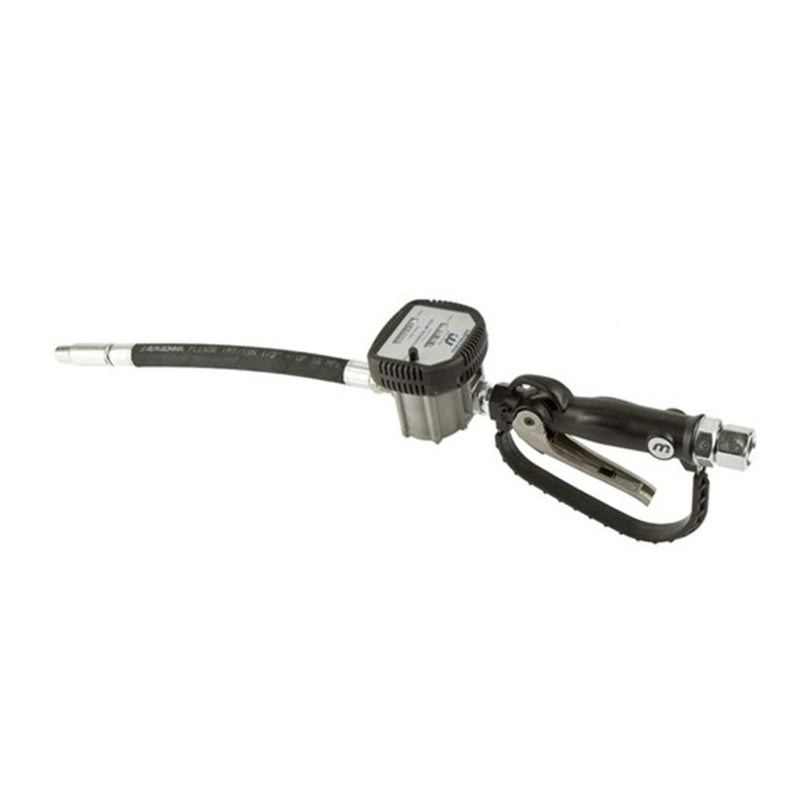

The HG20 oil gun is fitted with a mechanical meter for all types of workshop or dealership applications. It features a flexible extension with a non-drip automatic nozzle and locking trigger.
Features
- Mechanical Metering: No batteries and nothing to fail electronically, with batch and accumulative displays on the head.
- Flexible Extension: Bends into awkward fill points without repositioning the vehicle, and finishes in a non-drip automatic nozzle.
- Locking Trigger: Holds flow open through a long fill and guards against accidental dispensing.
- 1 To 30 L/min Range: Meters accurately from a trickle up to 30 L/min, so it suits both top-ups and full refills.
- Wide Temperature Range: Rated from -10 C to 55 C, which covers an unheated workshop in either season.
- SAE 140 Rated: Handles oils up to SAE 140 viscosity, so gear lube is within range.
Included accessories
Specifications
| METER | Mechanical meter on the HG20 oil gun for workshop and dealership use |
|---|---|
| DISPLAY | Batch and accumulative displays |
| ACCURACY | +/- 1% of reading |
| BATCH TOTAL | 999.9 L |
| ACCUMULATIVE TOTAL | 999999.9 L |
| FLOW RANGE | 1 TO 30 L/MIN | 0.26 TO 8 US GPM |
| MAXIMUM WORKING PRESSURE | 69 BAR | 1000 PSI |
| INLET THREAD | 1/2 IN BSPT OR NPT FEMALE |
| OUTLET THREAD | 1/2 IN BSPT OR NPT FEMALE |
| OPERATING TEMPERATURE | -10 C TO 55 C | 14 F TO 131 F |
| WEIGHT | 1.5 KG | 3.3 LB |
| EXTENSION | Flexible, with non-drip automatic nozzle and locking trigger |
| WETTED PARTS | Acetal, aluminium, nitrile rubber, mild steel |
| OIL RATING | Suitable for oils up to SAE 140 |
