Macnaught Retracta Air Reel, 10MM x 20M AR2101
Skip to product information
1 of 1

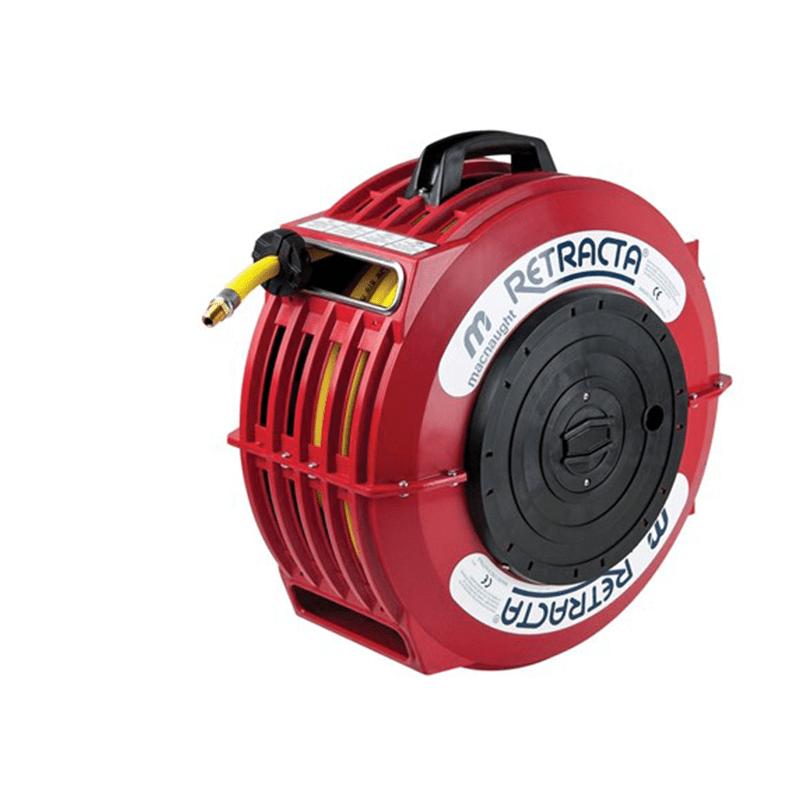

MACNAUGHT Retracta Air Reel 10MM x 20M

SKU: AR2101

MACNAUGHT Retracta Air Reel 10MM x 20M

Regular price $381.00 AUD
Sale price $381.00 AUD Regular price
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

Macnaught Retracta Air Reel, 10MM x 20

Overview

The  RETRACTA AR2101 Compressed Air Reel is a premium quality, strong, reliable reel, constructed using UV  polypropylene, heavy duty rewind spring, quality swivel assembly, 10mm x 20m hose assembly and is supplied complete with mounting bracket and carry handle.

Fitted with a positive spring latch mechanism the hose can be latched every half . The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required.

The corrosion and weather resistant construction  Retracta reels the ideal choice for both indoor and outdoor use. The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.



Details

Package Includes

  • RETRACTA AR2101 Air Hose reel
  • Carry Handle
  • Locking plate
  • BU100 mounting bracket and pin
  • Instruction manual

Recommended Use With

Repair Kit

  • RP35-BLACKS: Drum assembly
  • BS115VS:  Vitron O'Ring set (for air/water & oil reels)
  • RP114A-BLACKS: Latching side plate set
  • Z10S: 10mm hose stopper
  • Z40S: 12mm hose stopper
  • Macnaught Retracta Air Reel 10MM x 20M AR2101

Specifications

  • Type: Air reel
  • Hose ID: 10mm
  • Length: 20m
  • Maximum working pressure: 250psi (1,700kPa)
  • Hose material: reinforced PVC
  • Reel colour: Red
  • Hose colour: Yellow
  • Reel Inlet: 3/8” BSP (F)
  • Hose outlet: 1/4”BSP (M)
  • Weight: 10kg
  • Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
  • Maximum Temperature: 60 deg C
    • Features

    • 10 Year limited warranty
    • Impact resistant - Maximum strength for a long service life
    • Vertical rib design - For increased strength
    • Precision machined swivels - Leak free and smooth operation
    • Screwed together - Easily repaired and maintained
    • Sealed and lubricated main spring - Virtually maintenance free service life
    • Spring latch mechanism - Allows the reel to be fitted in any orientation
    • Stainless steel mouth guard - Protects hose and reel casing against wear
    • Easy side plate removal - Easy to maintain reel without removal from installation
    • Lightweight & portable - Weighs only 10kg
    • Spare parts are available

    Shipping & Returns

    Add text about your shipping policy

    Shipping & Returns

    Add text about your shipping policy

    Warranty

    Add text about your product warranty

    Warranty

    Add text about your product warranty

    Secure Payment

    Add text about your payment

    Secure Payment

    Add text about your payment

    View full details
    Macnaught Retracta Air Reel, 10MM x 20M AR2101

    MACNAUGHT Retracta Air Reel 10MM x 20M

    Regular price $381.00 AUD
    Sale price $381.00 AUD Regular price

    Details

    Package Includes

    • RETRACTA AR2101 Air Hose reel
    • Carry Handle
    • Locking plate
    • BU100 mounting bracket and pin
    • Instruction manual

    Recommended Use With

    Repair Kit

    • RP35-BLACKS: Drum assembly
    • BS115VS:  Vitron O'Ring set (for air/water & oil reels)
    • RP114A-BLACKS: Latching side plate set
    • Z10S: 10mm hose stopper
    • Z40S: 12mm hose stopper

    Features

  • 10 Year limited warranty
  • Impact resistant - Maximum strength for a long service life
  • Vertical rib design - For increased strength
  • Precision machined swivels - Leak free and smooth operation
  • Screwed together - Easily repaired and maintained
  • Sealed and lubricated main spring - Virtually maintenance free service life
  • Spring latch mechanism - Allows the reel to be fitted in any orientation
  • Stainless steel mouth guard - Protects hose and reel casing against wear
  • Easy side plate removal - Easy to maintain reel without removal from installation
  • Lightweight & portable - Weighs only 10kg
  • Spare parts are available
  • Macnaught Retracta Air Reel, 10MM x 20

    Overview

    The  RETRACTA AR2101 Compressed Air Reel is a premium quality, strong, reliable reel, constructed using UV  polypropylene, heavy duty rewind spring, quality swivel assembly, 10mm x 20m hose assembly and is supplied complete with mounting bracket and carry handle.

    Fitted with a positive spring latch mechanism the hose can be latched every half . The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required.

    The corrosion and weather resistant construction  Retracta reels the ideal choice for both indoor and outdoor use. The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.



    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

  • Type: Air reel
  • Hose ID: 10mm
  • Length: 20m
  • Maximum working pressure: 250psi (1,700kPa)
  • Hose material: reinforced PVC
  • Reel colour: Red
  • Hose colour: Yellow
  • Reel Inlet: 3/8” BSP (F)
  • Hose outlet: 1/4”BSP (M)
  • Weight: 10kg
  • Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
  • Maximum Temperature: 60 deg C
    • Features

    • 10 Year limited warranty
    • Impact resistant - Maximum strength for a long service life
    • Vertical rib design - For increased strength
    • Precision machined swivels - Leak free and smooth operation
    • Screwed together - Easily repaired and maintained
    • Sealed and lubricated main spring - Virtually maintenance free service life
    • Spring latch mechanism - Allows the reel to be fitted in any orientation
    • Stainless steel mouth guard - Protects hose and reel casing against wear
    • Easy side plate removal - Easy to maintain reel without removal from installation
    • Lightweight & portable - Weighs only 10kg
    • Spare parts are available
