Macnaught RETRACTA Oxy/Acetylene Gas Welding Reel, 5mm x 15m OA2551
  • Macnaught RETRACTA Oxy/Acetylene Gas Welding Reel, 5mm x 15m OA2551
1 1

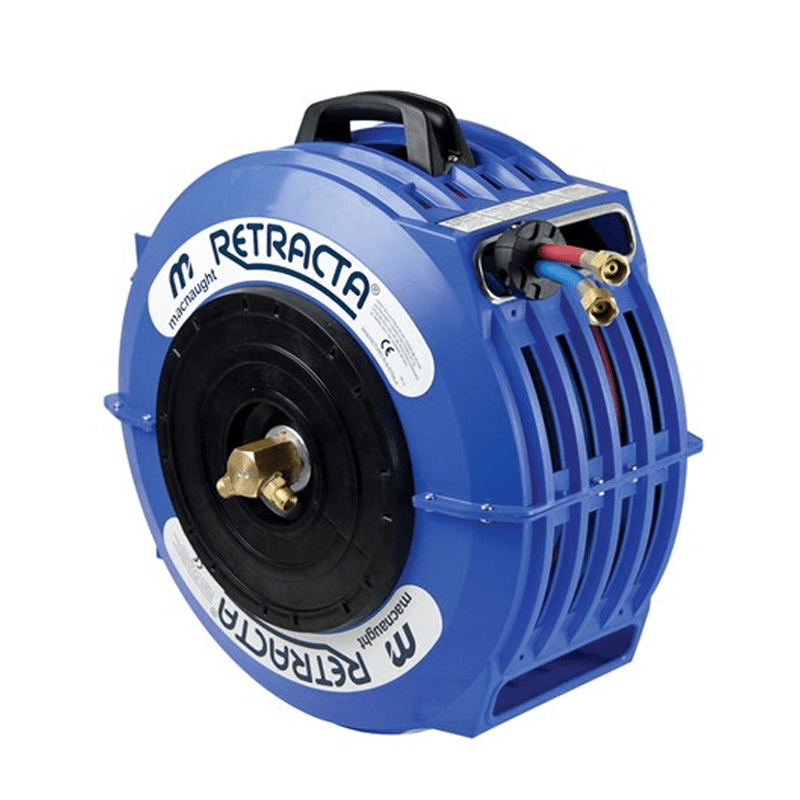

MACNAUGHT Retracta Oxy/Acetylene Gas Welding Reel 5mm x 15m

SKU: OA2551

MACNAUGHT Retracta Oxy/Acetylene Gas Welding Reel 5mm x 15m

$675.95 AUD
$675.95 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
Macnaught RETRACTA Oxy/Acetylene Gas Welding Reel, 5mm x 15m OA2551

MACNAUGHT Retracta Oxy/Acetylene Gas Welding Reel 5mm x 15m

$675.95 AUD
$675.95 AUD
Save $0
Sold out

Details

Package Includes

  • RETRACTA OA2551 Oxy / Acetylene Gas Welding Hose Reel
  • Carry handle
  • Locking plate
  • BU100 mounting bracket and pin
  • Instruction manual

Repair Kits

  • RP35-BLACKS: Drum assembly
  • RP114A-BLACKS: Latching side plate set
  • Z10S: 10mm hose stopper
  • Z40S: 12mm hose stopper

Features

  • 10 Year limited warranty
  • Impact resistant - Maximum strength for a long service life
  • Vertical rib design - For increased strength
  • Precision machined swivels - Leak free and smooth operation
  • Screwed together - Easily repaired and maintained
  • Sealed and lubricated main spring - Virtually maintenance free service life
  • Spring latch mechanism - Allows the reel to be fitted in any orientation
  • Stainless steel mouth guard - Protects hose and reel casing against wear
  • Easy side plate removal - Easy to maintain reel without removal from installation
  • Lightweight & portable - Weighs only 13kg
  • Spare parts are available

    • Macnaught Retracta Oxy/Acetylene Gas Welding Reel, 5mm x 15m OA2551

    Overview

    The  RETRACTA OA2551 Oxy / Acetylene Gas Welding Hose Reel is a premium quality, strong, reliable reel, constructed using UV  polypropylene, heavy duty rewind spring, quality swivel assembly, 5mm x 15m Oxy / Acetylene hose assembly and is supplied complete with mounting bracket and carry handle.

    Fitted with a positive spring latch mechanism the hose can be latched every half . The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required.

    The corrosion and weather resistant construction  Retracta reels the ideal choice for both indoor and outdoor use. The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.



    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Macnaught RETRACTA Oxy-Acetylene Gas Welding Reel 5mm x 15m Instruction Manual

    Specifications

  • Type: Oxygen / Acetylene Gas Welding
  • Hose ID: 5mm
  • Length: 15m
  • Maximum working pressure: 200psi (1,400kPa)
  • Hose material: reinforced rubber (AS1335)
  • Reel color: Red
  • Hose color: Red/Blue
  • Reel Inlet: 5.8"" UNF (M)
  • Hose outlet: 5/8"" UNF (F)
  • Weight: 13kg
  • Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)

      • Features

    • 10 Year limited warranty
    • Impact resistant - Maximum strength for a long service life
    • Vertical rib design - For increased strength
    • Precision machined swivels - Leak free and smooth operation
    • Screwed together - Easily repaired and maintained
    • Sealed and lubricated main spring - Virtually maintenance free service life
    • Spring latch mechanism - Allows the reel to be fitted in any orientation
    • Stainless steel mouth guard - Protects hose and reel casing against wear
    • Easy side plate removal - Easy to maintain reel without removal from installation
    • Lightweight & portable - Weighs only 13kg
    • Spare parts are available
