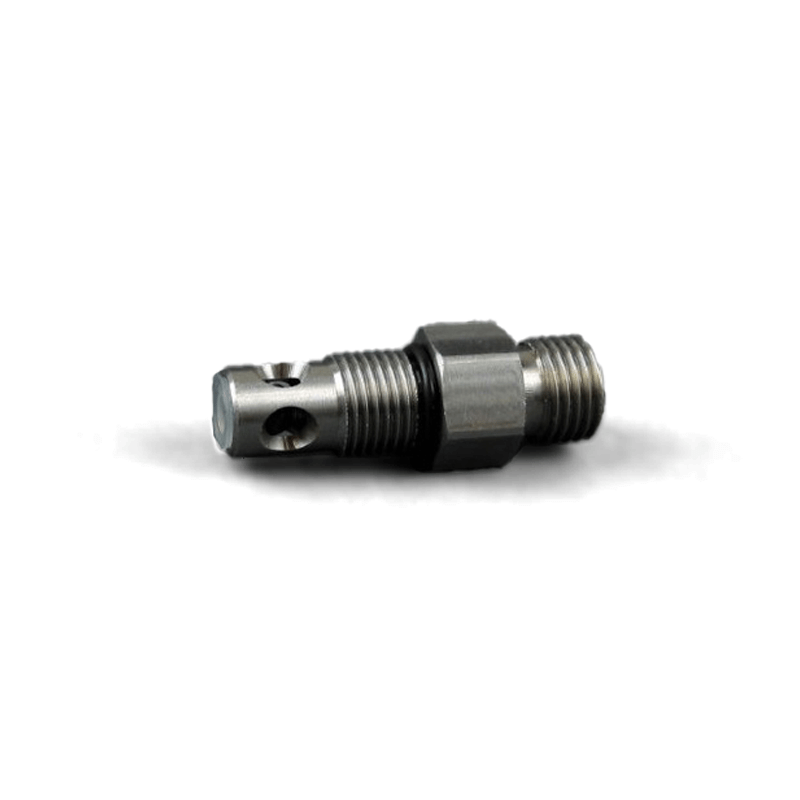

Graco Magnum Outlet Valve Repair Kit - Project Plus, X5, X7 - 16E845
  • Graco Magnum Outlet Valve Repair Kit - Project Plus, X5, X7 - 16E845
1 1

Graco Magnum Outlet Valve Repair Kit - Project Plus, X5, X7 - 16E845

SKU: 16E845

Graco Magnum Outlet Valve Repair Kit - Project Plus, X5, X7 - 16E845

$78.00 AUD
$78.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.

Other payment options

The Basics

Graco 4-Part Spares Repair Kit for Magnum Outlet Valve

Graco Project Plus', X5 and X7 do not have a complete pump replacement, the spare parts available are the inlet valve (16E844) and the outlet valve (16E845).

What's included?

Inlet Housing, Compression Spring, Ball, and Instructions

Works with:

  • Graco Magnum Repair Kit Instructions
UPC Product: 00633955578234
Family Code: FAMSPA
Unit of Measure: EA
Height: 2.1 IN   |  5.334 CM
Length: 5.8 IN   |  14.732 CM
Width: 4.25 IN   |  10.795 CM
Volume: .03 FT3   |  .001 M3
Chargeable Weight: 0.312 LBS  | 0.142 KG

Technical Specifications

TYPE Repair Kit
FOR USE WITH Project Painter Plus, X5, X7
INCLUDES Repair Manual, Outlet Valve
NUMBER OF PIECES 2

    Replace a worn or damaged outlet valve with genuine Graco parts. Valve comes in a kit for easy replacement. For Magnum Project Painter Plus, X5 and X7 paint sprayers. Refer to the parts manual for your sprayer to ensure part compatibility

    Graco's dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. Paints and coatings wear down valves from normal use due to the abrasives used in coatings. Use Genuine Graco parts to keep your sprayer in peak working order for years to come.

    • Ball and seat in the valve open and close to pump material
    • Check outlet valve for wear, scratches or rust if the sprayer does not prime or spray
    • Verify the sprayer's series letter which is found on the serial number tag
    • Use with project painter plus, magnum X5 - series B, C, D, E and X7 - series B, C, D, LTS 15, LTS 17 275025, 262800, 262805, 17K955, 17K960
    • Genuine Graco parts kit includes valve and instructions
