Air Breathers HC0293SEE5
Air Breathers HC0293SEE5 - Air Breathers HC0293SEE5
Description

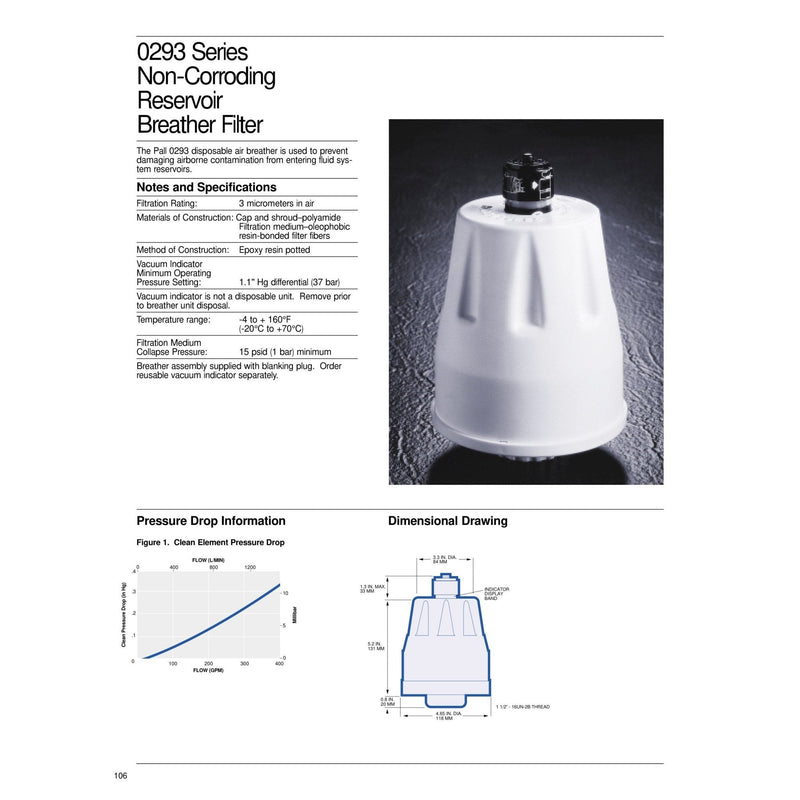

The HC0293SEE5 is a disposable 3 µm breather element used with 0293 Series reservoir breathers. It prevents airborne dust, dirt, and moisture from contaminating fluids. Made with oleophobic resin-bonded fibers, it resists wetting and maintains airflow. Lightweight and easy to replace, it supports reservoir cleanliness and long-term reliability.
Key Features
- Pall Air Breather - protects reservoirs from atmospheric particulate ingress
- Maintains tank cleanliness when oil level cycles draw air in
- Compatible with Pall indicator HC0293D004 for service-life monitoring
Specifications
| Media Material | Oleophobic resin bonded filter fibers |
|---|---|
| Hardware Material | Polyamide |
| Nominal Outer Diameter | 4.65 in 11.8 cm |
| Nominal Length | 7.3 in 18.5 cm |
| Removal Rating (in Gas) | 3 µm |
Typical Applications
- Hydraulic and lube reservoir desiccation
- Tank-vent contamination control on stored fuels
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- Pall Air Breather - protects reservoirs from atmospheric particulate ingress
- Maintains tank cleanliness when oil level cycles draw air in
- Compatible with Pall indicator HC0293D004 for service-life monitoring
Specifications
- Product class: Disposable air breather filter element
- Filtration rating: 3 micrometers in air
- Media material: Oleophobic resin-bonded filter fibers, epoxy resin potted
- Hardware material: Polyamide cap and shroud
- Nominal outer diameter: 4.65 in / 118 mm
- Nominal length: 7.3 in / 18.5 cm
- Temperature range: -20 C to +70 C
- Thread: 1 1/2 in-16UN-2B
- Mating accessories: HC0293D004 vacuum indicator, HD7500-RFC adapter, HD7500-RFK fill port assembly
