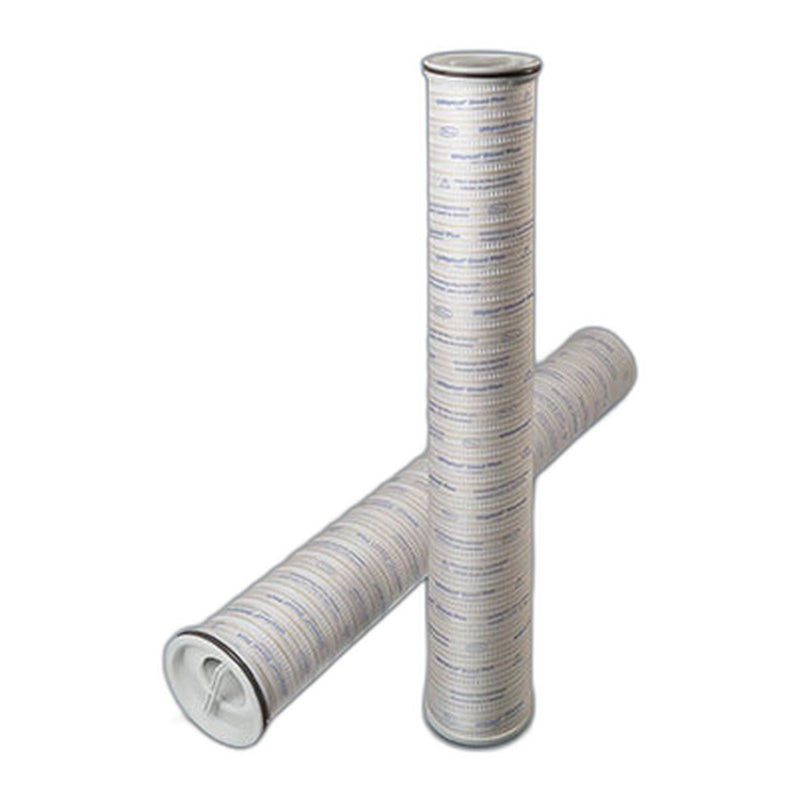

Ultipleat® Diesel Plus Coalescers & Separators UDPEJP
Ultipleat® Diesel Plus Coalescers & Separators UDPEJP - Ultipleat® Diesel Plus Coalescers & Separators UDPEJP
Description
The Pall UDPEJP Ultipleat Diesel Plus filter provides a single-element solution for removing both particulate and water contamination from diesel fuel, protecting modern heavy-duty engines from damage and accelerated wear. This 40-inch nominal length element combines a high-efficiency particulate filter with an integral high-performance coalescer. It is rated to remove particles at 5 µm and can achieve a fuel cleanliness of ISO 4406 code 13/12/11 in a single pass. The coalescing function is designed to reduce free water content to less than 50 ppm. The element features a stress-resistant filter media design that maintains a low differential pressure drop throughout its service life, resulting in fewer element change-outs and reduced operating costs compared to other solutions.
Key Features
- Ultipleat® Diesel Plus coalescer / separator element
- Removes water and particulate in a single stage - protects high-pressure fuel injectors
- Designed for use in Pall UDPV-series ASME vessels
Specifications
| Hardware Material | Acetal |
|---|---|
| O-ring/Seal/Gasket Material | Fluorcarbon |
| Removal Rating | 5 micron in liquid |
| Removal Efficiency | Beta1000 |
| Nominal Length | 40 in |
| Maximum Temperature | 50 °C |
| Separation Level (LL Coalescer) | <50ppm Free water @ 15 dyn/cm & 50 GPM |
| Clean Differential Pressure | 0.17 bar (2 psid) |
Typical Applications
- Bulk diesel storage protection
- Mine-site refuelling depots
- Power generation backup-fuel polishing
- Off-loading and tanker discharge filtration
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- Ultipleat® Diesel Plus coalescer / separator element
- Removes water and particulate in a single stage - protects high-pressure fuel injectors
- Designed for use in Pall UDPV-series ASME vessels
Specifications
- Hardware Material: Acetal
- O-ring/Seal/Gasket Material: Fluorcarbon
- Removal Rating: 5 micron in liquid
- Removal Efficiency: Beta1000
- Nominal Length: 40 in
- Maximum Temperature: 50 °C
- Separation Level (LL Coalescer): <50ppm Free water @ 15 dyn/cm & 50 GPM
- Clean Differential Pressure: 0.17 bar (2 psid)
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
