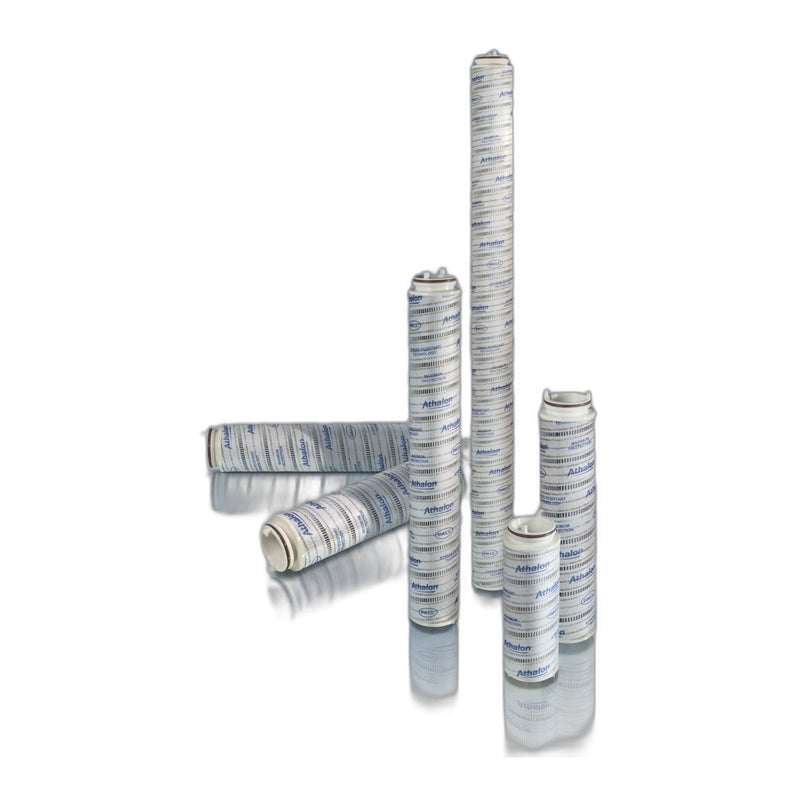

Athalon™ Lube & Hydraulic Elements UE310AN20Z
Pall Shop offers 20 inches long Athalon™ Filter Element. The enhanced performance of this filter assures equipment protection and extends component and fluid life.
Description
The Athalon UE310AN20Z is a 20-inch, 7 µm filter element engineered to maintain fluid cleanliness in hydraulic and lubrication systems. Its Ultipleat SRT stress‑resistant media with laid‑over pleat geometry provides stable retention across operating cycles, while the anti‑static construction helps protect fluids and components. Rugged, coreless design supports efficient handling and disposal for dependable service life.
Key Features
- 3 µm removal rating at β₁₀₀₀ ≥ 1000
- 20-inch nominal length, 310 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
| Media Material | Glass Fiber |
|---|---|
| Hardware Material | Polyester |
| O-ring/Seal/Gasket Material | Fluorocarbon |
| Removal Rating | 7 µm |
| Removal Efficiency | Beta 2000 |
| Nominal Outer Diameter | 3.13 in 7.95 cm |
| Nominal Length | 20 in 50.8 cm |
| Dirt Holding Capacity | 0 |
Typical Applications
- Mining haul truck and HME workshop lubrication
- Power generation lube-oil circuits
- Bulk lube storage transfer at fuel/lube depots
- Mobile service vehicle dispensing skids
- Hydraulic system contamination control
SKU Reference
| Size class | 310 (3-inch series) |
|---|---|
| Media | Pall Ultipleat® SRT (Athalon glass-fibre) |
| Removal rating | 3 µm (β₁₀₀₀ ≥ 1000) |
| Nominal length | 20" |
| Seal material | Fluorocarbon (Viton®) |
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- 3 µm removal rating at β₁₀₀₀ ≥ 1000
- 20-inch nominal length, 310 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
- Media Material: Glass Fiber
- Hardware Material: Polyester
- O-ring/Seal/Gasket Material: Fluorocarbon
- Removal Rating: 7 µm
- Removal Efficiency: Beta 2000
- Nominal Outer Diameter: 3.13 in 7.95 cm
- Nominal Length: 20 in 50.8 cm
