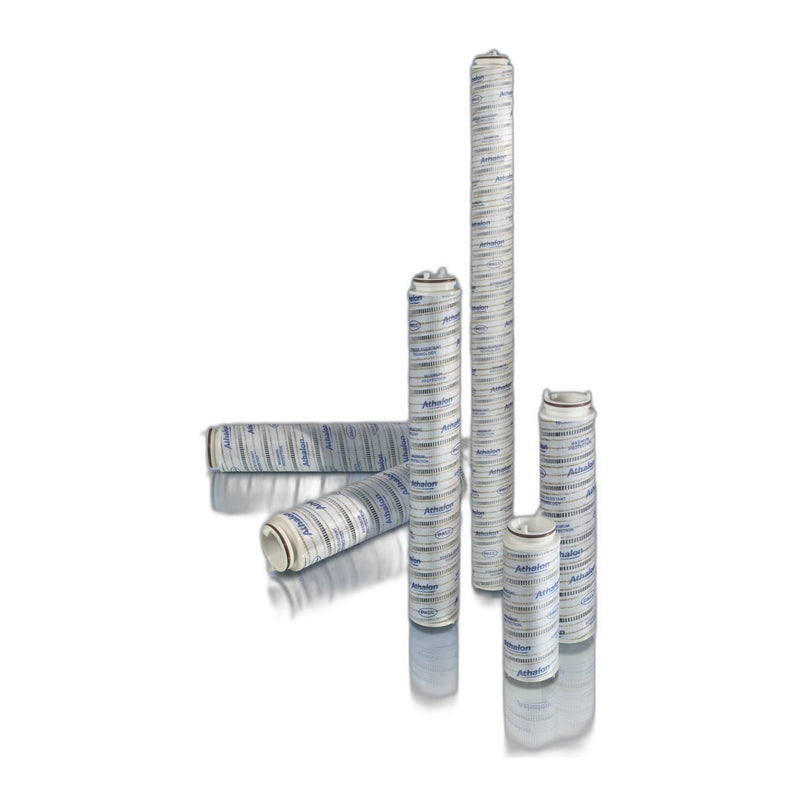

Athalon™ Lube & Hydraulic Elements UE310AP13Z
Buy 4 inches hydraulic Athalon™ Glass Fiber Filter Elements at Pall Shop. These filters improve fluid cleanliness consistency and minimize static charge generation.
Description
The Athalon UE310AP13Z is a 13-inch, 5 µm filter element designed to provide reliable particulate control in hydraulic and lubrication systems. It features Ultipleat SRT stress‑resistant media with laid‑over pleat geometry for high dirt capacity and stable performance. Its anti‑static construction helps safeguard fluids and components, while the coreless, cageless design supports easy handling and reduced disposal impact.
Key Features
- 7 µm removal rating at β₁₀₀₀ ≥ 1000
- 13-inch nominal length, 310 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
| Media Material | Glass Fiber |
|---|---|
| Hardware Material | Polyester |
| O-ring/Seal/Gasket Material | Fluorocarbon |
| Removal Rating | 5 µm |
| Removal Efficiency | Beta 2000 |
| Nominal Outer Diameter | 3.13 in 7.95 cm |
| Nominal Length | 13 in 33.02 cm |
| Dirt Holding Capacity | 0 |
Typical Applications
- Mining haul truck and HME workshop lubrication
- Power generation lube-oil circuits
- Bulk lube storage transfer at fuel/lube depots
- Mobile service vehicle dispensing skids
- Hydraulic system contamination control
SKU Reference
| Size class | 310 (3-inch series) |
|---|---|
| Media | Pall Ultipleat® SRT (Athalon glass-fibre) |
| Removal rating | 7 µm (β₁₀₀₀ ≥ 1000) |
| Nominal length | 13" |
| Seal material | Fluorocarbon (Viton®) |
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- 7 µm removal rating at β₁₀₀₀ ≥ 1000
- 13-inch nominal length, 310 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
- Media Material: Glass Fiber
- Hardware Material: Polyester
- O-ring/Seal/Gasket Material: Fluorocarbon
- Removal Rating: 5 µm
- Removal Efficiency: Beta 2000
- Nominal Outer Diameter: 3.13 in 7.95 cm
- Nominal Length: 13 in 33.02 cm
