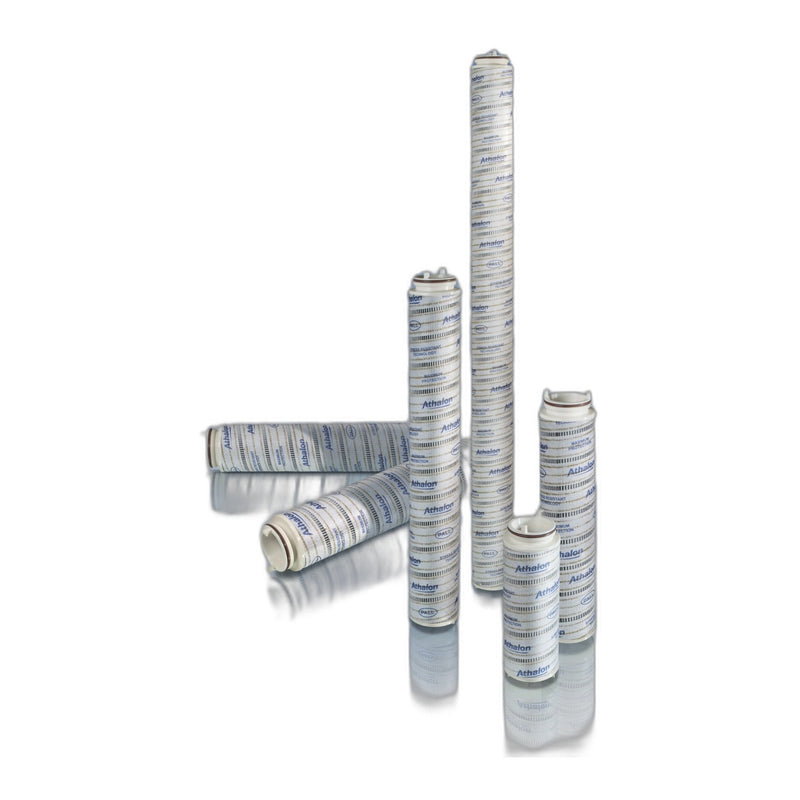

Athalon™ Lube & Hydraulic Elements UE310AT20Z
Explore Pall shop to buy Glass Fiber Athalon™ Hydraulic Filter Elements with anti-static construction and Laid Over Pleat design. They come with a 25 micron removal rating.
Description
The Athalon UE310AT20Z is engineered as a 20-inch filter element with a 25 µm removal rating (Beta 2000). It uses Pall’s stress‑resistant Ultipleat SRT medium and a laid‑over pleat design to deliver stable, long‑life filtration. Anti‑static features reduce discharge risks, while the coreless, cageless construction simplifies handling and disposal.
Key Features
- 25 µm removal rating at β₁₀₀₀ ≥ 1000
- 20-inch nominal length, 310 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
| Media Material | Glass Fiber |
|---|---|
| Hardware Material | Polyester |
| O-ring/Seal/Gasket Material | Fluorocarbon |
| Removal Rating | 25 µm |
| Removal Efficiency | Beta 2000 |
| Nominal Outer Diameter | 3.13 in 7.95 cm |
| Nominal Length | 20 in 50.8 cm |
| Dirt Holding Capacity | 0 |
Typical Applications
- Mining haul truck and HME workshop lubrication
- Power generation lube-oil circuits
- Bulk lube storage transfer at fuel/lube depots
- Mobile service vehicle dispensing skids
- Hydraulic system contamination control
SKU Reference
| Size class | 310 (3-inch series) |
|---|---|
| Media | Pall Ultipleat® SRT (Athalon glass-fibre) |
| Removal rating | 25 µm (β₁₀₀₀ ≥ 1000) |
| Nominal length | 20" |
| Seal material | Fluorocarbon (Viton®) |
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- 25 µm removal rating at β₁₀₀₀ ≥ 1000
- 20-inch nominal length, 310 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
- Media Material: Glass Fiber
- Hardware Material: Polyester
- O-ring/Seal/Gasket Material: Fluorocarbon
- Removal Rating: 25 µm
- Removal Efficiency: Beta 2000
- Nominal Outer Diameter: 3.13 in 7.95 cm
- Nominal Length: 20 in 50.8 cm
