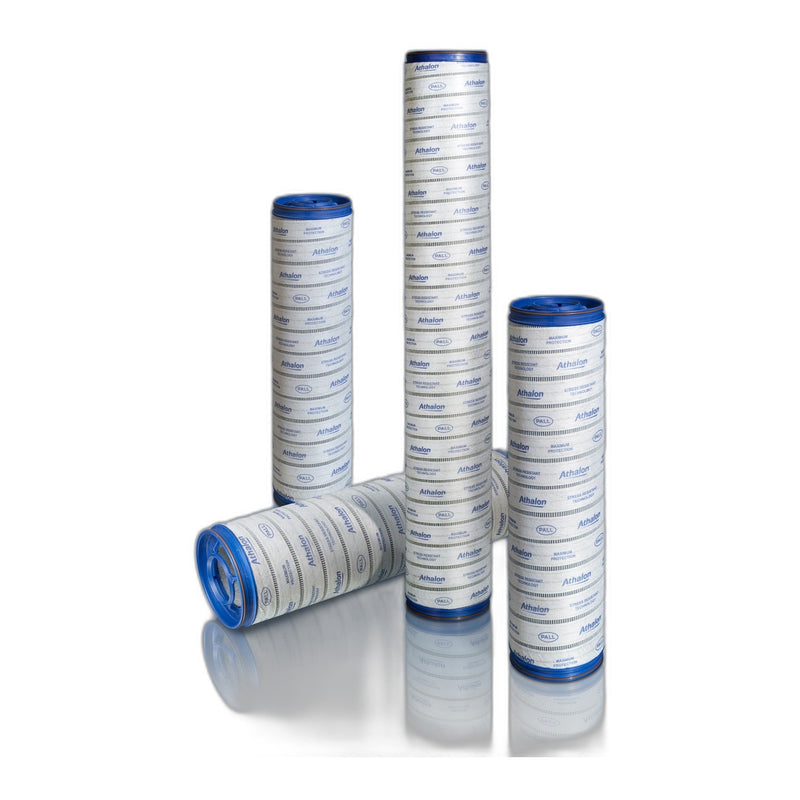

Athalon™ Lube & Hydraulic Elements UE610AN20Z
Pall shop offers Athalon™ Filter Elements with fluorocarbon seals. They are 508 mm long, with 7 microns removal rating. They are easy to install and are cost-effective.
Description
The Athalon UE610AN20Z is a 20-inch, 7 µm filter element designed to deliver high-efficiency particulate control in hydraulic and lubrication applications. Featuring Ultipleat SRT media in a laid‑over pleat configuration, it ensures reliable retention, while anti‑static properties and coreless construction support long service life and simplified disposal.
Key Features
- 3 µm removal rating at β₁₀₀₀ ≥ 1000
- 20-inch nominal length, 610 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
| Media Material | Glass Fiber |
|---|---|
| Hardware Material | Polyacetal |
| O-ring/Seal/Gasket Material | Fluorocarbon |
| Removal Rating | 7 µm |
| Removal Efficiency | Beta 2000 |
| Nominal Outer Diameter | 6 in 15.24 cm |
| Nominal Length | 20 in 50.8 cm |
| Dirt Holding Capacity | 0 |
Typical Applications
- Mining haul truck and HME workshop lubrication
- Power generation lube-oil circuits
- Bulk lube storage transfer at fuel/lube depots
- Mobile service vehicle dispensing skids
- Hydraulic system contamination control
SKU Reference
| Size class | 610 (6-inch series) |
|---|---|
| Media | Pall Ultipleat® SRT (Athalon glass-fibre) |
| Removal rating | 3 µm (β₁₀₀₀ ≥ 1000) |
| Nominal length | 20" |
| Seal material | Fluorocarbon (Viton®) |
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- 3 µm removal rating at β₁₀₀₀ ≥ 1000
- 20-inch nominal length, 610 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
- Media Material: Glass Fiber
- Hardware Material: Polyacetal
- O-ring/Seal/Gasket Material: Fluorocarbon
- Removal Rating: 7 µm
- Removal Efficiency: Beta 2000
- Nominal Outer Diameter: 6 in 15.24 cm
- Nominal Length: 20 in 50.8 cm
