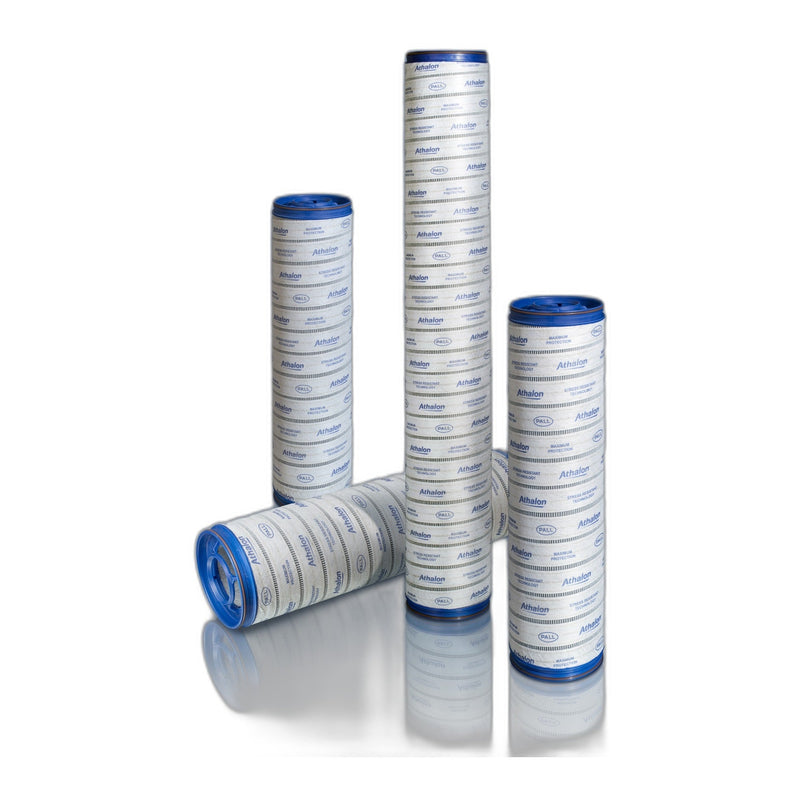

Athalon™ Lube & Hydraulic Filter Element UE610AP20Z
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Athalon™ Lube & Hydraulic Filter Element UE610AP20Z
Browse Pall shop to buy Athalon™ Glass Fiber Filter Elements - 50.8 cm long with 5 microns filter rating. They come with fluorocarbon seal and low clean pressure drop.
Description
ELEMENT UE610AP20Z
Key Features
- 7 µm removal rating at β₁₀₀₀ ≥ 1000
- 20-inch nominal length, 610 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
| Media Material | Glass Fiber |
|---|---|
| Hardware Material | Polyacetal |
| O-ring/Seal/Gasket Material | Fluorocarbon |
| Removal Rating | 5 µm |
| Removal Efficiency | Beta 2000 |
| Nominal Outer Diameter | 6 in 15.24 cm |
| Nominal Length | 20 in 50.8 cm |
| Dirt Holding Capacity | 0 |
Typical Applications
- Mining haul truck and HME workshop lubrication
- Power generation lube-oil circuits
- Bulk lube storage transfer at fuel/lube depots
- Mobile service vehicle dispensing skids
- Hydraulic system contamination control
SKU Reference
| Size class | 610 (6-inch series) |
|---|---|
| Media | Pall Ultipleat® SRT (Athalon glass-fibre) |
| Removal rating | 7 µm (β₁₀₀₀ ≥ 1000) |
| Nominal length | 20" |
| Seal material | Fluorocarbon (Viton®) |
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- 7 µm removal rating at β₁₀₀₀ ≥ 1000
- 20-inch nominal length, 610 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
- Media Material: Glass Fiber
- Hardware Material: Polyacetal
- O-ring/Seal/Gasket Material: Fluorocarbon
- Removal Rating: 5 µm
- Removal Efficiency: Beta 2000
- Nominal Outer Diameter: 6 in 15.24 cm
- Nominal Length: 20 in 50.8 cm
