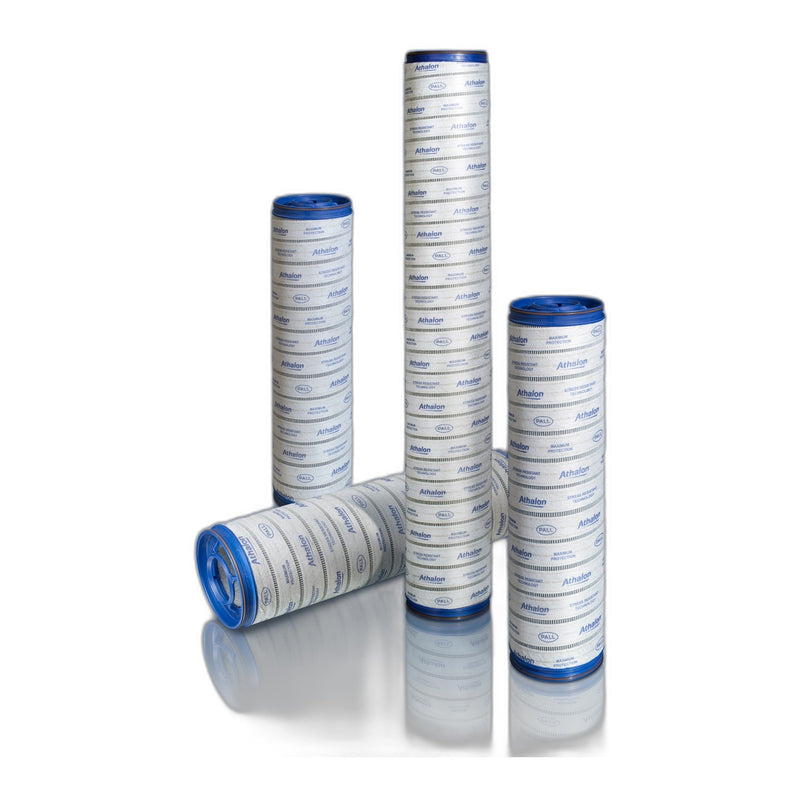

Athalon™ Lube & Hydraulic Elements UE610AS40Z
Pall shop offers 40 inches long Athalon™ Glass Fiber Filter Elements with fluorocarbon seal. They come with a Cyclic Stabilization Test (CST) for better performance and longer service life.
Description
The Athalon UE610AS40Z is a 40-inch, 12 µm element designed to maintain stable fluid cleanliness in hydraulic and lubrication service. Pall’s Ultipleat SRT stress‑resistant media in a laid‑over pleat structure delivers consistent particulate retention and extended service life. Its anti‑static construction protects both fluid and system, while the coreless, cageless design makes handling and disposal simpler.
Key Features
- 12 µm removal rating at β₁₀₀₀ ≥ 1000
- 40-inch nominal length, 610 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
| Media Material | Glass Fiber |
|---|---|
| Hardware Material | Polyacetal |
| O-ring/Seal/Gasket Material | Fluorocarbon |
| Removal Rating | 12 µm |
| Removal Efficiency | Beta 2000 |
| Nominal Outer Diameter | 6 in 15.24 cm |
| Nominal Length | 40 in 101.6 cm |
| Dirt Holding Capacity | 0 |
Typical Applications
- Mining haul truck and HME workshop lubrication
- Power generation lube-oil circuits
- Bulk lube storage transfer at fuel/lube depots
- Mobile service vehicle dispensing skids
- Hydraulic system contamination control
SKU Reference
| Size class | 610 (6-inch series) |
|---|---|
| Media | Pall Ultipleat® SRT (Athalon glass-fibre) |
| Removal rating | 12 µm (β₁₀₀₀ ≥ 1000) |
| Nominal length | 40" |
| Seal material | Fluorocarbon (Viton®) |
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- 12 µm removal rating at β₁₀₀₀ ≥ 1000
- 40-inch nominal length, 610 series housing fit
- Fluorocarbon (Viton®) seal - compatible with mineral and synthetic lubricants
- Pall Ultipleat® SRT stress-resistant filtration medium
- Laid-over pleat geometry - stable performance under high differential pressure cycles
- Anti-static construction reduces electrostatic discharge in low-conductivity oils
- Coreless, cageless design - lower disposal weight and simpler element change-outs
Specifications
- Media Material: Glass Fiber
- Hardware Material: Polyacetal
- O-ring/Seal/Gasket Material: Fluorocarbon
- Removal Rating: 12 µm
- Removal Efficiency: Beta 2000
- Nominal Outer Diameter: 6 in 15.24 cm
- Nominal Length: 40 in 101.6 cm
