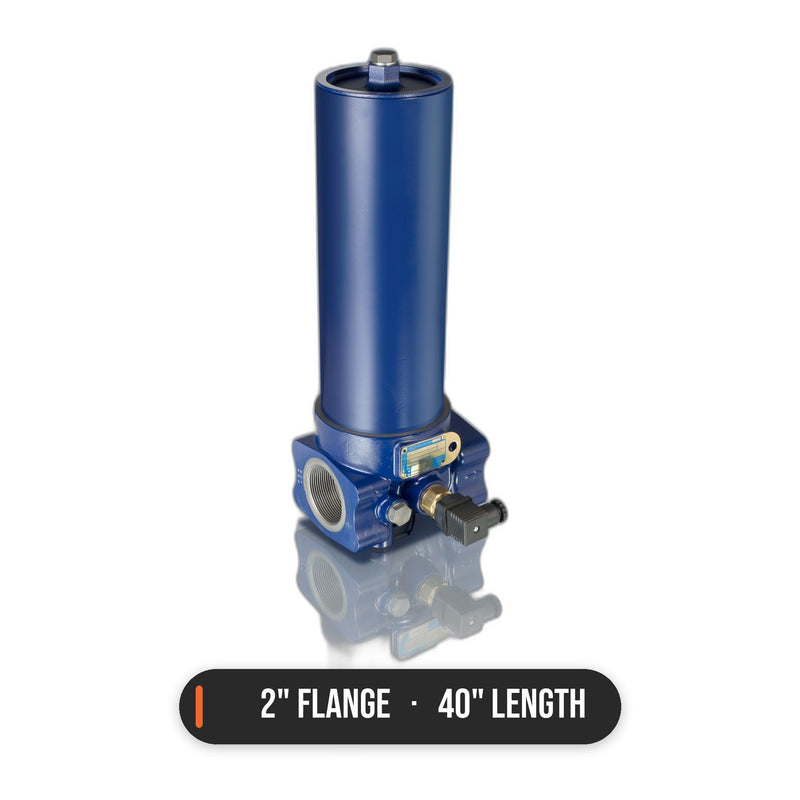

Athalon™ Simplex Filter Housing UR310F3240ZG
Pall US Sales Channel
Description
UR310F3240ZG ASSY HOUSING
Key Features
- Genuine Pall Athalon™ housing, single-element simplex configuration
- 600 PSI (≈40 bar) maximum operating pressure, return-line rated
- Accepts Athalon UE-series elements - micron rating selectable per application
Specifications
| O-ring/Seal/Gasket Material | Fluorocarbon |
|---|---|
| Nominal Length | 40 in |
Typical Applications
- Mining haul truck and HME workshop lubrication
- Power generation lube-oil circuits
- Bulk lube storage transfer at fuel/lube depots
- Mobile service vehicle dispensing skids
- Hydraulic system contamination control
Genuine Pall product supplied by GO Industrial. For project sizing, duplex configurations, large flow rates above 200 L/min, high-pressure lube circuits, or ASME-coded vessel systems, please contact our projects team at sales@goind.com.au or 07 3204 2240 for correct selection.
Features
Features
- Genuine Pall Athalon™ housing, single-element simplex configuration
- 600 PSI (≈40 bar) maximum operating pressure, return-line rated
- Accepts Athalon UE-series elements - micron rating selectable per application
Specifications
- Series: Pall Athalon UR310 (return line)
- Maximum Operating Pressure: 41 bar (600 psi)
- Port Size / Type: 2 in nominal, ISO 6162 split flange
- Nominal Length: 40 in (overall 1264.9 mm, empty weight 29.2 kg)
- Seal Material: Fluorocarbon
- Bypass Valve: 4.5 bar (65 psid), cover service (code G)
- Configuration: Simplex, single element
- Element Series: Athalon UE310, 40 in length (3 to 25 micron)
- Series Flow Capability: To 760 L/min (200 US gpm)
- Materials: Head and cover: ductile cast iron; tube: carbon steel
- Temperature Range: -29 C to 120 C (fluorocarbon seals)
