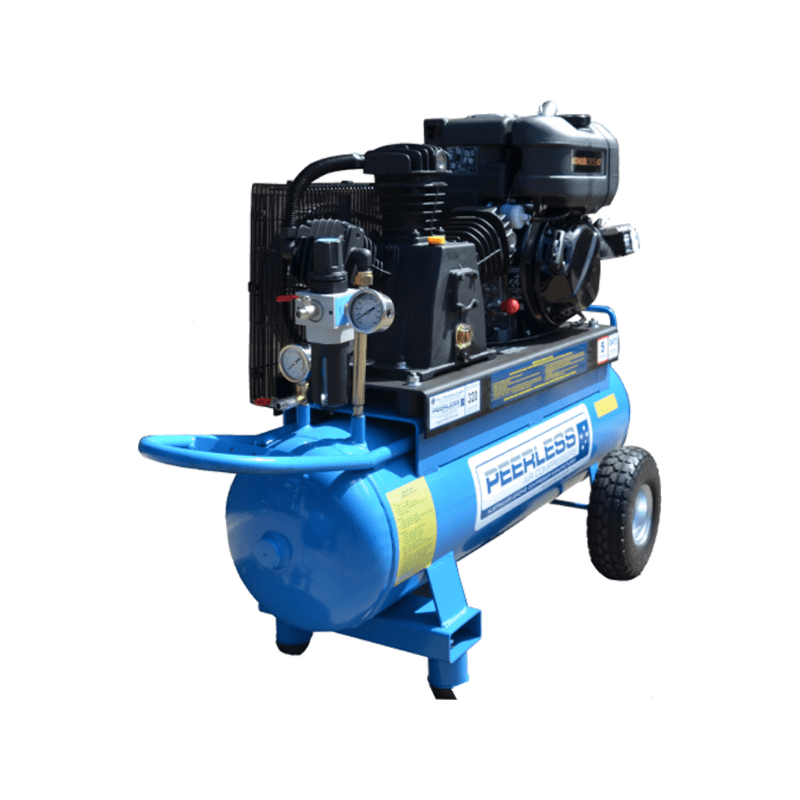

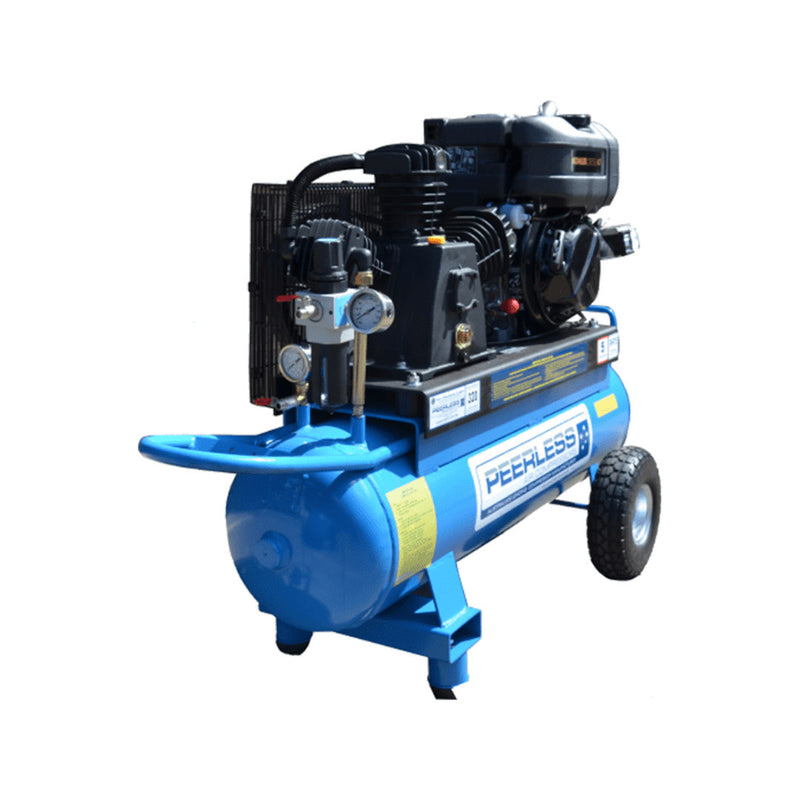

Peerless PHP15 Belt Drive Diesel Air Compressor 00111
SKU: 00111Peerless PHP15 Belt Drive Diesel Air Compressor 00111
Other payment options
Couldn't load pickup availability
The Basics
Peerless Products have a very unique design when it comes to the Diesel range of air compressors. We have a floating top plate that isn’t hard welded to the tank. We do this to assist in eliminating the vibration from the motor and the pump, limiting the vibration transfer to the air receiver reduces metal stress and less load be transferred to where it is also mounted.
This is also an advantage to the user or operator as if you would like to dismount and have the tank situated as where on a vehicle build you can separate easier at no additional cost*. You then have the option of mounting the top plate (motor and Pump) to a lower centre of gravity and then the pump can be placed under the body tray.
We use Yanmar diesel engines which are well used throughout Australia, these diesel engines also run a bit quieter than other brands in the market when comparing side by side. Key start engines are the only option we do in the diesel range. The conrader valve fits in perfectly with the Yanmar engine able to idle up and down when air demand is required, the air operated piston valve will automatically throttle up and down with the excess air not being required being vented out of the control valve.
Every Peerless Diesel build comes with the best suited water trap filter regulator fitted, being a unit that runs 0-145PSI or 0-175PSI, we have it covered so you can connect and start work. With that being said, we run and test every air compressor so that we know it will be in top working order when you receive delivery.
Performance of all our belt driven air compressors are to AS4637.
- Yanmar key start engine
- Conrader idle control system – USA made
- Floating top plate – Peerless design
- AS1210 approved pressure vessel – MDR report certificate available on request
- Approved safety valve – safety certificate
- 10 year tank warranty
- Stainless steel gauges (not plastic)
- Solid belt guard (not wire)
- Flexible braided outlet hose from pump
- 2 air outlets - 1 x main tank outlet, 1 x water trap regulator outlet
- Fuel pump – lift pump
- MDG15 Mine compliant retro box
- Wiring lumen extension (single or twin)
- Specially build to meet your requirements
Peerless 00111
| Code | 00111 |
| Model | PHP15D |
| Pump Displacement (CFM) |
15 CFM |
| Free Air Delivery (LPM) | 320 LPM |
| Max PSI | 175 |
| Engine | Yanmar L48 |
| Warranty Pump | 5 Year |
| Warranty Engine | 3 Year |
| Tank Capacity (L) | 68L |
| Pump up time to 100PSI | 1.25 - 1.30 Min |
| Dimensions (mm) / Weight (kg) | 1300Lx460Wx910H 140kg |
| Cooling Method | Air cooled |
| Pump Type | 2065T 2 Stage |
| Cylinders | 3 |
| Pump Head Tension | 12 FT LB 16.27NM |
| Pump Oil Capacity | 1.375L |
| Pump RPM | 1236 |
| Outlet Thread | 1/4"BSP |
| Engine Fuel Capacity | 1.9 |
| Engine Oil Capacity | 800ml 10W/40 |
Standard fitted features;
Optional extras to consider when ordering:
Delivery & Shipping
Peerless PHP15 Belt Drive Diesel Air Compressor 00111
Standard fitted features;
- Yanmar key start engine
- Conrader idle control system – USA made
- Floating top plate – Peerless design
- AS1210 approved pressure vessel – MDR report certificate available on request
- Approved safety valve – safety certificate
- 10 year tank warranty
- Stainless steel gauges (not plastic)
- Solid belt guard (not wire)
- Flexible braided outlet hose from pump
- 2 air outlets - 1 x main tank outlet, 1 x water trap regulator outlet
Optional extras to consider when ordering:
- Fuel pump – lift pump
- MDG15 Mine compliant retro box
- Wiring lumen extension (single or twin)
- Specially build to meet your requirements
The Basics
Peerless Products have a very unique design when it comes to the Diesel range of air compressors. We have a floating top plate that isn’t hard welded to the tank. We do this to assist in eliminating the vibration from the motor and the pump, limiting the vibration transfer to the air receiver reduces metal stress and less load be transferred to where it is also mounted.
This is also an advantage to the user or operator as if you would like to dismount and have the tank situated as where on a vehicle build you can separate easier at no additional cost*. You then have the option of mounting the top plate (motor and Pump) to a lower centre of gravity and then the pump can be placed under the body tray.
We use Yanmar diesel engines which are well used throughout Australia, these diesel engines also run a bit quieter than other brands in the market when comparing side by side. Key start engines are the only option we do in the diesel range. The conrader valve fits in perfectly with the Yanmar engine able to idle up and down when air demand is required, the air operated piston valve will automatically throttle up and down with the excess air not being required being vented out of the control valve.
Every Peerless Diesel build comes with the best suited water trap filter regulator fitted, being a unit that runs 0-145PSI or 0-175PSI, we have it covered so you can connect and start work. With that being said, we run and test every air compressor so that we know it will be in top working order when you receive delivery.
Performance of all our belt driven air compressors are to AS4637.
- Yanmar key start engine
- Conrader idle control system – USA made
- Floating top plate – Peerless design
- AS1210 approved pressure vessel – MDR report certificate available on request
- Approved safety valve – safety certificate
- 10 year tank warranty
- Stainless steel gauges (not plastic)
- Solid belt guard (not wire)
- Flexible braided outlet hose from pump
- 2 air outlets - 1 x main tank outlet, 1 x water trap regulator outlet
- Fuel pump – lift pump
- MDG15 Mine compliant retro box
- Wiring lumen extension (single or twin)
- Specially build to meet your requirements
Peerless 00111
| Code | 00111 |
| Model | PHP15D |
| Pump Displacement (CFM) |
15 CFM |
| Free Air Delivery (LPM) | 320 LPM |
| Max PSI | 175 |
| Engine | Yanmar L48 |
| Warranty Pump | 5 Year |
| Warranty Engine | 3 Year |
| Tank Capacity (L) | 68L |
| Pump up time to 100PSI | 1.25 - 1.30 Min |
| Dimensions (mm) / Weight (kg) | 1300Lx460Wx910H 140kg |
| Cooling Method | Air cooled |
| Pump Type | 2065T 2 Stage |
| Cylinders | 3 |
| Pump Head Tension | 12 FT LB 16.27NM |
| Pump Oil Capacity | 1.375L |
| Pump RPM | 1236 |
| Outlet Thread | 1/4"BSP |
| Engine Fuel Capacity | 1.9 |
| Engine Oil Capacity | 800ml 10W/40 |
Standard fitted features;
Optional extras to consider when ordering:
