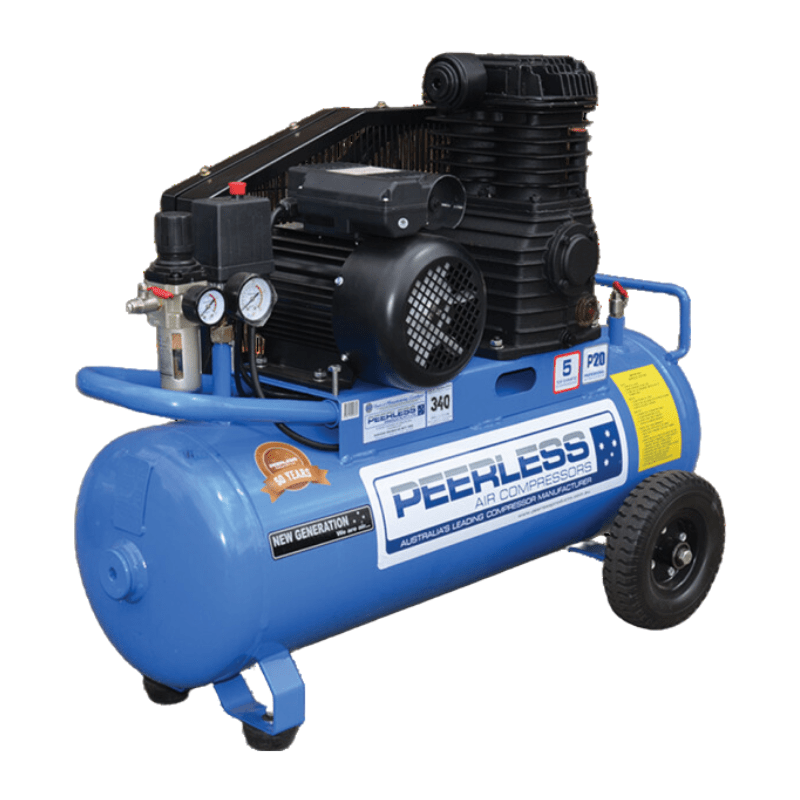

The Peerless P20 High Flow is a single phase belt drive compressor that delivers 340 litres per minute of free air, 20 litres more than the P17, which makes a real difference when running air tools. Built around a cast iron N75 pump, it comes with two outlets, one from the water trap filter regulator and one directly from the tank for full tank pressure, and rides on solid puncture proof wheels. It is backed by one of the largest warranties on the market at five years on the pump and one year on the motor, and is offered as the 55 litre P20HF and the 110 litre Fatboy.
As the biggest single phase compressor on one power line, it is important to confirm you have the correct power supply, otherwise the motor can fail. The P20 will run a wide range of tools, from spray guns, tyre inflation, stapling, framing and grease guns through to angle grinders, orbital sanders, drills, sand blasting guns and impact tools. Performance of the belt driven range is rated to AS4637.
Included accessories
Specifications
| P20HF (00007) | P20HFFB (00008) | |
|---|---|---|
| Code | 00007 | 00008 |
| Model | P20HF | P20HFFB |
| Pump Displacement | 20 CFM | 20 CFM |
| Free Air Delivery | 340 LPM | 320 LPM |
| Max PSI | 145 | 145 |
| Motor HP | 3.5 | 3.5 |
| Warranty Pump | 5 Year | 5 Year |
| Warranty Motor | 1 Year | 1 Year |
| Tank Capacity | 55L | 110L |
| Pump Up Time to 100PSI | 1.00 - 1.05 Min | 1.55 - 2.00 Min |
| Dimensions / Weight | 1050Lx430Wx770H / 85kg | 1090Lx450Wx880H / 110kg |
| Cooling Method | Air cooled | Air cooled |
| Pump Type | N75 | N75 |
| Cylinders | 2 | 2 |
| Pump Head Tension | 16 FT LB 22.4NM | 16 FT LB 22.4NM |
| Oil Capacity | 1L | 1L |
| Pump RPM | 1050 | 1050 |
| Outlet Thread | 1/4" BSP & 1/2" BSP | 1/4" BSP & 1/2" BSP |
| Electricity | 240V / 15A | 240V / 15A |
| Amps Draw | 13.3 | 13.3 |
