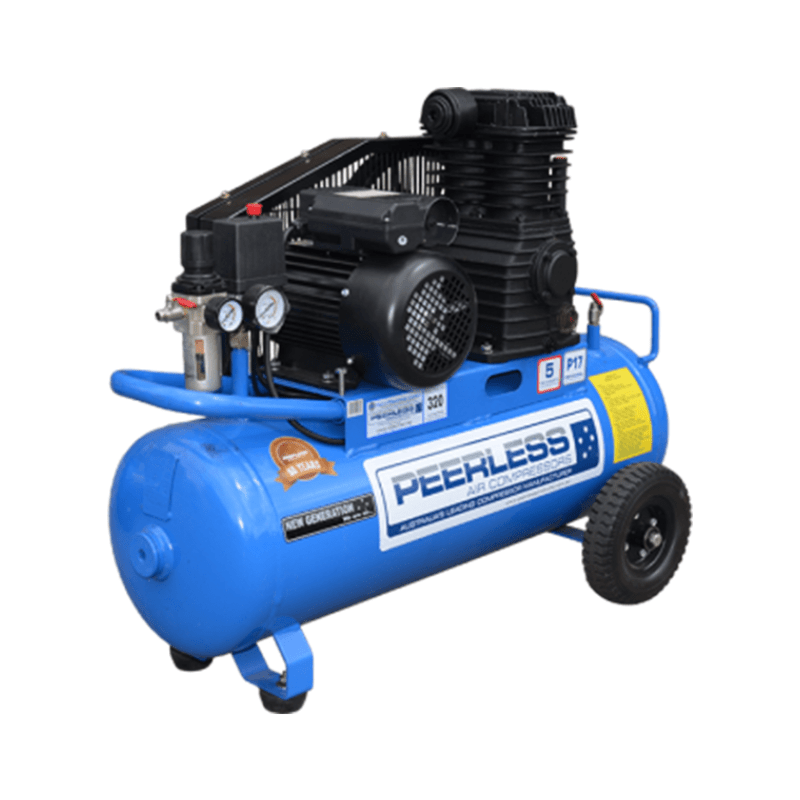

PEERLESS P17 Belt Drive Compressors
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Ultimate performance: 320L/min free air. Dual outlets: water trap filter regulator, direct tank pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.
The P17 single phase air compressor is one of the biggest machines on a 15AMP plug producing 320 litres per minute of free air delivery.
Cast iron crankcase, stainless steel valves and a slow revving pump also makes this one of the quietest on the market. Our competitors are too scared to mention their pump RPM!
Specifications
Peerless 00087
| Code | 00087 |
| Model | P17 |
| Pump Displacement (CFM) | 17 CFM |
| Free Air Delivery (LPM) | 320 LPM |
| Max PSI | 145 |
| Motor HP | 3.5 |
| Warranty Pump | 5 Year |
| Warranty Motor | 1 Year |
| Tank Capacity (L) | 55L |
| Pump up Time to 100PSI | 1.10 - 1.15 Min |
| Dimensions (mm) Weight (kg) | 1050Lx430Wx770H / 85kg |
| Cooling Method | Air cooled |
| Pump Type | N75 |
| Cylinders | 2 |
| Pump Head Tension | 16 FT LB22.4NM |
| Oil Capacity | 1L |
| Pump RPM | 963 |
| Outlet Thread | 1/4"BSP |
| Electricity | 240V / 15A |
| Amps draw | 13 |
Peerless 00380
| Code | 00380 |
| Model | P17FB |
| Pump Displacement (CFM) | 17 CFM |
| Free Air Delivery (LPM) | 320 LPM |
| Max PSI | 145 |
| Motor HP | 3.5 |
| Warranty Pump | 5 Year |
| Warranty Motor | 1 Year |
| Tank Capacity (L) | 110L |
| Pump up Time to 100PSI | 2.20 - 2.25 Min |
| Dimensions (mm) Weight (kg) | 1090Lx450Wx880H / 110kg |
| Cooling Method | Air cooled |
| Pump Type | N75 |
| Cylinders | 2 |
| Pump Head Tension | 16 FT LB22.4NM |
| Oil Capacity | 1L |
| Pump RPM | 963 |
| Outlet Thread | 1/4"BSP |
| Electricity | 240V / 15A |
| Amps draw | 13 |
Peerless 00086
| Code | 00086 |
| Model | P17FB |
| Pump Displacement (CFM) | 17 CFM |
| Free Air Delivery (LPM) | 320 LPM |
| Max PSI | 145 |
| Motor HP | 3.5 |
| Warranty Pump | 5 Year |
| Warranty Motor | 1 Year |
| Tank Capacity (L) | 110L |
| Pump up Time to 100PSI | 2.20 - 2.25 Min |
| Dimensions (mm) Weight (kg) | 640Lx500Wx1500H / 110kg |
| Cooling Method | Air cooled |
| Pump Type | N75 |
| Cylinders | 2 |
| Pump Head Tension | 16 FT LB22.4NM |
| Oil Capacity | 1L |
| Pump RPM | 963 |
| Outlet Thread | 1/4"BSP |
| Electricity | 240V / 15A |
| Amps draw | 13 |
Warranty & Maintenance Info
Brochure
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Field videos & walkthroughs.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
