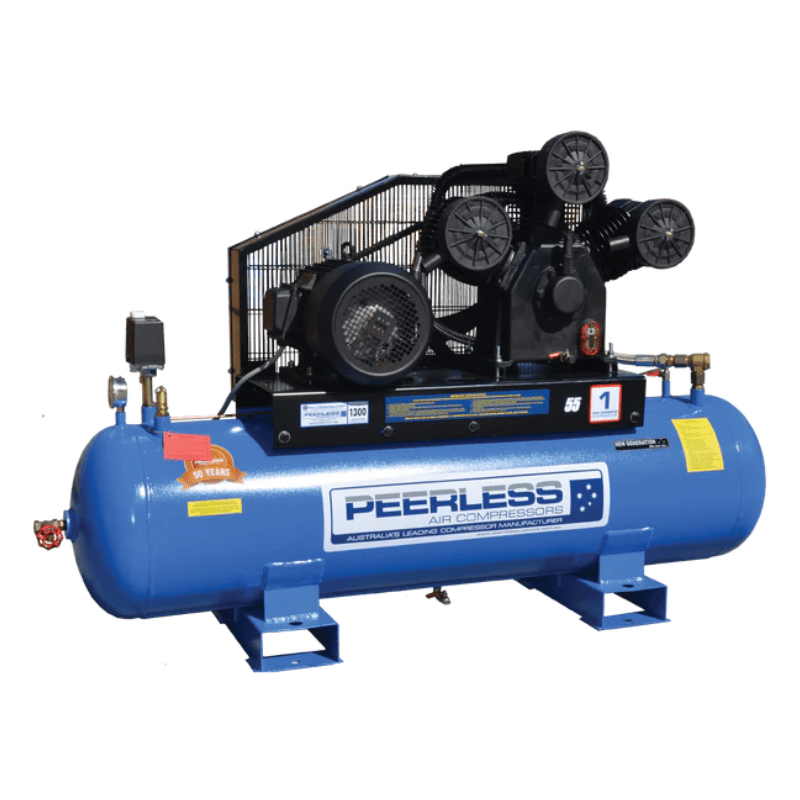

Peerless P55 Belt Drive Compressor 00136
  • Peerless P55 Belt Drive Compressor 00136
1 1

PEERLESS P55 Belt Drive Compressor 00136

SKU: 00136

PEERLESS P55 Belt Drive Compressor 00136

$8,135.00 AUD
$8,135.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Available for pre-order only. Delivery lead time to be confirmed.

Other payment options

View full details
Peerless P55 Belt Drive Compressor 00136

PEERLESS P55 Belt Drive Compressor 00136

$8,135.00 AUD
$8,135.00 AUD
Save $0
Sold out

Details

We recommend this compressor to workshops with around 5 - 6 operators and is ideal for mechanics and tyre fitters. If you require clean and dry air we have a complete range of refrigeration air dryers and inline filtration to keep your equipment in the best working order.

The air performance along with energy efficiency with variable speed technology can save your business time and money. It's all about the increased productivity, no down time and energy cost reductions. If you're unsure about what's best to suit your business, we're here to help. A Peerless specialist will tell you if it would be beneficial or not to look at the screw compressor option.

Helpful tip:

When mounting, be sure to get "high density" rubber matting and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration.
Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637.

Peerless P55 Belt Drive Compressor 00136

Overview

Performance setter: 1300L/pm @ 100PSI, if you're after large volumes of air, this is the biggest single stage compressor as a piston with a 10HP motor!

Offering a massive 1300LPM free air delivery at 100PSI the P55 High Flow is suited for applications where large quantities of air is required.

To achieve this volume of air the unit features a single stage W95 Pump. Three low pressure heads that intake large volumes of air, unlike the 2 stage pump found on a PHP52 model. Due to this trade off the P55HF is capable of producing a larger volume of air at a lower pressure with a maximum pump pressure of 145PSI.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Data Sheet Peerless Air Compressor Three Phase High Pressure PV25
  • Peerless Installation Checklist
  • Peerless Warranty Information and Registration Form
  • Peerless Maintenance Checklist
  • Peerless P55HF Three Phase Product Brochure

Specifications

Peerless 00136

Code 00136
Model P55HF
Pump Displacement (CFM) 55 CFM
Free Air Delivery (LPM) 1300 LPM
Max PSI 145
Motor HP 10
Warranty Pump 1 Year
Warranty Motor 1 Year
Tank Capacity (L) 200L
Pump up time to 100PSI 0.55 - 1.00 Min
Dimensions (mm) / Weight (kg) 1700Lx500Wx1100H / 260kg
Cooling Method Air cooled
Pump Type W95
Cylinders 3
Pump Head Tension 35 FT LB 47.45NM
Oil Capacity 2.3L
Pump RPM 949
Outlet Thread 1/4" BSP & 1/2" BSP
Electricity 415V
Amps draw 16.2
