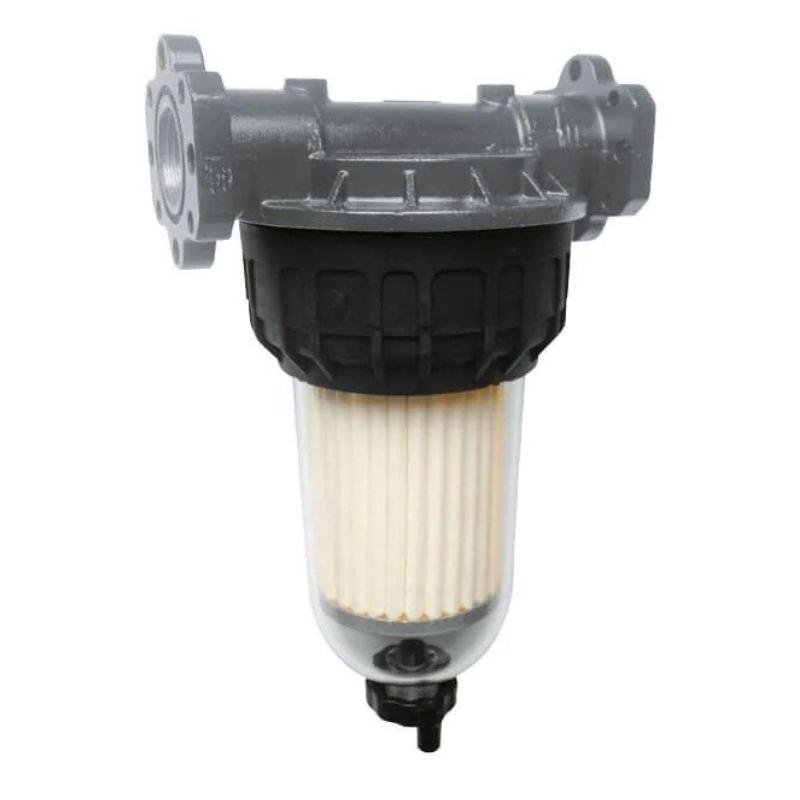

The Clear Captor filter range covers two models: F00611B00 for 5 micron particulate removal at 100 L/min, and F00611B10 for 30 micron water removal at 70 L/min. Both run a 1" BSP female inlet and outlet and are rated to 5 bar.
A clear bowl shows impurities and water collecting in the fuel, and a drain valve at the base draws them off without pulling the filter apart. Cartridges are replaceable, so a service is an element change rather than a new filter. Both models suit diesel and biodiesel, on the suction or the delivery side of the pump.
Features
- Clear bowl: The transparent container shows impurities and water collecting in the fuel, so a cartridge change is something you can see coming rather than guess at.
- Bottom drain valve: Draws off collected water and sediment without pulling the filter apart, which gets the most life out of each cartridge.
- Replaceable cartridge: The element swaps out on service, so the head and bowl stay in place for the life of the installation.
- Suction or delivery side: Can be applied on either flow direction, which suits new installs and retrofits onto existing pumps.
- Two models: 5 micron particulate removal at 100 L/min, or 30 micron water absorbing at 70 L/min.
Included accessories
Specifications
| SPECIFICATION | PARTICULATE F00611B00 | WATER F00611B10 |
|---|---|---|
| FILTRATION | 5 µm | 30 µm |
| FILTRATION EFFICIENCY | β 2 | β 200 |
| WATER ABSORBING | No | Yes |
| FLOW RATE | 100 L/MIN | 26.4 GPM | 70 L/MIN | 18.5 GPM |
| INLET / OUTLET | 1" BSP F | 1" BSP F |
| MAX OPERATING PRESSURE | 5 BAR | 72.5 PSI | 5 BAR | 72.5 PSI |
| FLUIDS | Diesel, biodiesel | Diesel, biodiesel |
| DIMENSIONS | 171 MM W x 270 MM H | 171 MM W x 270 MM H |
| PACKAGED WEIGHT | 2.3 KG | 5.07 LB | 2.0 KG | 4.41 LB |

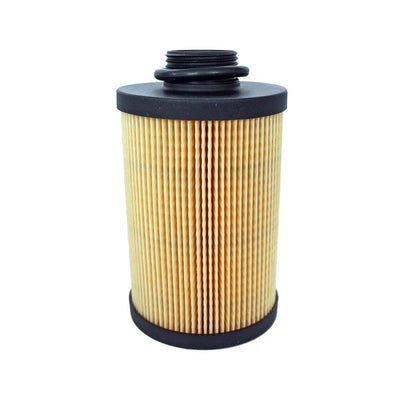

| REPLACEMENT ELEMENT | F00611030 | F00611040 |
Installation

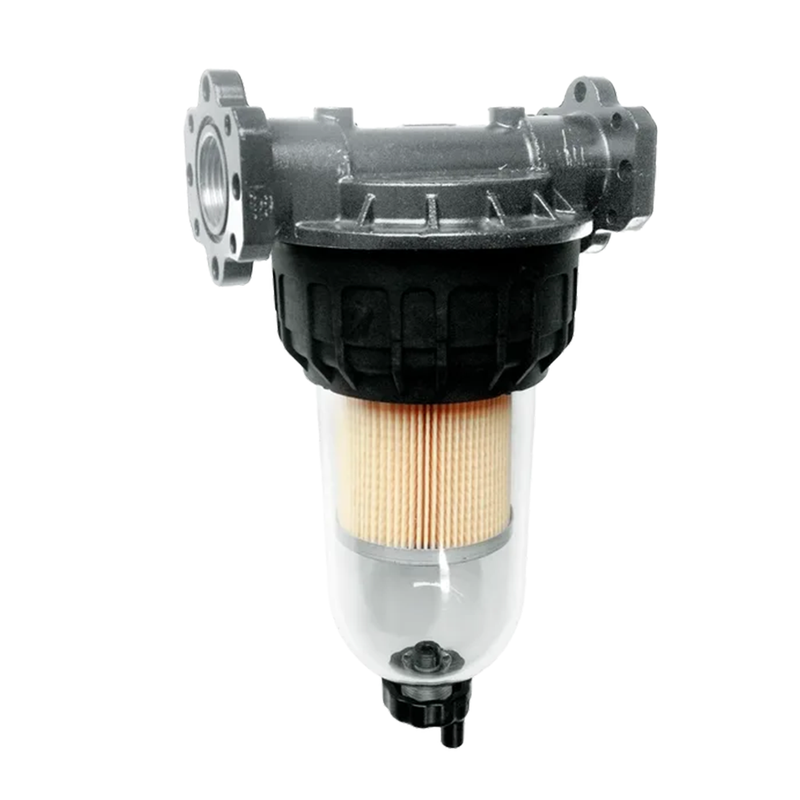

- Dual stage filtration: Mount the particulate filter F00611B00 upstream of the water filter F00611B10, so bulk solids are caught before they reach the water absorbing element.
- Flow direction: Can be fitted on either the suction or the delivery side of the pump.
- Connections: 1" BSP female inlet and outlet on both models.
- Servicing: Drain collected water and sediment through the valve at the base of the bowl, and change the cartridge when flow starts to drop off.
