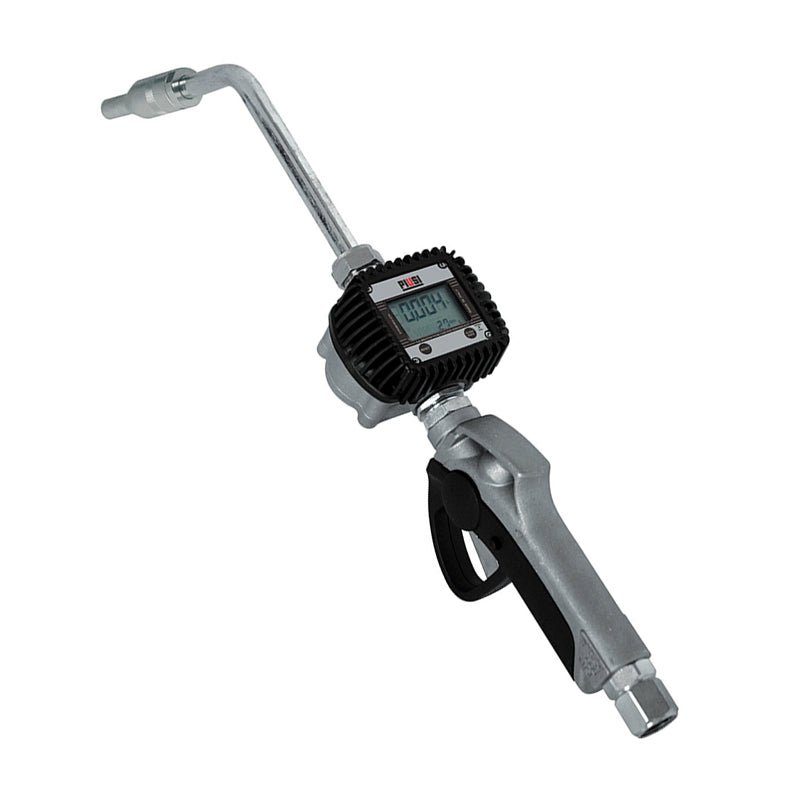

PIUSI Easy K400 Nozzle with Digital Meter
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Nozzle with electronic meter. The K400 can be integrated with nozzle to create a handy, ergonomic instrument for controlling and managing oil delivery. Meter body in aluminium to withstand high pressure.
The PIUSI EASY K400 is the perfect synthesis for all the needs of transferring and measuring oils. It is composed by the ergonomic EASY OIL nozzle and the K400 meter
Model
- F00984000: Easy K400 1/2" BSP w/ Rigid Spout HP
Features
- Digital Metering: A 5-figure resettable partial total and a 7-figure cumulative total, so both the job and the stock figure are covered.
- Half A Percent Accuracy: Meters to +/- 0.5% with 0.2% repeatability, which is accurate enough to bill from.
- Oval Gear Measuring: An acetal resin oval gear system that handles oil from 2 up to 2000 cSt.
- Standard AAA Batteries: No proprietary cell to source when it goes flat.
- Easy Inspection: Designed to be opened, checked and put back together without special tools.
Specifications
| MAXIMUM FLOW RATE | 1 TO 30 L/MIN | 0.26 TO 7.8 GPM |
|---|---|
| WORKING PRESSURE | 70 BAR | 994 PSI |
| BURSTING PRESSURE | 200 BAR | 2900 PSI |
| ACCURACY | +/- 0.5% |
| REPEATABILITY | 0.2% |
| VISCOSITY RANGE | 2 TO 2000 cSt |
| MEASURING SYSTEM | Oval gears, technopolymer |
| DISPLAY | 5-figure resettable partial total, 7-figure cumulative total |
| BATTERY | 2 x AAA 1.5 V |
Data Sheet
