Features

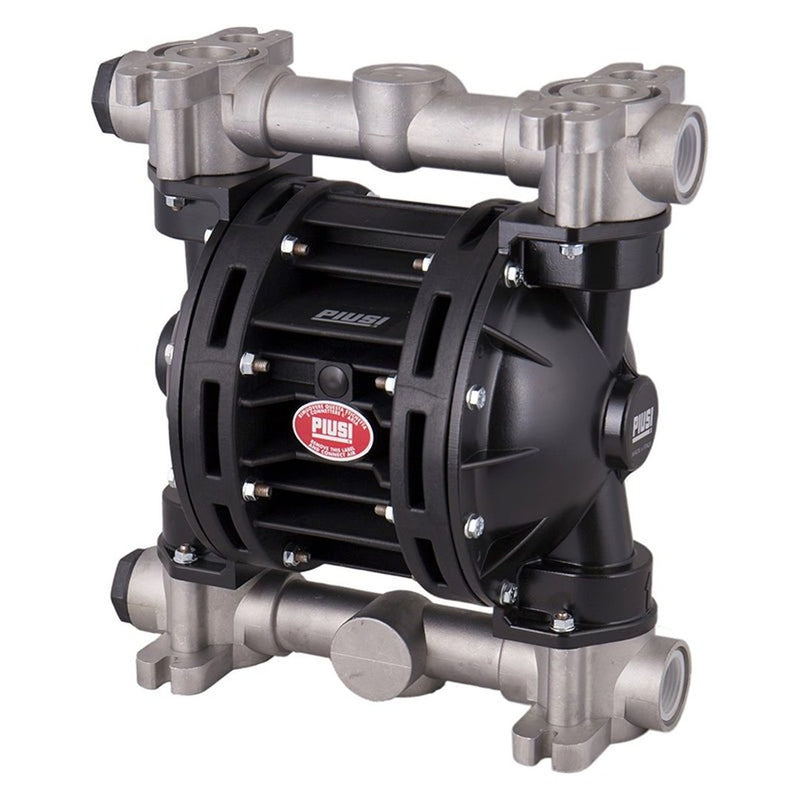

Piusi MA 180 Air-Operated Diaphragm Pump for Oil

Overview

PIUSI MA 180 is a pump for transferring oil. From the unceasing commitment to studying new systems for the transfer of fuels and fluids, PIUSI manufactures the line PIUSI MA in the versions 130, 140, 180, 190.

The PIUSI MA 180 air-operated diaphragm pump for oil is designed to guarantee maximum safety and high performance. A wide range of materials and parts characterize the air-operated oil transfer pumps and make them suitable for various sectors such as the industrial, food and pharmaceutical ones.

A RELIABLE WORK PARTNER

The PIUSI MA 180 air-operated diaphragm pump for oil has a sturdy central body, side half-shells and suction and delivery manifolds in aluminum. The diaphragms that make up the air-operated diaphragm pump, instead, are in high quality NBR and guarantee the transfer of high viscosity oil, even if there are solid parts in suspension, as can happen with used oil.

The PIUSI MA 180 diaphragm pump falls within the category of vacuum pumps in which the change in volume results from the oscillation of a diaphragm that closes one side of a chamber. This solution has the advantage of the waterproofing obtained by eliminating any sliding between parts.

The excellent operation of the PIUSI MA 180 oil transfer pump is guaranteed by its pneumatic circuit; its construction principle makes it specifically suitable for applications in heavy-duty conditions.

HIGH PERFORMANCE

The PIUSI MA 180 oil transfer pump has a flow rate of up to 150 l/min and its self-priming function makes it safe from any possible damage in case of dry-running. Further, it allows precise speed adjustment without pressure loss.

Data Sheets
Piusi F00208A00 MA 130 Datasheet - GO Industrial
Piusi F00208A10 MA 180 Datasheet - GO Industrial

Features

• In/Out Interchangeable
• Long Life Diaphragm
• Built-in Diffuser
• Suitable for Immersed Installations
• Heavy Duty
• Study Design
