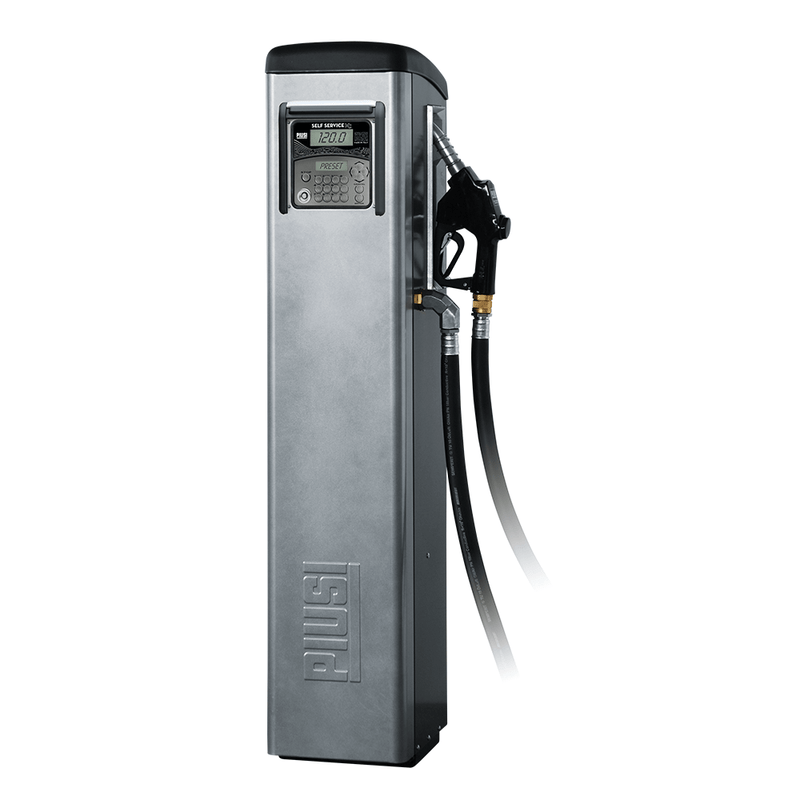

FMS PIUSI 240V AC Self Service MC
Piusi Self Service 100 MC F 80 users F0074101D
Piusi Self Service 100 MC F 80 users F0074101D Display

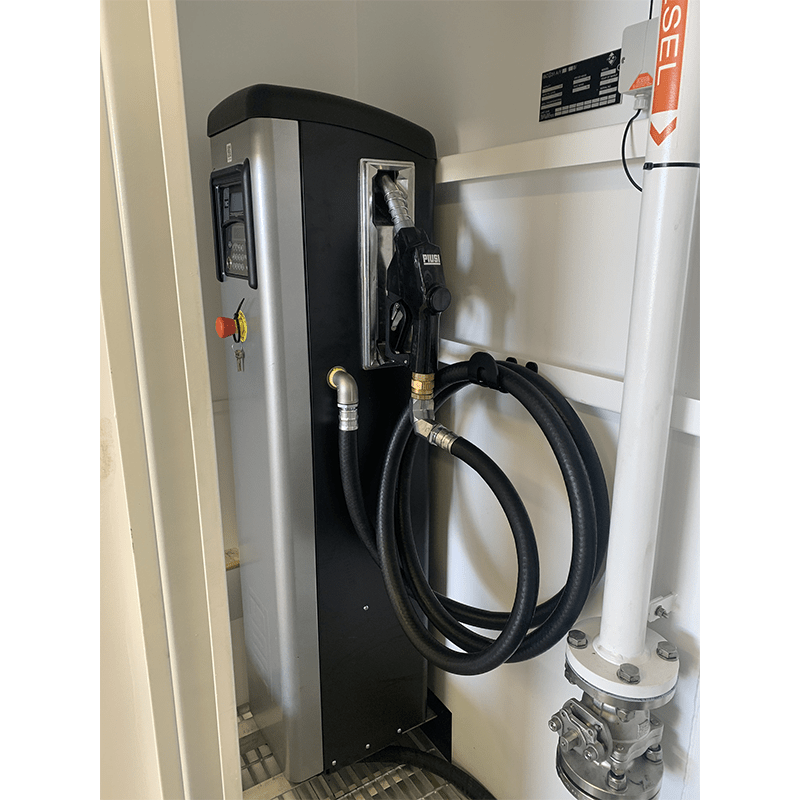

Piusi Self Service 100 MC F 80 users F0074101D fitted to STORE Self Bunded Tank
  • FMS PIUSI 240V AC Self Service MC
  • Piusi Self Service 100 MC F 80 users F0074101D
  • Piusi Self Service 100 MC F 80 users F0074101D Display
  • Piusi Self Service 100 MC F 80 users F0074101D fitted to STORE Self Bunded Tank
1 5

At a Glance

  • Integrated, plug and play, Dispensing and Electronic Fluids Management Console for use with Diesel.
  • Low cost, yet feature packed, electronic fluids management system
  • 90lpm dispensing via 4m x 25mm ID Hose and Auto Nozzle
  • Provides control over dispensing of liquids and reports on the date / time / volume of liquid dispensed, the vehicle details and operator details
  • PC based software with USB on site data transfer
  • Additional purchase code PIUSI-SOFTWARE-BUNDLE provides the required PC Based Software, Red Data Download / Managers Key, 10 x Yellow User Keys and a PC USB Interface.
  • Cost effective upgrade to an existing dispensing system to provide security and electronic reporting of fuel dispensed
  • Up to 80 users
  • Memory for 255 transactions
  • GO Data Sheet Piusi FMS Self Service MC
  • GO Data Sheet Piusi FMS SSM 2018 Software
  • GO Manual Piusi FMS Self Service MC
  • GO Manual Piusi FMS Self Service MC Console Software
  • GO Manual Piusi FMS Self Service MC Ground Fixing Template
  • GO Manual Piusi Pump E80 E120
  • GO Manual Piusi Meter K600
  • GO Manual Piusi FMS SSM 2018 Software
  • GO Parts Piusi FMS Self Service MC
  • Package Size - 488mm L x 460mm W x 1478mm H - 75kg
  • Console Size (with nozzle fitted) - 457mm L x 368mm W x 1387mm H
  • Power - 240V AC 50hz 1100W 5.5 amps
  • Maximum Power Supply - 6.5 amps
  • Number of Users - 80
  • Transaction Memory - 255
  • Suitable for use with Diesel
  • Pump Type - Piusi E120
  • Filter Type - Piusi Water Captor 30um
  • Pulse Meter Type - Piusi K600
  • Hose - 25mm ID x 4m
  • Accuracy - +/- 0.5%
  • Nozzle Type - Piusi A120 Automatic Shut Off
  • Integrated roller shutter to provide sun protection to the screen and pin pad assembly
  • Console interfaces include:
    • External Nozzle Switch
    • Automatic Tank Gauge
    • Pulse Meter Input
    • Pump Relay
  • The Piusi Self Service MC will:
    • Authorise dispensing of fluids to approved users
    • Authorisation can be via a PIN or Yellow User Key (i Button)
    • Record the date / time / volume of fluid dispensed, the user details, vehicle details suxch as number plate (system accepts up to 10 alphanumeric characters) and odometer / engine hours (system accepts up to 6 numeric characters)
    • Allow for the dispensing of preset volumes of fluid
    • Operate an external nozzle switch
    • Manage a relay that will turn off the pump in the event of minimum level in the tank
  • Data can be downloaded using one of the following methods
    • i Button - Red Managers Key i Button that interfaces with a USB Key Reader to your site PC
    • Direct PC Connection - RS Converter with USB Plug for direct PC connection.  The maximum distance of the PC from the Console is 1000m for direct connection
    • Printer - A Printer can be connected using a RS Converter



    pagination here

FMS PIUSI 240V AC Self Service MC

SKU: F0074101D

FMS PIUSI 240V AC Self Service MC

$5,332.00 AUD
$5,332.00 AUD $6,006.00 AUD
Save $674
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

The PIUSI Self Service MC, from GO Industrial, is a simple, plug and play, cost effective, integrated dispensing and electronic fluids management system that allows Fleet Managers to control and record the dispensing of diesel on site.  The integrated 240V AC Pump provides 90lpm dispensing and 30um Water Removal Filtration via the supplied 25mm ID x 4m Hose and Auto Shut Off Dispensing Nozzle.

The Piusi MC is designed for for small and medium sized businesses that use their own tanks for refuelling their work vehicles with diesel.  Authorisation to access fuel is via with a PIN or Yellow User Key.  Up to 80 users can be authorised to use this facility.


Customers also purchased

Piusi Self Service Bundle

FMS PIUSI SOFTWARE Bundle

$1,474.00 AUD
$1,474.00 AUD
Piusi OCIO Automatic Tank Gauge F0075510D

Piusi OCIO Automatic Tank Gauge F0075510D

$884.00 AUD
$884.00 AUD

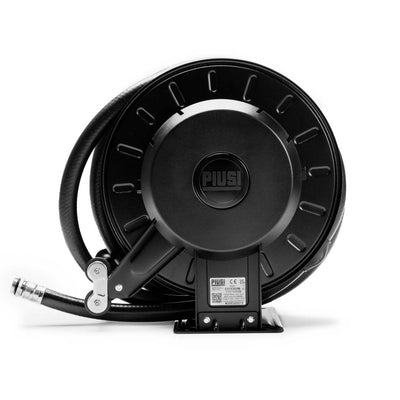

Piusi Hose Reel 1" x 10m Diesel F0075003B
