ADAM BY PIUSI Pump 240V AC KIT 100lpm

SKU: DT1004JAUSM11

ADAM BY PIUSI Pump 240V AC KIT 100lpm

$1,925.00 AUD
$1,925.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
tags

Found a better deal elsewhere?

Message us to price match.

close

Price Match Request

Upload Screenshot / Image

your image
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.

Other payment options

View full details
Adam by Piusi Pump 240V AC KIT 100lpm DT1004JAUSM11

ADAM BY PIUSI Pump 240V AC KIT 100lpm

$1,925.00 AUD
$1,925.00 AUD
Save $0
Sold out

Details

Pump Information

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the PA2 240V 100lpm Pump, from GO Industrial, features a self-ventilated single phase, continuous duty  motor with IP55 protection, class F insulation and thermal overload protection engineered into the electric motor.

Filter Information

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the FT10XA Filter Kit, from GO Industrial, provides 30um Particulate and Water Filtration and is suitable to use in a diesel dispensing application up to 100lpm.  This filter kit features a Saturation Level Indicator Pressure Gauge.

Meter Information

The TF4S1 4 Digit Mechanical Meter, from GO Industrial, is supplied with nutating disk for the high precision measurement of diesel fuel. The Meter is fitted with a totaliser, a counter, and a side knob for resetting the counter.  The fuel outlet direction can be adjusted according to the application at hand.  The Meter is also fitted with a calibration screw for precision adjustment. The meter can be mounted on electric pumps or used in gravity applications.

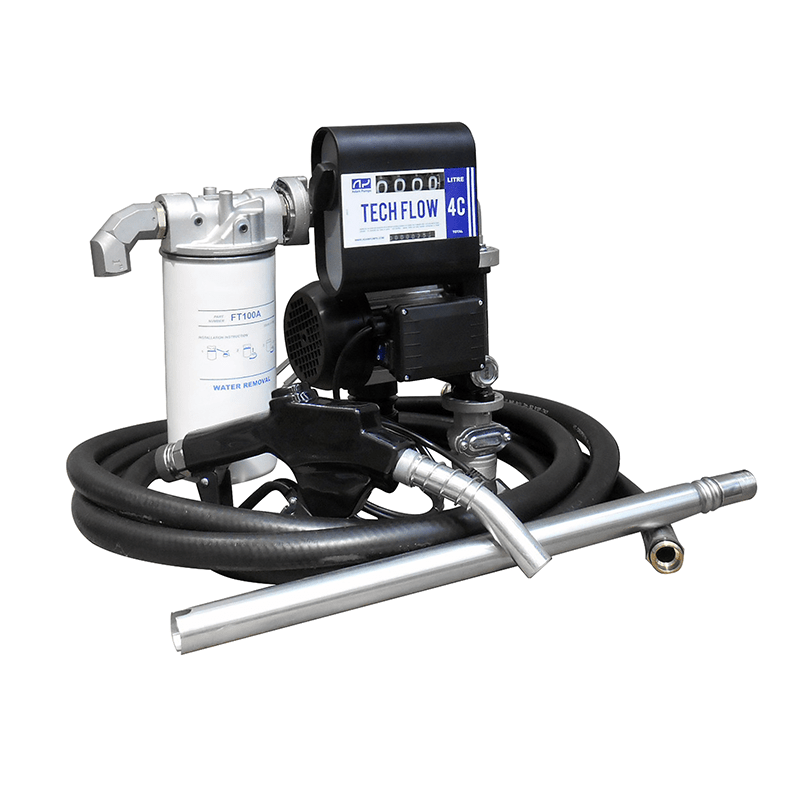

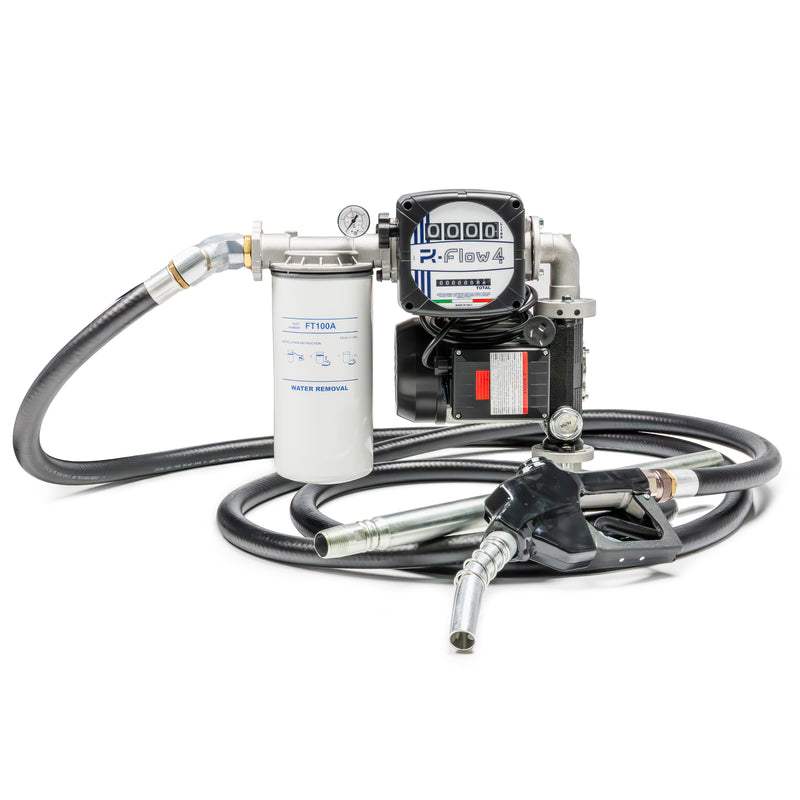

What's in the Box ?

  • SUCTION SPEAR: Telescopic Suction Spear and Drum / Tank Adaptor,
  • PUMP: 240V AC 100lpm PA2 Pump,
  • FILTER: FT10XA Particulate / Water Filter with pressure gauge,
  • METER: 4 Digit Mechanical Meter,
  • HOSE: 6m x 25mm ID Hose Scr Male BSP Ends,
  • SWIVEL: Dual Plane Swivel,
  • NOZZLE: Auto Shut Off Nozzle

Features

Pump

  • Self-priming vane pump
  • Cast iron body
  • Sintered steel impeller
  • Acetal resin vanes
  • Integrated by-pass valve
  • Integrated stainless steel filter
  • Easily accessible ON-OFF switch,
  • Self-ventilated single phase motor
  • Thermal overload protection engineered into the electric motor
  • Continuous duty design.

Filter

  • Flow Direction Cast on the Housing
  • Saturation Level Indicator Pressure Gauge

Adam by Piusi Pump 240V AC KIT 100lpm

Overview

Designed and manufactured by Adam Pump, a Piusi group company, in Italy.  This Plug and Play Pump Kit is designed for the dispensing of diesel from Self Bunded Tanks, Single Wall Tanks and Drums.

This 240V AC kit will reliably dispense diesel at an end of nozzle flow rate of 100lpm.


Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Data Sheet METER TF4S1 4 Digit Mechanical 25mm 20-120lpm Litre Display
  • GO Data Sheet PUMP 240V AC 100lpm PA2 150lpm PA3
  • GO DATA SHEET Adam by Piusi Pump 240V AC Kit 100lpm DT1004JAUS
  • GO Data Sheet PUMP 240V AC PA1 PA2 PA3 Detailed
  • GO Manual Adam Piusi PA2 PA3
  • GO Manual Adam Piusi TF4S1
  • GO Manual Piusi E300

Specifications

Pump

  • 240V AC - 4.1 amp
  • Package Dimension: 290mm x 190mm x 250mm - 13.5kg
  • IP55 protection
  • Class F insulation
  • Flow Rate: 100 l/min
  • Input/Output: DN25 (1”) F BSP
  • Suitable for use with diesel fuel

Filter

  • DN25 (1") Female BSP Inlet and Outlet
  • 30um Particulate and Water Removal
  • Flow Rate up to: 100lpm
  • Package Size: 290mm L x 190mm H x 250mm W - 2.5kg

Meter

  • Made in Italy by Adam Pump, a Piusi Group Company
  • Partial: 4-digit
  • Total: 8-digit
  • Flow Rate: 20-120 l/min
  • Input/Output: DN25 (1") F BSP
  • Precision: ± 1 %

    Features

    Pump

    • Self-priming vane pump
    • Cast iron body
    • Sintered steel impeller
    • Acetal resin vanes
    • Integrated by-pass valve
    • Integrated stainless steel filter
    • Easily accessible ON-OFF switch,
    • Self-ventilated single phase motor
    • Thermal overload protection engineered into the electric motor
    • Continuous duty design.

    Filter

    • Flow Direction Cast on the Housing
    • Saturation Level Indicator Pressure Gauge
