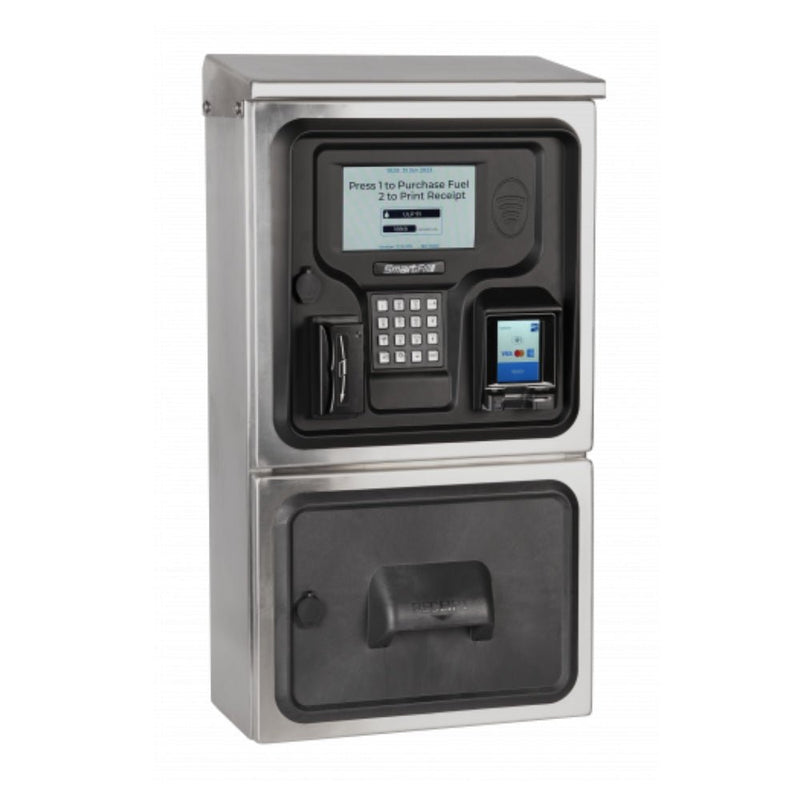

SmartFill GEN 3 OPT Outdoor Payment Terminal
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Designed for unattended applications especially in harsh climates.
The world's most functional Fuel Management System meets the easiest to install, use and operate Outdoor Payment Terminal.
Overview
The SmarFill GEN 3 Outdoor Payment Terminal (OPT) enables you to easily sell fuel at sites that are unattended, like truck stops, small retail stores and service stations after hours. It is easy to install, and it has a large display and intuitive on-screen menus that make it easy to use.
It supports all major credit and debit cards like Visa and Mastercard, so people can pay with PayWave, Apple Pay or Android Pay. It also recognises account cards and SmartFill NFC fobs.
Fully EMV Compliant
With EMV compliance, merchant funds are guaranteed, with no chargebacks from VISA or Mastercard.
Easy To Use, Easy To Set Up
Configuring the unit is menu based, eliminating the need to enter excessively long codes or numbers.
Smart On The Inside
Easy to service the unit with plug and play modules. Each is clearly marked and can only fit in one place. No need for special technical or electrical skills.
Multiple Payment Methods
Accepts all major credit cards, Apple Pay and Google Pay.
Tough On The Outside, Bullet-Proof Construction
An IP66 rated, 316 Grade stainless steel enclosure ensures continuous operation in all conditions.
Enhanced Security
Access to fuel by a vehicle and/or driver can be restricted by time (such as from 9am to 5pm) and/or volume (such as a maximum of 2,000 litres).
Specially Designed For
- Truckstops
- Retail Forecourts
- Marinas
- Aviation
- On Tank Applications
Features
Features
- Simple, secure connection over 3G/4G network or Ethernet connection (NBN broadband)
- Designed for tank mounting or free standing (using optional pedestal)
- Connects to range of pumps – Compac, Gallagher, Gilbarco, Wayne and other popular brands
- Direct pump control for bulk fuelling and applications where a bowser is not used View your sales data in tabular form or on a graphical dashboard
- Full support for automatic tank gauging systems including SmartDip
- Easy to use large graphical user interface
- Change pump prices remotely
- UPS, so transactions are not lost on a power failure
Specifications
- Size and Weight: H 700mm (1700mm with pedestal) x W 400mm x D 200mm, 25kg
- Display: 7″ Blanview TFT LCD Display
- Printer: Thermal printer, 58mm-60mm wide roll
- Payment Hardware: Ingenico Self/5000 Payment Terminal, PCI PTS 5.x compliant
- Payment Acceptance: Visa, Mastercard, Amex, Account/white cards (optional), Apple Pay, Google Pay and SmartFill cards and fobs
- Power Battery: 90 VAC (0.38A) – 250 VAC (0.15A), Battery 24V 29WH
- Supported Fuel Pumps: Compac, Gilbarco,Gallagher, TT, Wayne and other popular brands
- Communications: 3G/4G or wired Ethernet
- Operating Temperature: -40ºC to 55ºC
- Mounting Options: Tank or wall mounted (mounting kit provided). Optional pedestal
- Construction: Powdercoated galvanised steel (Optional 316 grade stainless steel)
- Installation Requirement: To be installed in non-hazardous zone as defined in AS-NZ-60079.10.1-2009 Explosive atmospheres – Classification of areas
