Stellair Automatic Air Spray Gun Conventional 25F173
Skip to product information
1 of 1
  • Graco Manual Instruction Stellair Auto Air Spray Gun 407194EN-D
  • Graco Brochure Stellair Automatic Air Spray Guns for Liquid Finishing 345208EN-A
BODY MATERIAL Metal
COMPATIBLE MATERIAL Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne
FLUID ORIFICE SIZE (IN) 0.070
FLUID ORIFICE SIZE (MM) 1.8
GUN TYPE HVLP Gun
GUN WEIGHT (G) 430
GUN WEIGHT (LB) 1
MAXIMUM AIR PRESSURE (BAR) 7
MAXIMUM AIR PRESSURE (PSI) 100
MAXIMUM FLUID TEMPERATURE (°C) 49
MAXIMUM FLUID TEMPERATURE (°F) 120
MINIMUM AIR INLET PRESSURE (BAR) 3.4
MINIMUM AIR INLET PRESSURE (PSI) 50
OVERALL HEIGHT (IN) 1.9
OVERALL HEIGHT (MM) 48.3
OVERALL LENGTH (IN) 5.10
OVERALL LENGTH (MM) 129.5
OVERALL WIDTH (IN) 1.63
OVERALL WIDTH (MM) 41.4
APPLICATION General
TYPE Auto Gun
APPLICATOR TYPE Automatic
NEEDLE TIP MATERIAL PEEK
FLUID ADJUSTMENT KNOB N/A
SOUND POWER LEVEL (DB(A)) 89.7
SOUND PRESSURE LEVEL (DB(A)) 79.79
MAXIMUM FLUID WORKING PRESSURE (PSI) 300
MAXIMUM FLUID WORKING PRESSURE (MPA) 2.1
MAXIMUM FLUID WORKING PRESSURE (BAR) 21
MAXIMUM FLOW RATE (OZ/MIN) 20
MAXIMUM AIR PRESSURE (MPA) 0.7
MINIMUM AIR INLET PRESSURE (MPA) 0.34
GUN MODEL Stellair
MANIFOLD TYPE Not Included
NOZZLE SIZE (IN) 0.070
NOZZLE SIZE (MM) 1.8
GUN_SERIES Automatic
  • The high volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
  • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
  • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
  • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
  • Its small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
  • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

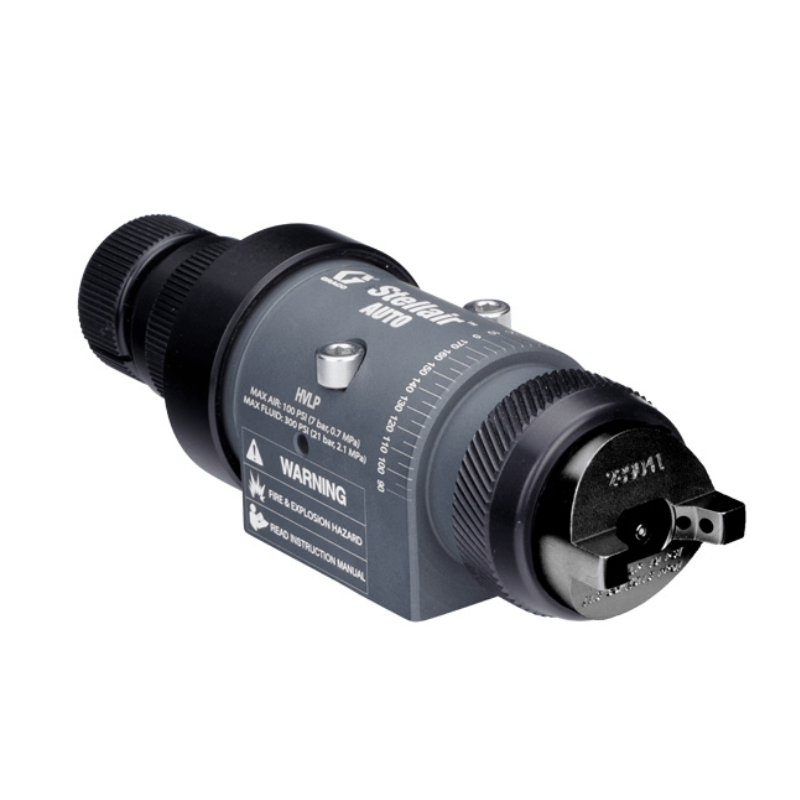

Graco Stellair Automatic Air Spray HVLP Gun 25F173

SKU: 25F173

Graco Stellair Automatic Air Spray HVLP Gun 25F173

Regular price $1,705.00 AUD
Sale price $1,705.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

The high volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.

The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.

  • Graco Manual Instruction Stellair Auto Air Spray Gun 407194EN-D
  • Graco Brochure Stellair Automatic Air Spray Guns for Liquid Finishing 345208EN-A
BODY MATERIAL Metal
COMPATIBLE MATERIAL Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne
FLUID ORIFICE SIZE (IN) 0.070
FLUID ORIFICE SIZE (MM) 1.8
GUN TYPE HVLP Gun
GUN WEIGHT (G) 430
GUN WEIGHT (LB) 1
MAXIMUM AIR PRESSURE (BAR) 7
MAXIMUM AIR PRESSURE (PSI) 100
MAXIMUM FLUID TEMPERATURE (°C) 49
MAXIMUM FLUID TEMPERATURE (°F) 120
MINIMUM AIR INLET PRESSURE (BAR) 3.4
MINIMUM AIR INLET PRESSURE (PSI) 50
OVERALL HEIGHT (IN) 1.9
OVERALL HEIGHT (MM) 48.3
OVERALL LENGTH (IN) 5.10
OVERALL LENGTH (MM) 129.5
OVERALL WIDTH (IN) 1.63
OVERALL WIDTH (MM) 41.4
APPLICATION General
TYPE Auto Gun
APPLICATOR TYPE Automatic
NEEDLE TIP MATERIAL PEEK
FLUID ADJUSTMENT KNOB N/A
SOUND POWER LEVEL (DB(A)) 89.7
SOUND PRESSURE LEVEL (DB(A)) 79.79
MAXIMUM FLUID WORKING PRESSURE (PSI) 300
MAXIMUM FLUID WORKING PRESSURE (MPA) 2.1
MAXIMUM FLUID WORKING PRESSURE (BAR) 21
MAXIMUM FLOW RATE (OZ/MIN) 20
MAXIMUM AIR PRESSURE (MPA) 0.7
MINIMUM AIR INLET PRESSURE (MPA) 0.34
GUN MODEL Stellair
MANIFOLD TYPE Not Included
NOZZLE SIZE (IN) 0.070
NOZZLE SIZE (MM) 1.8
GUN_SERIES Automatic
  • The high volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
  • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
  • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
  • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
  • Its small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
  • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
