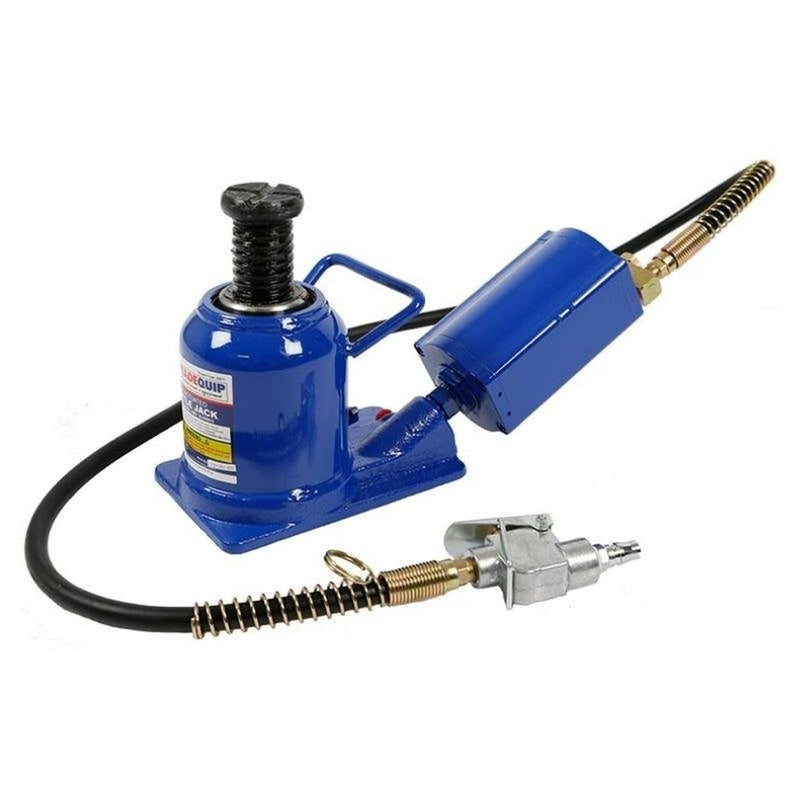

This TradeQuip air/hydraulic low profile bottle jack is designed to operate pneumatically, providing enough lifting power for farm vehicles, heavy machinery, industrial construction equipment and other large loads. Rated to 20,000kg, it runs on a 100 to 145 PSI air supply and its low profile design gets you out of tight situations with ease. A chrome plated ram and a built-in by-pass device protect the hydraulic system from over-pumping, while a knurled, heat-treated pad with screw height adjustment lets you fine-tune the lift. A safety overload valve gives added protection. Always chock the vehicle wheels and support the load with Jack Support Stands; never get beneath a vehicle supported only by a jack.
Features
Chrome ram: Chrome plated ram
Overload protection: Built-in by-pass device protects the hydraulic system from over-pumping
Quick connector: Quick connector allows easy removal of the air hose for compact storage or remote operation
Air turbo motor: Compact yet powerful air turbo motor
Included accessories
Specifications
| Safe Working Capacity | 20,000kg |
|---|---|
| Minimum Height | 148mm |
| Maximum Height | 259mm |
| Hydraulic Stroke | 66mm |
| Screw Extension Height | 45mm |
| Operating Air Pressure | 100-145psi |
| Base Area | 201 x 135mm |
