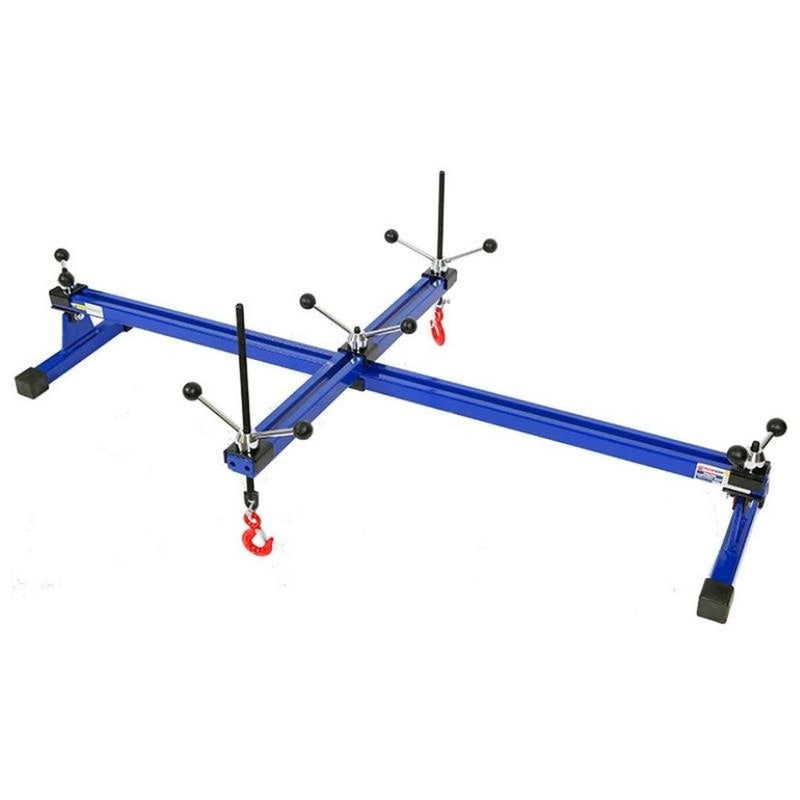

This TradeQuip transverse-mounted engine support bar holds an engine or transmission in place during repairs, using a two angle chain hook for safer, more stable chain support. A fully adjustable four point mounting system provides a stable platform across most vehicles, and eight rubber padded legs prevent slipping and protect the car's finish. Rated to 500kg and finished in high gloss enamel for long life, the dual hook design and four points of support add stability, flexibility and safety across different vehicle types.
It suits both transverse and longitudinally mounted engines. For even load support, make sure chains are hooked to both sides of the hook. A chain is not included.
Features
Cross Bar: Cross bar for improved stability and more flexibility.
Dual Hooks: Dual hook assemblies for balanced support.
Adjustable Fit: Adjustable to fit across most car bonnets.
Repair Support: Supports the engine or transmission in place during repairs.
Padded Legs: Extra long rubber cushioned support legs prevent damage to paint.
Enamel Finish: High gloss enamel finish.
Load Leveling: Adjustment screws for load leveling.
Included accessories
Specifications
| Safe Working Capacity | 500kg |
|---|---|
| Minimum Extension | 1020mm |
| Maximum Extension | 1630mm |
| Nett Weight | 23kg |
| Carton | 1730 x 180 x 80mm |
| Gross Weight | 24kg |
