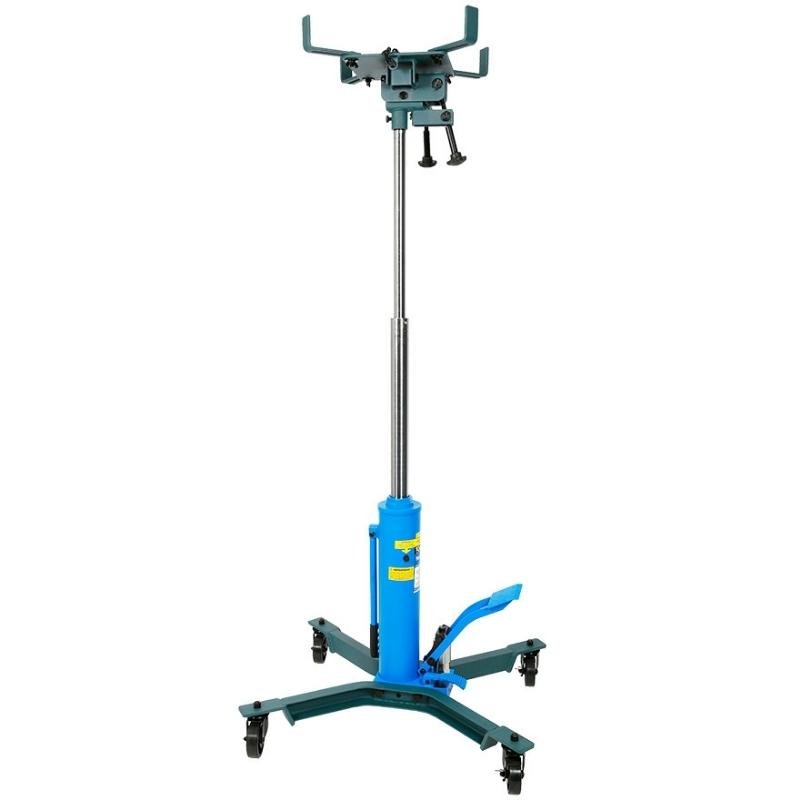

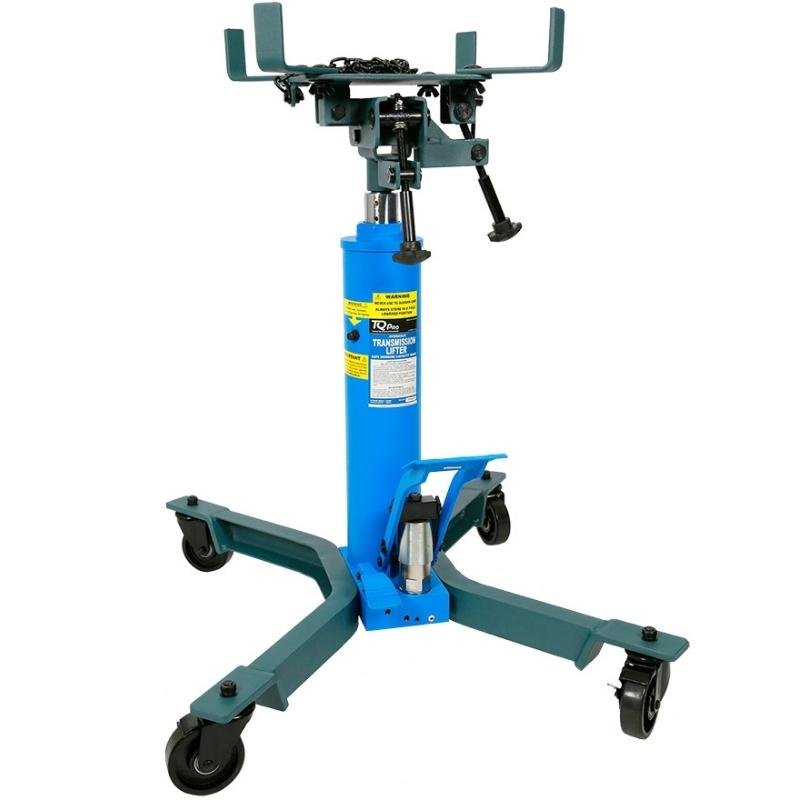

This TQ Pro two-stage hydraulic telescopic transmission lifter is designed to lift, lower and transport passenger car transmissions and to help increase workshop productivity. The universal mounting platform provides a wide four-way tilt range to get the load into the perfect position, and the wide base rides on four premium nylon swivel castors that turn a full 360 degrees for safer manoeuvring around the workshop.

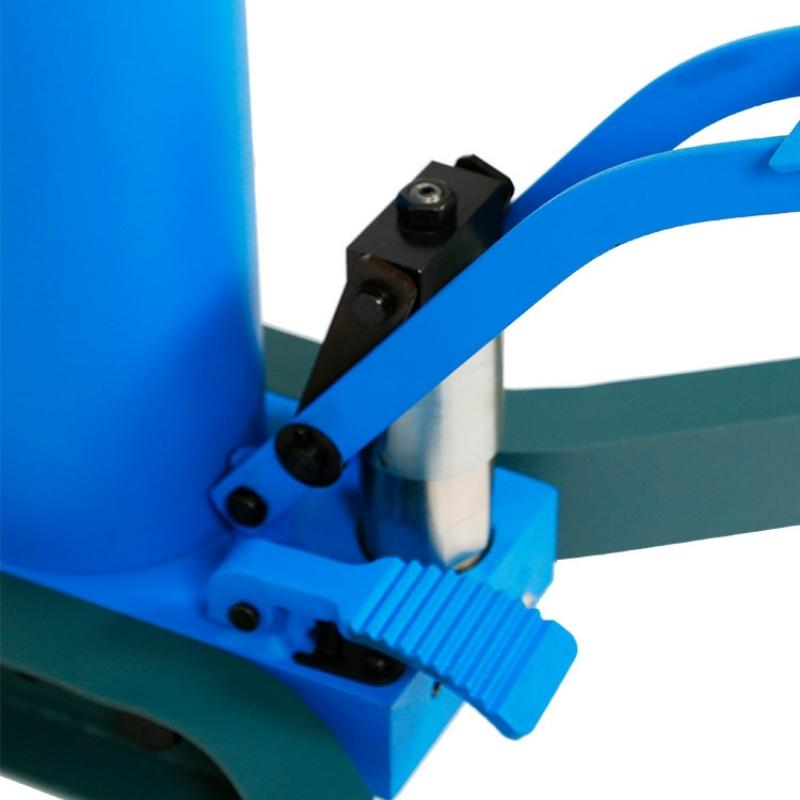

Rapid lift without load and slow descent with load are controlled through the foot-operated pump and release valve, keeping the mechanic's hands free during use. Built with CNC technology, the chassis and frame are constructed from superior-grade steel to exacting standards for professional quality and durability, making it suited to transmission installation or removal on vehicles raised by an in-ground or above-ground lift.
Features
Purpose Built: Designed for lifting and lowering passenger car transmissions.
CNC Construction: Chassis and frame built from superior-grade steel using CNC technology to exacting professional standards.

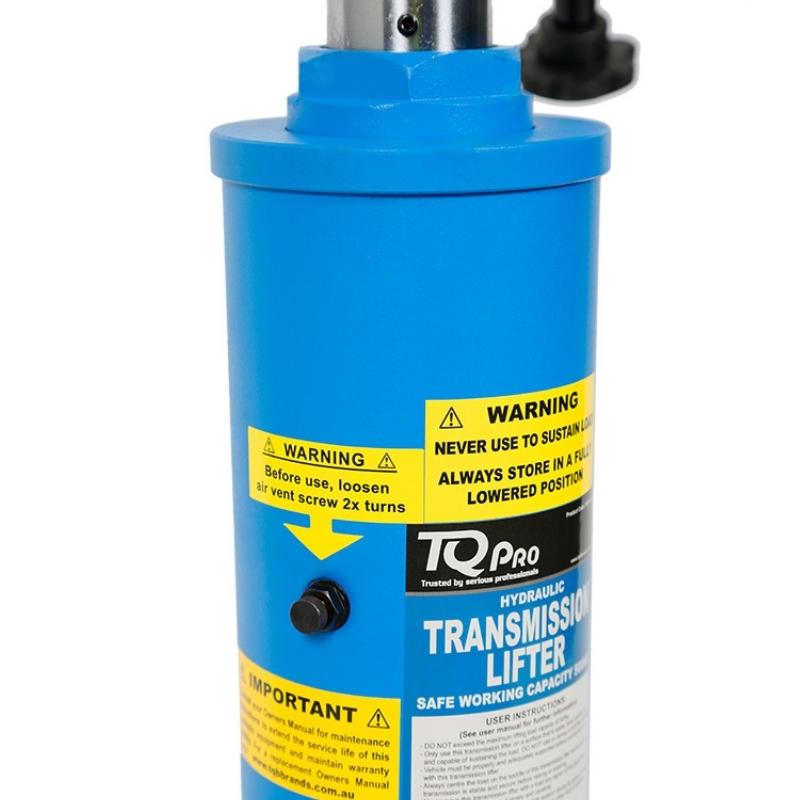

Hydraulic Cylinder: Large diameter hydraulic steel cylinder with precision tolerances and in-ram bleeding and lubricating mechanism.
Polished Ram: Piston-ram is treated and polished to minimise wear and extend service life.
Dual O-Rings: Globally sourced premium doubled O-rings with anti-dust ring reduce wear and increase durability.
Two-Stage Pump: Concealed double staged pump core.
Rapid Lift: Rapid lift without load.
Controlled Descent: Slow descent with load.
Overload Valve: Overload safety valve.
Hydraulic Fluid: Aviation grade hydraulic fluid.
Durable Finish: Lead-free paint finish applied after a thorough chemical wash for a long-lasting result.
Easy Cleanup: Paint is oil, grease and dirt-resistant for easy cleanup.

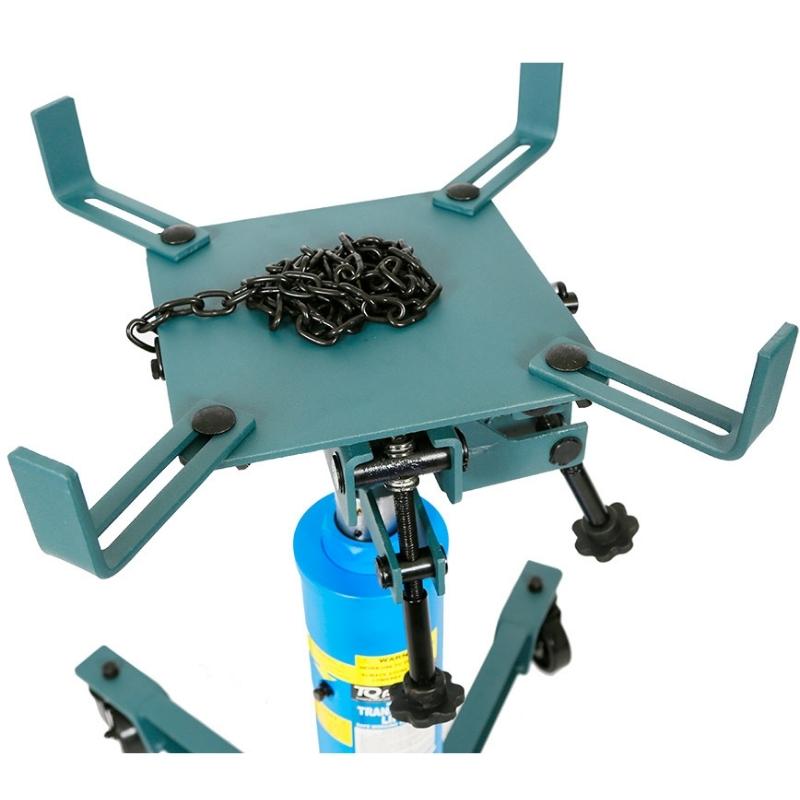

Tilting Platform: Oversize lifting platform provides a broad four-way adjustment and tilt range.
Swivel Castors: Premium nylon swivel castors.
Included accessories
Specifications
| Safe Working Capacity | 500 kg |
|---|---|
| Minimum Height | 940 mm |
| Maximum Height | 1940 mm |
| Lift Ram Travel (2 Stage) | 1st 490 mm / 2nd 510 mm |
| Forward Tilt | 55 degrees |
| Rearward Tilt | 91 degrees |
| Left Tilt | 55 degrees |
| Right Tilt | 16 degrees |
| Carton Dimensions | 840 x 530 x 280 |
| Nett Weight | 68.5 kg |
| Gross Weight | 77 kg |
