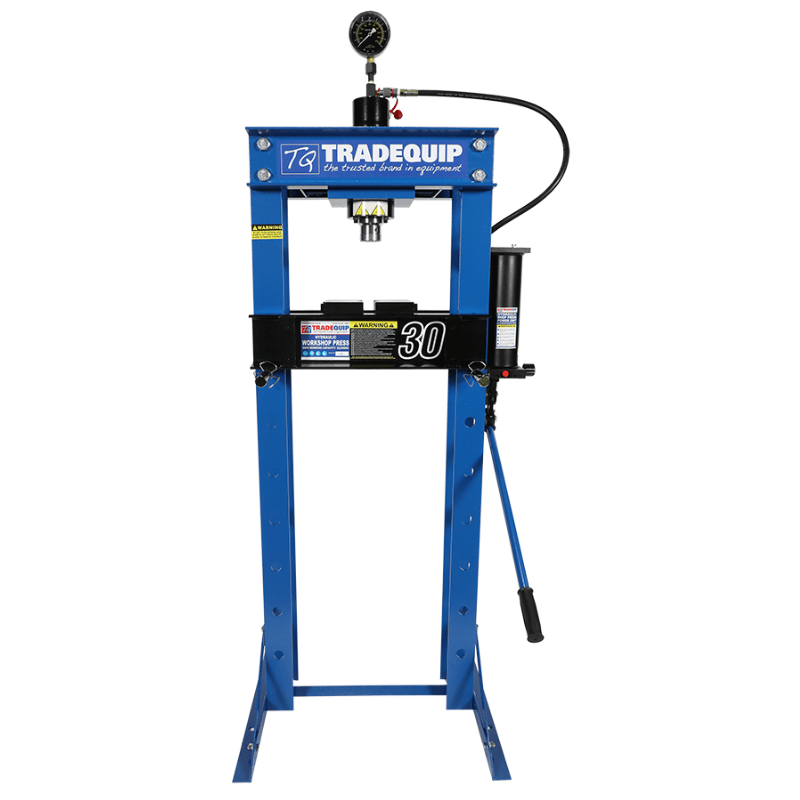

TRADEQUIP Professional Hydraulic Workshop Press 30,000Kg

SKU 1064T
Afterpay Zip PayPal LeaseGO
$1,840.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

The TradeQuip "Made for the Trade" Hydraulic Workshop Press is great for straightening, stamping, bending and pressing any component that is hard to handle. The polished inner cylinder walls extend the life of the hydraulic seals to minimise abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high performance seals, wear rings and dust seals. It is ideal for a variety of workshop applications and in particular suited to agricultural or industrial use. Jobs such as straightening, ending, folding, punching, removing bolts and bearings etc, are some of the tasks that can be easily accomplished.

Intended Use:

Ideal for straightening, stamping, bending and pressing any component that is difficult to handle.


                          Features

                          Features

                        • Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
                        • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
                        • Paint finish is oil, grease and dirt-resistant for easy cleanup
                        • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
                        • Piston-ram is treated and polished for extended life
                        • Reinforced head bolster for added strength
                        • Pair of bed plates included
                        • Specifications
                        • Safe Working Capacity: 30,000kg
                        • Working Range: 50 - 1030mm
                        • Overall Height: 1950mm
                        • Overall Width: 830mm
                        • Overall Depth: 660mm
                        • Bed Width: 455mm
                        • Bed Gap: 154mm
                        • Bed Inside Working Area: 230 x 154mm
                        • Bed Cage Bolt Holes: 422 x 80mm
                        • Press Head Diameter: 56mm
                        • Load Cap Length: 17mm
                        • Jacking Handle Length: 639mm
                        • Ram Lateral Adjustment: 70mm
                        • Piston Ram Stroke: 170mm
                        • Nett Weight: 138kg
                        • Crate: 1700 x 510 x 300mm
                        • Gross Weight: 168kg
                        • Data Sheet
