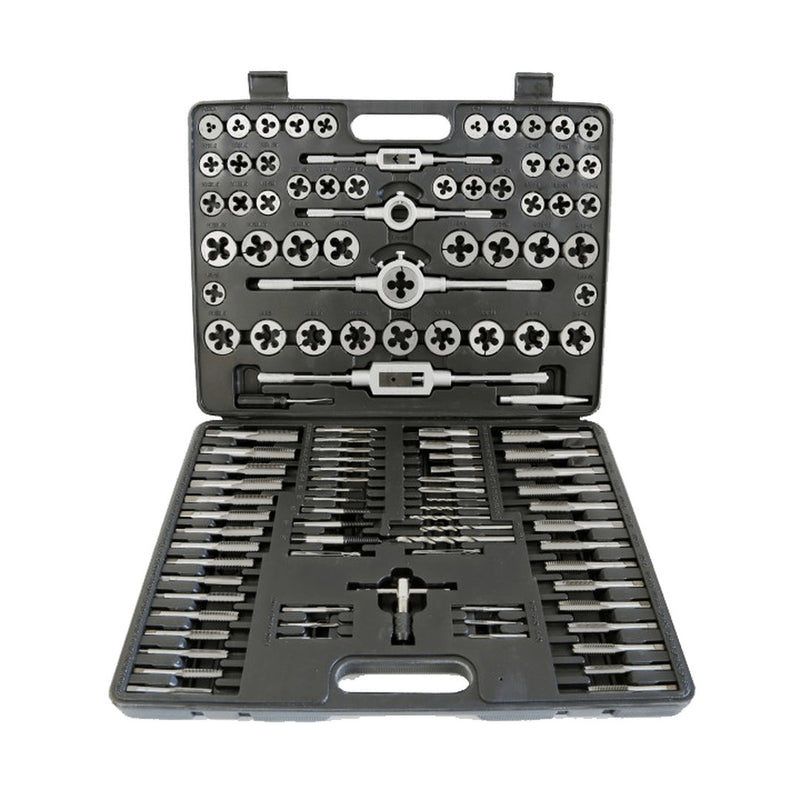

TRADEQUIP Tap and Die Set 115 Piece
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

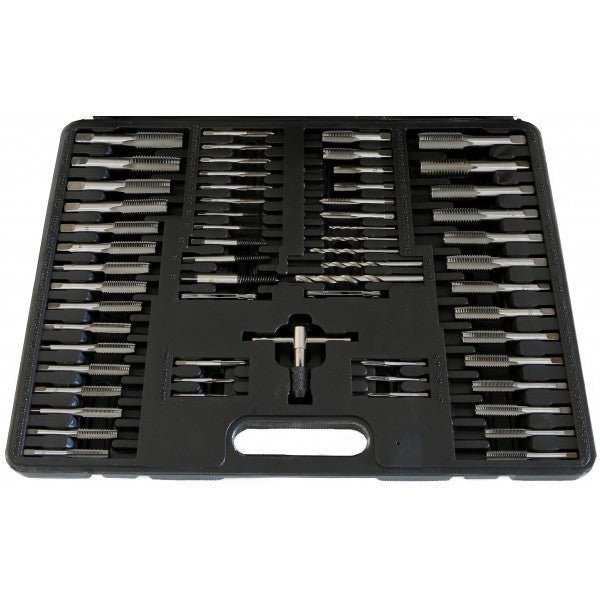

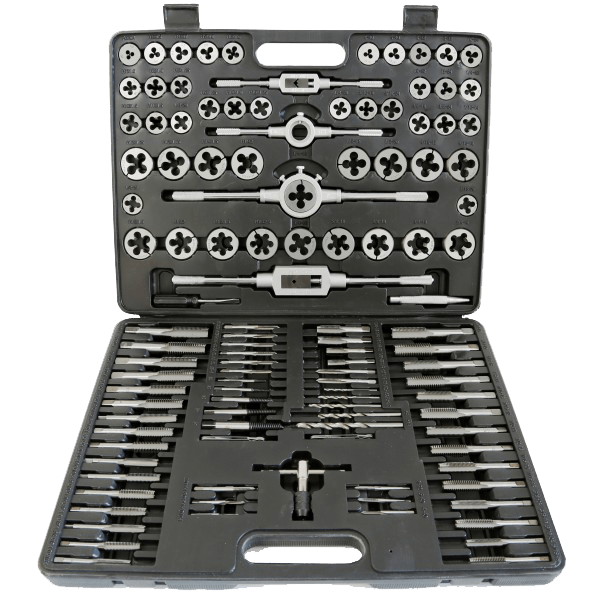

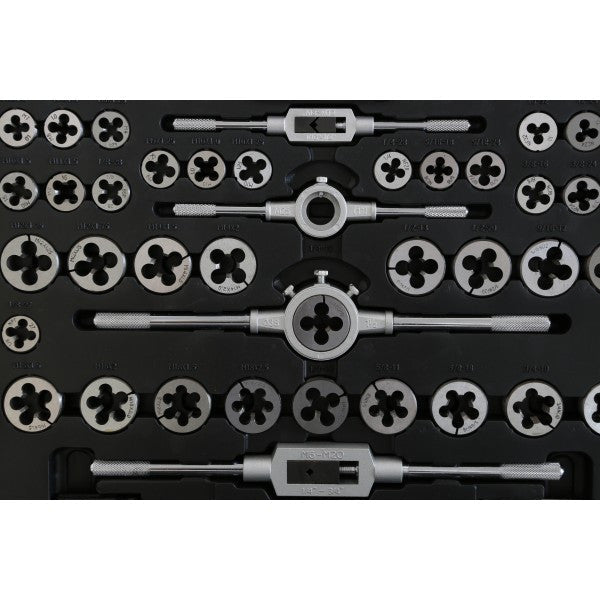

This TradeQuip 115 piece tap and die set contains a combination of popular metric and SAE taps and dies, manufactured from premium heat treated, rust resistant tungsten steel with a Rockwell hardness of 58 to 61 HRC. It cuts and renews external and internal threads, and the set includes die handles, tap wrenches, drill bits, screw extractors, a centre punch, a screwdriver and thread pitch gauges.
Everything packs into a tough, compartmentalised blow moulded case for easy identification and organisation, with two thread pitch gauges to quickly identify the right thread. It covers most tap and die needs for creating and repairing studs and bolts.
Features
Thread cutting: cuts and renews external and internal threads to exacting standards.
Popular sizes: contains most popular sizes.
Heat treated: heat treated and hardened.
Precision ground: the taps and dies are precision ground.
Tungsten steel: tungsten steel construction.
Storage case: compartmentalised storage case for easy identification and organisation.
Included accessories
Specifications
| Set Size | 115 Piece |
|---|---|
| Die Sizes (48pce) | 4-40, 5-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-16, 2x0.4, 3x0.5, 4x0.7, 5x0.8, 6x1.0, 7x1.0, 8x1.8, 8x1.25, 9x1.25, 10x1.0, 10x1.25, 10x1.5, 11x1.5, 12x1.75, 12x1.25, 14x2.0, 14x1.5, 16x2.0, 16x1.5, 18x1.25, 18x1.5, 1/8NPT27, 1/8BSP, 1/4NP18, 1/4BSP19 |
| Tap Sizes (48pce) | 4-40, 5-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-16, 2x0.4, 3x0.5, 4x0.7, 5x0.8, 6x1.0, 7x1.0, 8x1.8, 8x1.25, 9x1.25, 10x1.0, 10x1.25, 10x1.5, 11x1.5, 12x1.75, 12x1.25, 14x2.0, 14x1.5, 16x2.0, 16x1.5, 18x1.25, 18x1.5, 1/8NPT27, 1/8BSP, 1/4NP18, 1/4BSP19 |
| Die Handles | 2 |
| Tap Wrenches | 2 |
| T-Type Tap Wrench | 1 |
| Screw Pitch Gauges | 2 |
| Centre Punch | 1 |
| Screwdriver | 1 |
| Drill Bits (5pce) | 2.5, 3.3, 4.2, 5, 6.8mm |
| Screw Extractors (5pce) | 1#, 2#, 3#, 4#, 5# |
