TRADEQUIP 2052 Transmission Lifter 500kg Rated
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

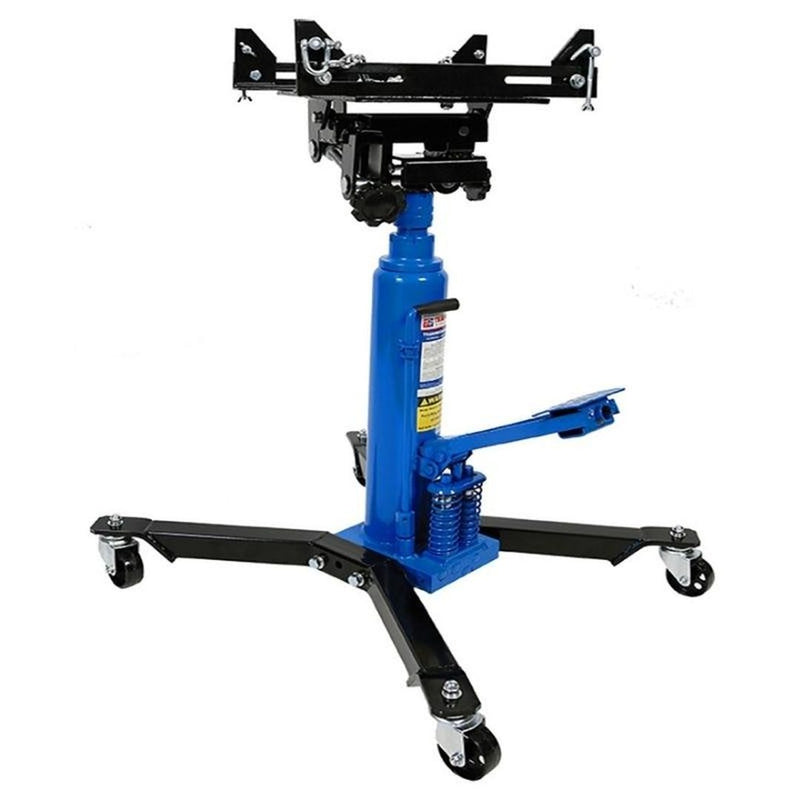

This 500kg capacity TradeQuip telescopic transmission lifter has a four way tilt platform with adjustable load support arms to fit most passenger vehicle transmission pan flanges. The foot operated quick lift pump frees the operator's hands when positioning for a lift, and the hand operated lever provides extra slow control when lowering. It raises from an 855mm minimum height to a 1760mm maximum height and includes safety chains.
The 2052 is designed for the removal, installation and transportation, in the lowered position, of passenger vehicle transmissions that are raised by an in-ground or above-ground lift.
Features
Purpose built: designed for lifting and lowering passenger car transmissions.
Two-stage ram: 2-stage hydraulic ram.
Mobility: rugged steel wheels and full swivel ball bearing castors for easy movement.
Wide base: wide base for stability and balance.
Adjustable platform: lifting platform adjusts quickly for most pan configurations.
Four-way tilt: 4-way tilt lifting platform.
Chrome rams: high polished chrome-plated rams for smooth operation.
Hand release lever: unique hand release lever gives extra slow control when lowering.
Foot pump: foot operated fast action pump and release valve.
Corner brackets: safety designed lifting platform with corner brackets.
Safety chains: includes safety chains.
Included accessories
Specifications
| Safe Working Capacity | 500kg |
|---|---|
| Minimum Height | 855mm |
| Maximum Height | 1760mm |
| Lifting Platform | 360x276mm |
| Forward Tilt | 23° |
| Backward Tilt | 16° |
| Lateral Tilt | 7° |
| Base Dimensions | 690 x 780mm |
| Nett Weight | 61kg |
| Carton | 550 x 270 x 780mm |
| Gross Weight | 68kg |
