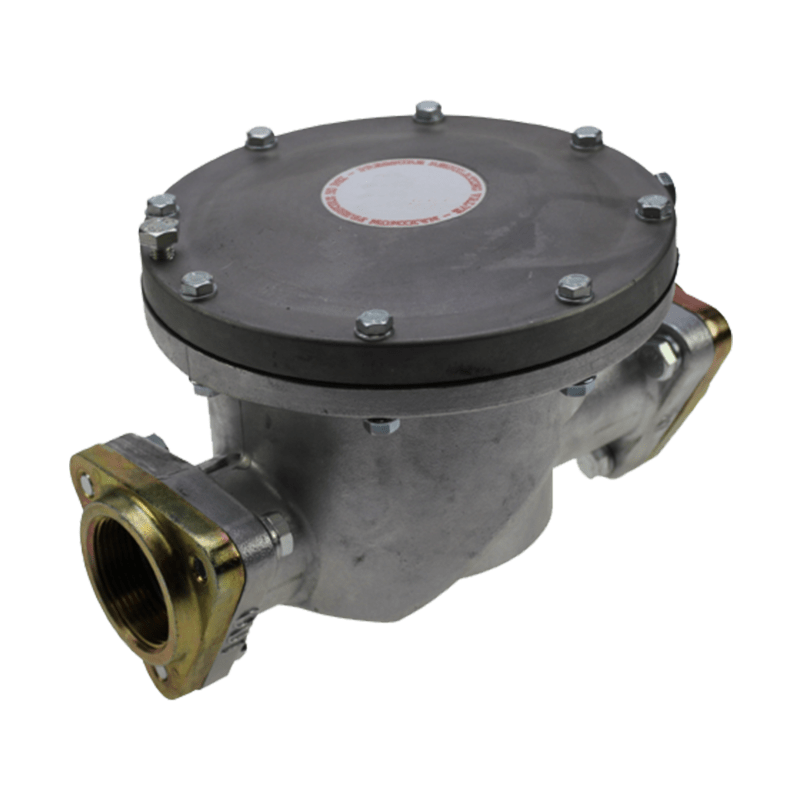

Valve Pressure Regulator DN40 110lpm Scr BSP Female

SKU: PR

Valve Pressure Regulator DN40 110lpm Scr BSP Female

$1,430.00 AUD
$1,430.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
VALVE Pressure Regulator DN40 110lpm Scr BSP Female

Valve Pressure Regulator DN40 110lpm Scr BSP Female

$1,430.00 AUD
$1,430.00 AUD
Save $0
Sold out

Features

  • Suitable with diesel or biodiesel up to B30.
  • Protects self bunded above ground storage tanks from syphoning used with Bowsers, mounted to above ground self bunded storage tanks, in custody transfer applications, to prevent weeping through the air eliminator of the bowser
  • Inlet strainer mesh.
  • High quality die cast aluminium body.
  • Max tank height from ground level 7.5m.
  • Can be mounted horizontally or vertically.
  • A full range of spares available.

    • Valve Pressure Regulator DN40 110lpm Scr BSP Female

    Overview

    The GO Industrial PR Pressure Regulating Valve is used with above ground self bunded tanks, fitted with bowsers, in custody transfer applications, to prevent the weeping of diesel fuel through the air eliminator of the bowser.  The PR can be used as an Anti Syphon valve to meet the requirements of Section 5.9.2 (j) of AS1940-2017.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Valve Pressure Regulator PR

    Specifications

    SKU PR
    Manufacturer Hytek UK
    Inlet Hose 1 ½" F (DN40) BSPT flanged
    Max Flow 110L/min
    Max Pressure 49psi (3.4 bar)
    Outlet 1½" F (DN40) BSPT flanged
    Warranty 1 Year
    Fuel Type Biodiesel B30, Diesel

      Features

    • Suitable with diesel or biodiesel up to B30.
    • Protects self bunded above ground storage tanks from syphoning used with Bowsers, mounted to above ground self bunded storage tanks, in custody transfer applications, to prevent weeping through the air eliminator of the bowser
    • Inlet strainer mesh.
    • High quality die cast aluminium body.
    • Max tank height from ground level 7.5m.
    • Can be mounted horizontally or vertically.
    • A full range of spares available.
