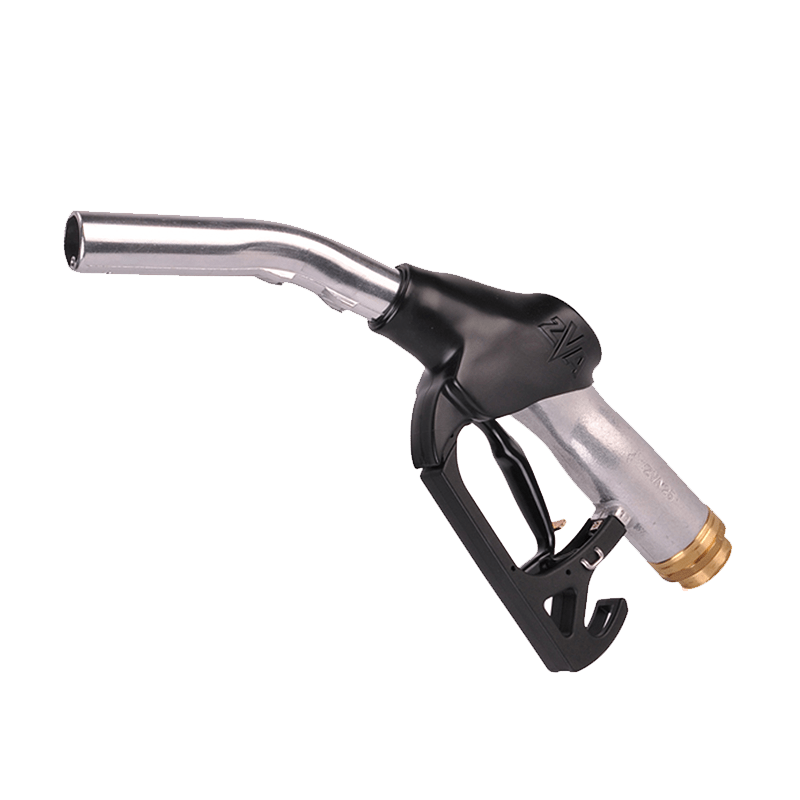

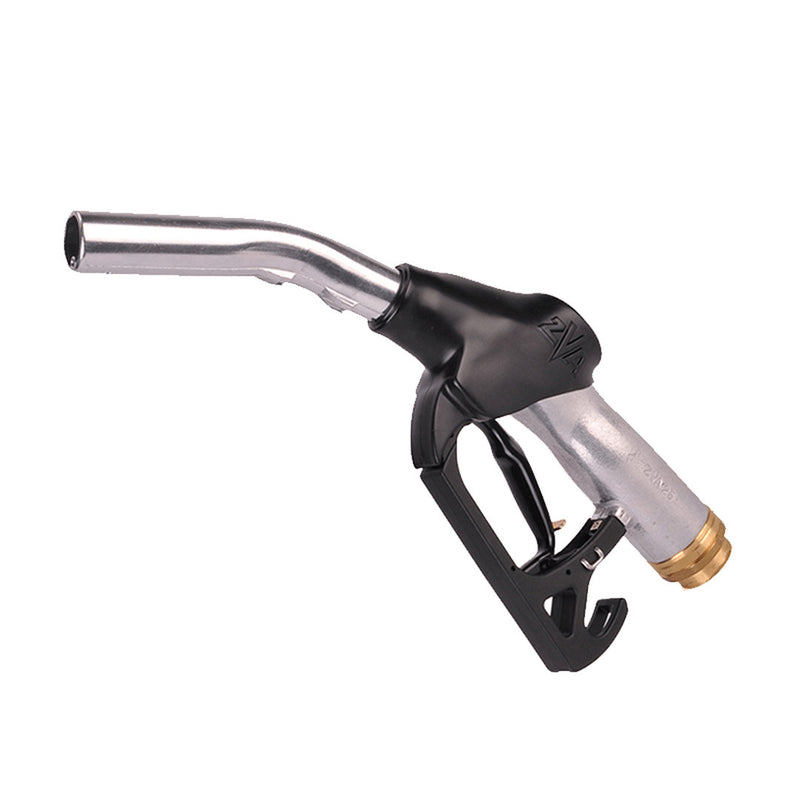

The ZVA 32 Automatic Shut Off Nozzle is a high quality, heavy duty, high flow automatic diesel nozzle approved for refuelling in resale pumping applications.
Thanks to the sensor in the spout that detects when the vehicle tank is full, the ZVA 32 nozzle automatically shuts off to prevent fuel from spilling out. With a maximum flow rate of 200 litres per minute, the ZVA 32 is a high flow fuel nozzle designed for applications where large volumes of diesel need to be dispensed at a time.
ZVA nozzles, from GO Industrial, are a widely recognised brand of forecourt (retail) style models, known for their careful and quality design and sturdy manufacturing. This particular nozzle benefits from a two position stay open latch, a No 4 trigger guard and a black scuff guard for nozzle protection.
Features
- 200 L/min Flow: The highest-flow nozzle in the ZVA range, for fill points where a DN 25 nozzle still holds the queue up.
- Venturi Automatic Shut-Off: A sensor in the spout closes the valve the moment the tank fills.
- Ball Bearing Swivel: The DN 32 hose inlet runs on a ball bearing, which keeps a heavy hose turning freely.
- 3-Stage Lever Latch: Three hold-open positions with a removable latch pin.
- Aviation Rated: Approved for Avgas and Jet A-1 as well as diesel, light fuel oil and petroleum.
- Certified For Resale And Hazardous Areas: Meets EN 13012 and carries ATEX II 1G and TUV approval.
Specifications
| MAXIMUM FLOW RATE | 200 L/MIN | 53 GPM |
|---|---|
| NOMINAL SIZE | DN 32 (1 1/4 IN) |
| WORKING PRESSURE | 1.5 TO 6 BAR |
| HOSE INLET | 1 1/2 IN BSP FEMALE SWIVEL, WITH BALL BEARING |
| SHUT-OFF | Venturi automatic, with safety cut-out valve |
| LATCH | 3-stage lever latch with removable latch pin |
| GUARD | Style 4 trigger guard with black PVC scuff guard |
| WEIGHT | 2.5 KG | 5.5 LB |
| BODY, SPOUT AND GUARD | Aluminium |
| INTERNAL PARTS | Bronze and hot-stamped brass, with an acetal resin poppet |
| SEALS | NBR and polyurethane |
| SUITABLE FLUIDS | Diesel, light fuel oil, petroleum, Avgas, Jet A-1 |
| NOT SUITABLE FOR | Viscous oils, water and solvents |
| APPROVALS | EN 13012, ATEX II 1G certificate SIRA 03ATEX9487U, TUV P-TU7-00512 |
