Name: BANLAW 1000 Series Dry Break Diesel Refuelling Nozzles
Brand: Banlaw
SKU: BAMS6
Price: 2208.0 AUD
Availability: InStock

1

Details

Dry Break Nozzles

Banlaw refuelling nozzles offer the highest reliable flow rate capability, and have a
proven safety record. The dependable ball locking mechanism ensures our nozzles cannot ‘fly off’, and Dry Break design minimises leaks and spills. Banlaw nozzles are predominantly of all-metal construction which dramatically extends their serviceable life.

Nozzle Spring Settings

Medium – The industry standard pressure setting, most commonly used.

Light – Shuts off when sensing a lighter back pressure, suitable for specialist situations such as filling large thin walled tanks, where internal pressure must be minimised.

Heavy – Overcomes flow resistance from multiple fuelling components on the machine-side and long remote-fill pipework. Discuss with GO Indusrtrial prior to considering heavy nozzles on your site.

Banlaw produce Dry Break Nozzles in a variety of spring settings. This allows refuelling pressure settings for a site, or for a specific machine to be customised, overcoming premature shutoff or other pressure-related issues.

Refuelling problems related to a specific machine should be overcome by changing the receiver, not the nozzle, in most cases.

Features

1000 lpm (264 gpm) diesel refuelling

Nozzles work with Banlaw receivers and vents to automatically shut off refuelling when the tank is full.

Dependable ball locking mechanism ensures that nozzles do not ‘fly off’

Dry Break connections avoid fuel spills and sprays, at industry-best refuelling speeds

All steel mating parts, and fully repairable; with regular maintenance nozzles can last for years

Ergonomic design for quick and easy manual handling

Range of factory spring settings so that nozzles and receivers are matched to work optimally with your specific equipment set-up

Highly reliable – suitable for robotic refuelling

Safe, automated shut-off when the fuel tank is full

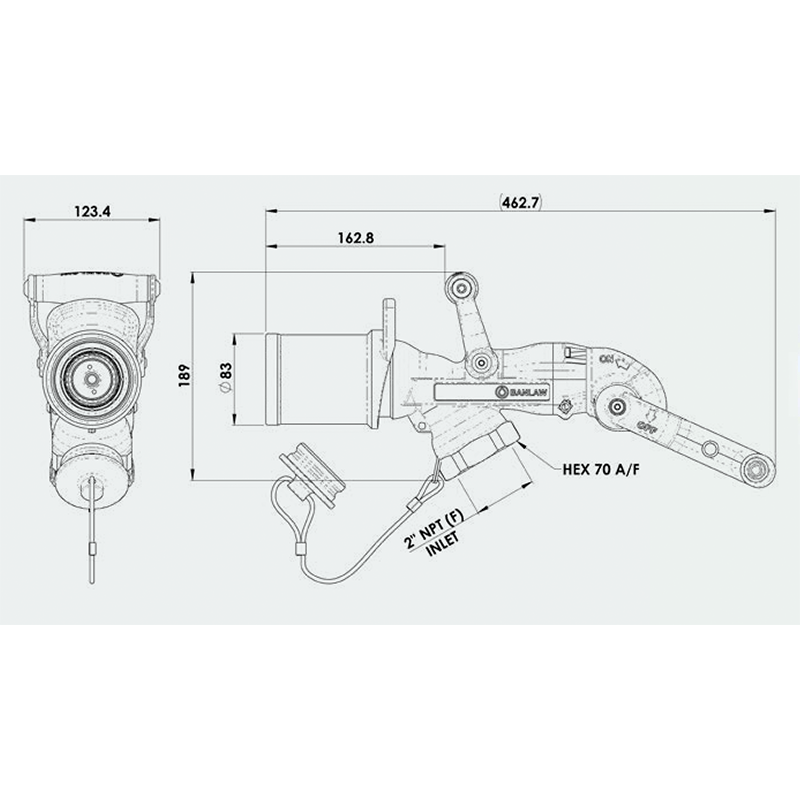

Banlaw 1000 Series Dry Break Diesel Refuelling Nozzles

Overview

Banlaw 1000 Series dry break refuelling nozzles allow equipment filling speeds to be maximised. Considered to be the pinnacle in Dry Break automatic shut-off hardware, these durable nozzles allow fuelling process times to be reduced, enabling significant productivity gains.

Flow rates up to 1,000 litres per minute.

Compatible only with Banlaw 1000lpm 43 series receivers, e.g. BRM43K and BFCV43 Series products.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

GO Data Sheet Banlaw 1000 Series Dry Break Diesel Refuelling Nozzle Range

GO Data Sheet Banlaw Refuelling Systems

GO Manual Banlaw Dry Break Diesel Refuelling Nozzles

Features

1000 lpm (264 gpm) diesel refuelling
Nozzles work with Banlaw receivers and vents to automatically shut off refuelling when the tank is full.
Dependable ball locking mechanism ensures that nozzles do not ‘fly off’
Dry Break connections avoid fuel spills and sprays, at industry-best refuelling speeds
All steel mating parts, and fully repairable; with regular maintenance nozzles can last for years
Ergonomic design for quick and easy manual handling
Range of factory spring settings so that nozzles and receivers are matched to work optimally with your specific equipment set-up
Highly reliable – suitable for robotic refuelling
Safe, automated shut-off when the fuel tank is full
