Details

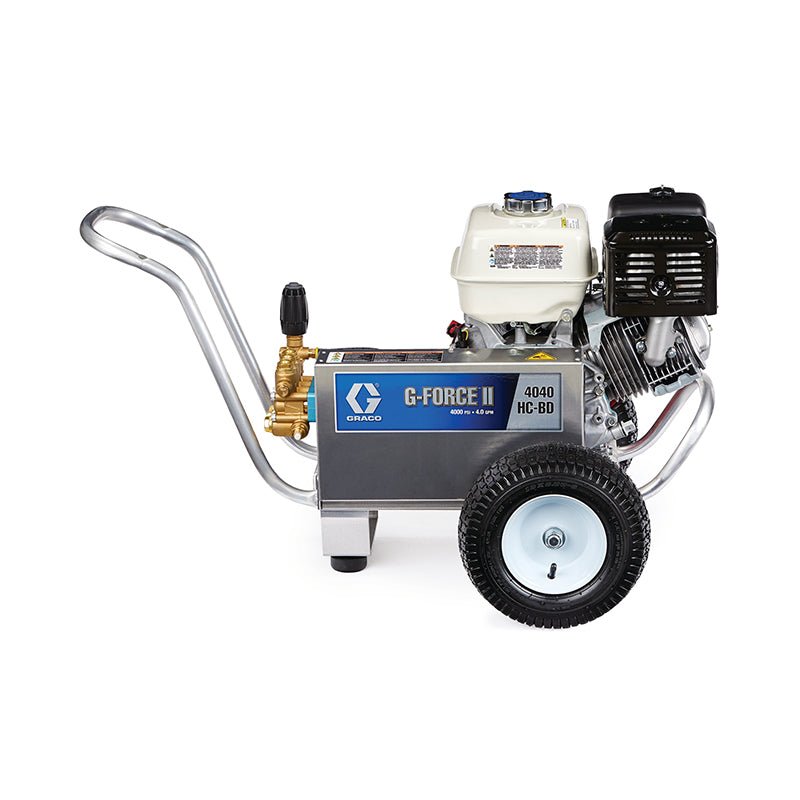

Sporting a Honda GX390, CAT Triplex Plunger Pump with an output of 15lpm & 4000 PSI, this is your 132kg performer suitable for 30+ hours per week of usage. This pressure washer is a belt driven system.

Being a Belt Drive pressure washer, the unit experiences lower RPM/operating temperature and ensures a long pump life. The pump is connected to a pulley and belt system that is connected to the engine. This allows the pump to run at a much lower rpm (typically 900-1700 rpm). The pump is mounted away from the engine and has a crankcase with more oil capacity, allowing the pump to run much cooler than a direct drive pump. The pump vibrates less and suffers less pump fatigue as a result of clever design.

The Unit Includes:

• 0.95cm (3/8") x 15m (50ft), non-marking hose with Quick Connect Fittings
• Professional Grade 91cm Gun & Wand Assembly (36") with Quick Connect Fittings
• Integrated Chemical Injector Kit Included

Range of Tips Included:

0° Red - 805591

• DESCRIPTION: Cutting Tip
• USE: Delivers a concentrated stream that can gouge or cut.
• TYPICAL JOBS: Removing stains from concrete or other hard surfaces.

 15° Yellow - 805592

• DESCRIPTION: Chiseling Tip
• USE: Works like a scraper when used at a 40° angle.
• TYPICAL JOBS: Stripping paint; removing grease, mildew, and stains.

25° Green - 805593

• DESCRIPTION: Flushing Tip
• USE: Most common nozzle for general cleaning.
• TYPICAL JOBS: Cleaning dirt from siding, sidewalks, outdoor furniture etc.

Injector - 805634

• DESCRIPTION: Washing Tip
• USE: Wide spray for washing or rinsing a large area.
• TYPICAL JOBS: Washing vehicles, windows, aluminium siding, and other delicate surfaces.

Black - Chemical

• DESCRIPTION: Chemical Tip
• USE: Low pressure nozzle for use with detergent injector.
• TYPICAL JOBS: Applying detergent, misting and rinsing.

Technology that makes the Difference - Key Features to Consider for Maximum Productivity

While pressure washers are simple machines, understanding the key components and differences will help you make the right purchase.

The Engine

Commercial-grade Kohler Engine vs lower quality, off-brand engines

• Brand name manufacturers in the business of building great engines versus
• Proven reputation for quality and ongoing support and service

The Frame

Lighter frames are easier to handle

• Aluminium frame - a standard Graco feature that's lightweight, resistant to rust, and easy to move around the job site versus
• Steel frame - heavy, harder to move and load in the truck

Look for durability in the axle to ensure the frame remains constant and square:

• Professional-grade 19mm axles versus smaller 16mm axles on lower quality models

The Water Pump

Professional-grade Triplex plunger pumps vs. consumer-grade Axial pumps

• AR, GP and CAT pumps versus lower quality, off-brand pumps
• Forged Brass Manifold (on all Graco pumps), reduces heat to extend life versus stainless steel caps and manifold
• Good, Better, Best options quality, serviceability and life of the pumps

The Pressure Unloader

Letting the motor run while not spraying can build up pressure and excess heat in the system, causing the pressure washer to overheat and shut down. The pressure unloader prevents overheating and prolongs the life of your sprayer.

Adjustable pressure unloaders, a standard Graco feature, versus fixed unloaders allow you to vary the pressure based on the application.

• Integrated - ideal for jobs with constant spraying while the motor is running
• External - ideal for longer jobs with lots of stops and starts. Allow water to run cooler for greater protection against overheating

Spray with Confidence - Industry-Leading Warranty Protection

Every Graco pressure washer is backed by the industry's best warranty coverage.

1-Year Warranty*: Coverage against defects in materials and workmanship on the entire pressure washer.

GO Industrial are authorised Graco specialists, service and warranty agents to assist you with your product and application needs. Contact us for more information.
