Banlaw Overfill Protection FillSafe Zero - Flow Control Valve 3”
Banlaw Overfill Protection FillSafe Zero - Flow Control Valve 3”
  • Banlaw Overfill Protection FillSafe Zero - Flow Control Valve 3”
  • Banlaw Overfill Protection FillSafe Zero - Flow Control Valve 3”
1 3

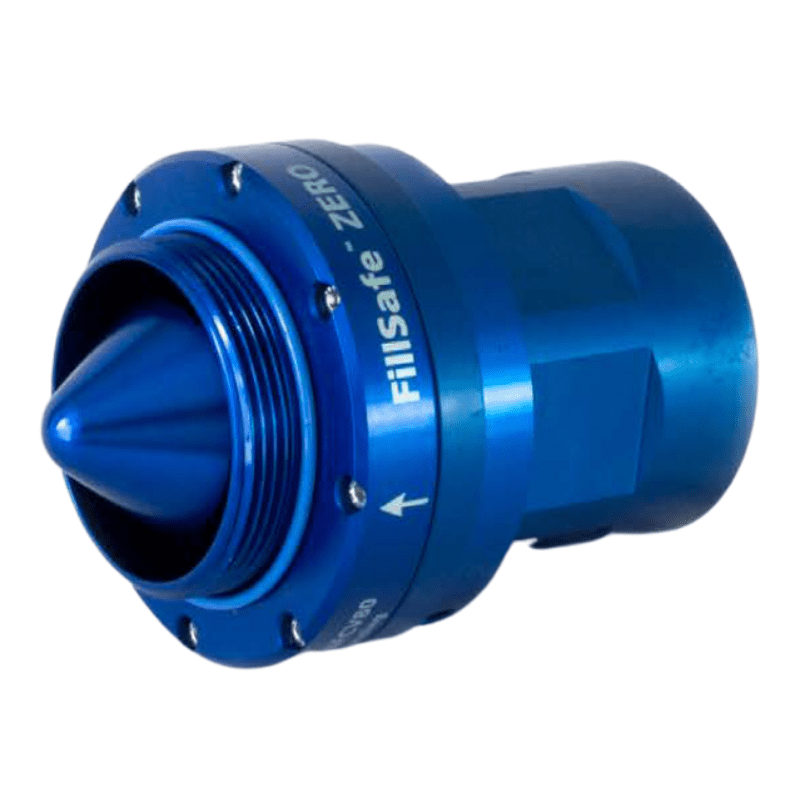

BANLAW Flow Control Valve 3" Overfill Protection FillSafe Power

SKU: BFCV80

BANLAW Flow Control Valve 3" Overfill Protection FillSafe Power

$1,993.00 AUD
$1,993.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Model

Other payment options

View full details
Banlaw Overfill Protection FillSafe Zero - Flow Control Valve 3”

BANLAW Flow Control Valve 3" Overfill Protection FillSafe Power

$1,993.00 AUD
$1,993.00 AUD
Save $0
Sold out

Details

Banlaw manufactures both mechanical and electronic solutions for tank overfill protection, catering to storage tanks and diesel-powered machines of all sizes. All products are designed to protect valuable machine assets, providing the widest choice of zero tank pressure overfill protection systems available on the market.

A Banlaw FillSafe Zero system consists of a:

  •  Flow Control Valve
  •  Level Sensor
  •  Pilot Line

The Flow Control Valve closes when a Level Sensor detects that the tank is full, stopping the flow of diesel from entering the tank. The Banlaw FillSafe Zero Range is configurable to allow a choice of either an internal or external pilot line.

Valve variants are available that fit directly into a 2” shell, refuel at up to 1000lpm, include a Dry Break Receiver, or are provided with process connections for in-line deployment

Banlaw Flow Control Valve 3" Overfill Protection FillSafe Power

Overview

Banlaw's FillSafe Zero 3" flow control valves are purpose built for remote/in-line installations. Designed to support diesel flow rates from 200lpm to 950lpm, these valves also feature a rotating Pilot Line inlet collar for ease of external Pilot Line routing during installation.

Banlaw's patented FillSafe Zero mechanical tank overfill protection system enables safe, high-speed & reliable diesel refuelling with zero pressure build-up in the tank, ensuring cost-efficient install on a wide range of vehicles, and stationary tanks.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.
