The Basics

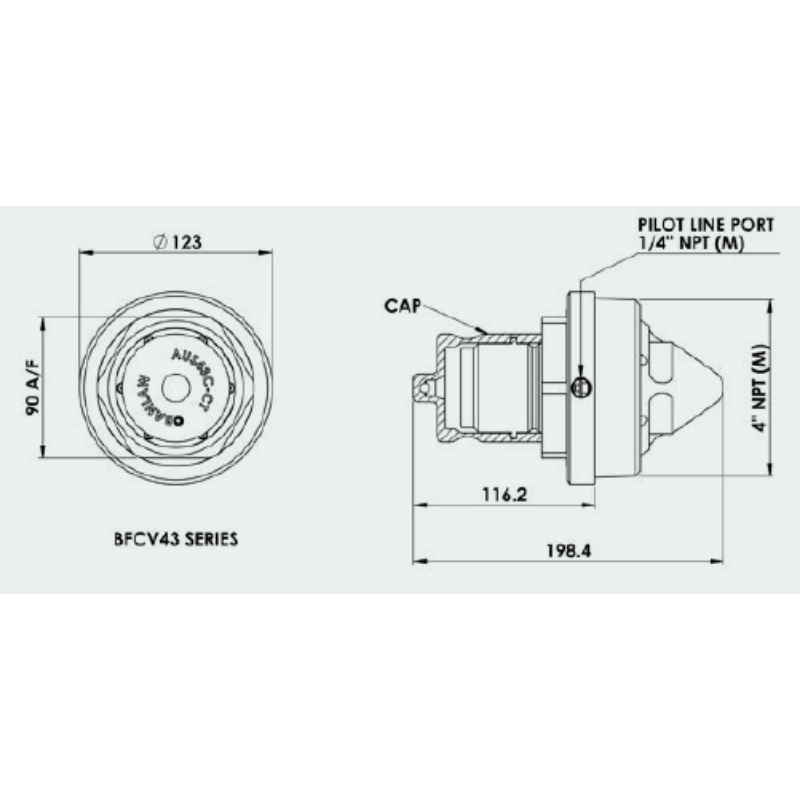

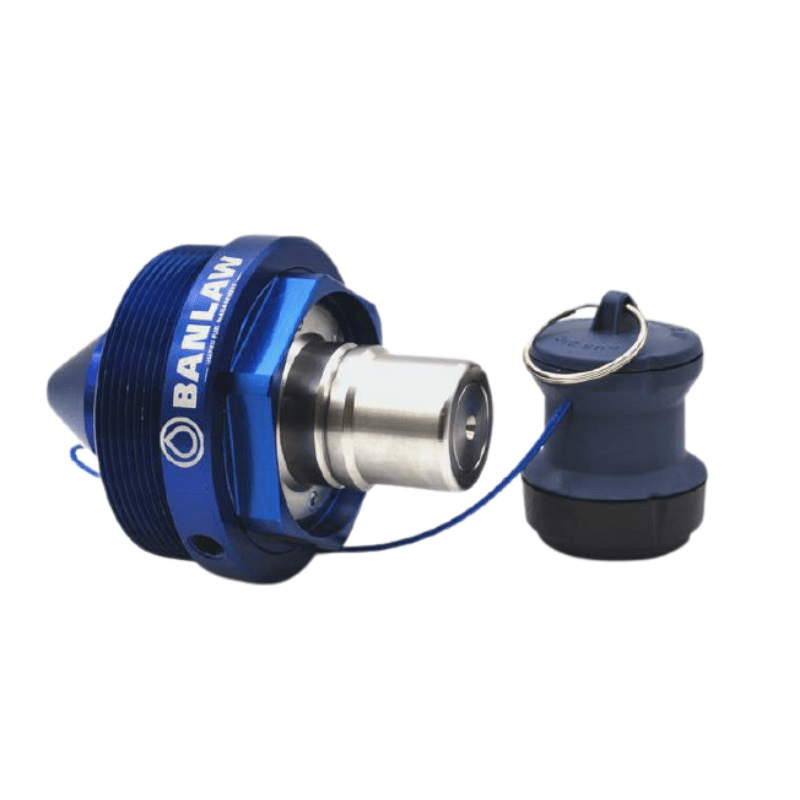

Banlaw's FilllSafe Zero 4” flow control valves are suitable with integrated Dry Break Receivers. The BFCV23 variant, supports flow rates from 200lpm to 800lpm, and is compatible with the Banlaw 800 Series Dry Break Nozzle (the industry standard size). The BFCV43, however, supports flow rates from 400lpm to 1000lpm and is compatible with the Banlaw 1000 Series Dry Break Nozzle.

4” flow vontrol valves feature a rotating pilot line collar to assist with the routing of the external pilot line during installation. Valves have the same 4” thread type as flow control valves on many diesel locomotives, this ease of conversions allow Banlaw Nozzles to be used to safely refuel a locomotive fuel tank.

Banlaw FillSafe overfill protection systems ensure safe, fast, reliable filling with zero pressure build-up in the tank. Banlaw manufactures both mechanical and electronic solutions for tank overfill protection, catering to storage tanks and diesel-powered machines of all sizes. All products are designed to protect valuable machine assets, providing the widest choice of zero tank pressure overfill protection systems available on the market.

The Banlaw patented FillSafe Zero mechanical tank overfill protection system enables safe, high-speed diesel refuelling, and is cost-efficient to install on a wide range of vehicles, and stationary tanks.

A Banlaw FillSafe Zero system consists of a:

•  Flow Control Valve
•  Level Sensor
•  Pilot Line.

The Flow Control Valve closes when a Level Sensor detects that the tank is full, stopping the flow of diesel from entering the tank. The Banlaw FillSafe Zero Range is configurable to allow a choice of either an internal or external pilot line.

Valve variants are available that fit directly into a 2” shell, refuel at up to 1000lpm, include a Dry Break Receiver, or are provided with process connections for in-line deployment.
