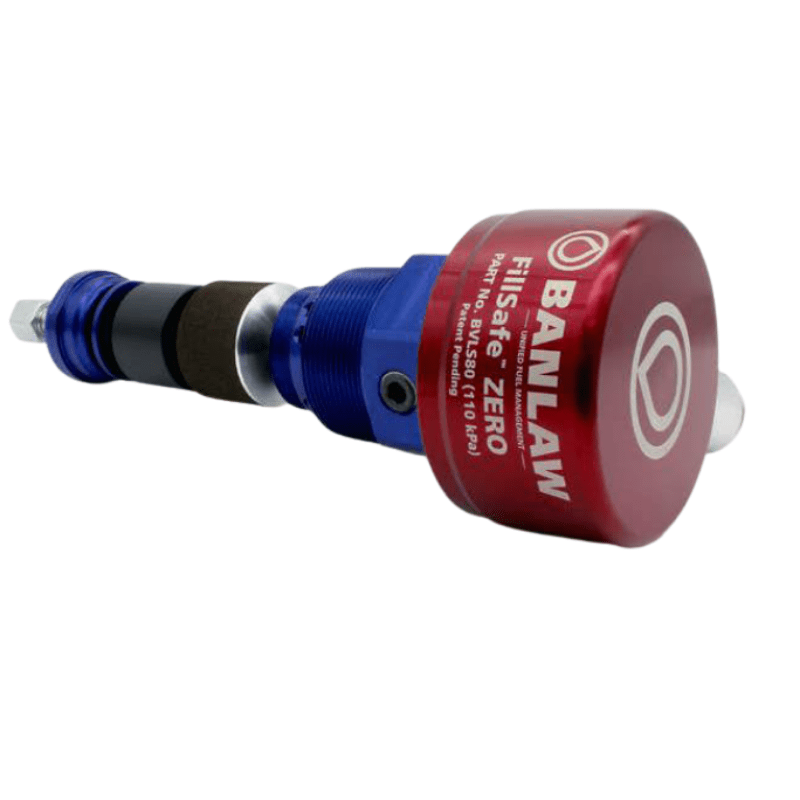

BANLAW Vented Level Sensor Overfill Protection FillSafe Power

SKU: BVLS80

BANLAW Vented Level Sensor Overfill Protection FillSafe Power

$1,677.00 AUD
$1,677.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Model

Other payment options

View full details
BANLAW Vented Level Sensor Overfill Protection FillSafe Power - GO Industrial - BVLS80

BANLAW Vented Level Sensor Overfill Protection FillSafe Power

From $1,677.00 AUD
From $1,677.00 AUD
Save $0
Sold out

Details

A Banlaw FillSafe Zero system consists of a:

  •  Flow Control Valve
  •  Level Sensor
  •  Pilot Line

The Flow Control Valve closes when a Level Sensor detects that the tank is full, stopping the flow of diesel from entering the tank. The Banlaw FillSafe Zero Range is configurable to allow a choice of either an internal or external pilot line.

Valve variants are available that fit directly into a 2” shell, refuel at up to 1000lpm, include a Dry Break Receiver, or are provided with process connections for in-line deployment.

Features

  • Level sensing to the specified ullage
  • Compatible with internal or external pilot line installations
  • Suitable for vehicles with multiple fuel tanks
  • 1,000 litres per minute (264 gpm, 2,118 SCFH) air venting (exhaust and intake)
  • ‘Anti-spill’ roll over protection
  • Tank pressure gauge port
  • Secondary (top) float for dry-break refuelling system ‘shut-off’ redundancy
  • 110kPa (16psi) or 49kPa (7psi) pressure relief valve setting options

    • Banlaw Vented Level Sensor Overfill Protection FillSafe Power

    Overview

    Banlaw FillSafe overfill protection systems ensure safe, fast, reliable filling, with zero pressure build-up in the tank. Banlaw manufactures both mechanical and electronic solutions for tank overfill protection, catering to storage tanks and diesel-powered machines of all sizes. All products are designed to protect valuable machine assets, providing the widest choice of zero tank pressure overfill protection systems available on the market.

    Banlaw patented FillSafe Zero mechanical tank overfill protection system enables safe, high-speed diesel refuelling, and is cost-efficient to install on a wide range of vehicles, and stationary tanks.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Banlaw 800 Series Dry Break Diesel Receiver Range
    • GO Data Sheet Banlaw Overfill Protection FillSafe Zero - Vented Level Sensor

      Features

    • Level sensing to the specified ullage
    • Compatible with internal or external pilot line installations
    • Suitable for vehicles with multiple fuel tanks
    • 1,000 litres per minute (264 gpm, 2,118 SCFH) air venting (exhaust and intake)
    • ‘Anti-spill’ roll over protection
    • Tank pressure gauge port
    • Secondary (top) float for dry-break refuelling system ‘shut-off’ redundancy
    • 110kPa (16psi) or 49kPa (7psi) pressure relief valve setting options
