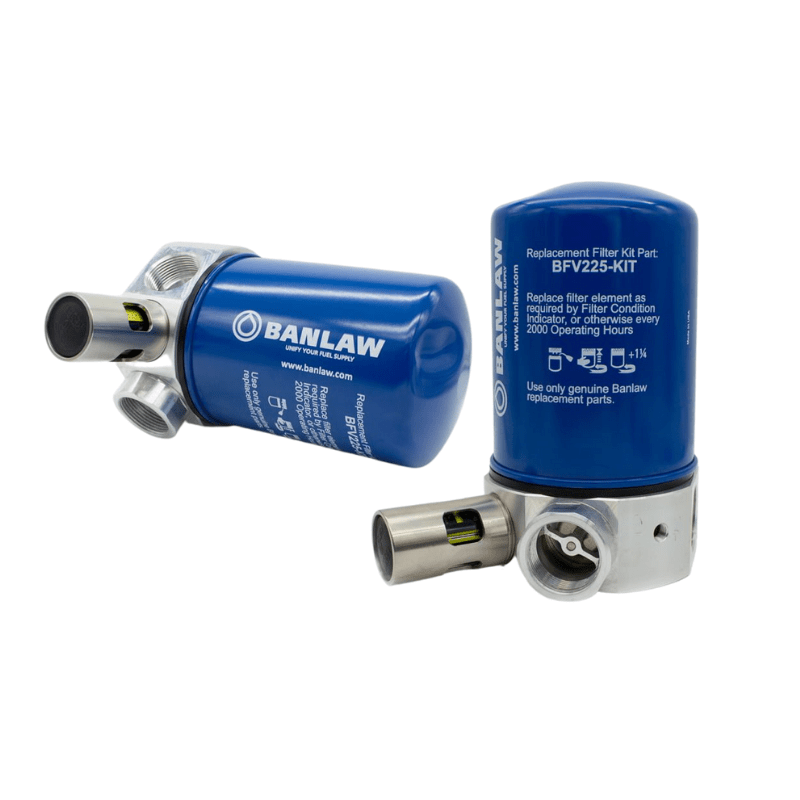

BANLAW Remote Breather Fine Filtered 3um

SKU: BRFB01A

BANLAW Remote Breather Fine Filtered 3um

$1,247.00 AUD
$1,247.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
BANLAW Remote Breather Fine Filtered 3um - GO Industrial - BRFB01A

BANLAW Remote Breather Fine Filtered 3um

$1,247.00 AUD
$1,247.00 AUD
Save $0
Sold out

Details

Extend equipment life with the Banlaw unique 3 μm filtered tank vent.

Banlaw patented Fine Filtered Vents, from GO Industrial, prevents damaging airborne contaminants from entering fuel tanks and other fluid storages, whilst also maximising the efficiency of high speed refuelling processes.

Banlaw’s Fine Filtered Vent has been designed to filter airborne particles through a 3μ abs. filter, whilst by-passing outgoing air past the filter element. Standard tank breather filter systems are known to cause tank over-pressurisation when blocked.  A visual filter condition indicator is fitted to monitor filter health.

The volume of potentially contaminated air entering a tank equals the volume of fuel (or other fluid) being dispensed. Installing ‘ultra-fine’ (≤4μm) filtered tank vents is not only recommended by many major diesel engine OEMs, but has been proven to significantly increase the life of fuel systems and engine components.

Productivity Benefits

  • Increased machine efficiency
  • Minimised fuel burn
  • Optimised time between service events
  • Reduced risk of breakdowns and failures
  • Extended life of your equipment
  • Emissions are controlled (Tier 4 levels are mandated in some areas).

Compatibility

  • Compatible with Banlaw and other-brand unfiltered vents
  • Compatible with Banlaw Venting Level Sensor (overfill protection system component)
  • Supports refuelling at 1,000lpm (exhausts up to 60m3/hr of air)
  • Filters incoming air at up to 1,000lpm (incoming air must be filtered at the same rate that fuel or service fluids are being dispensed from a storage tank)

Features

  • Excludes airborne particles 3μm or larger
  • Lasts between service intervals when installed on a vehicle fuel tank (2,000 machine hours)
  • Only incoming air is filtered. The Remote Breather vents air through a separate port as the tank is filled
    • Maximising fuelling efficiency
    • Extending filter life
    • Ensuring blocked filters cannot cause tank over-pressurisation
  • Visual ‘filter condition indicator fitted (electronic also available)
  • Complies with requirements from leading engine manufacturers for ultra clean fuel. Will not void engine warranty



Banlaw Remote Breather Fine Filtered 3um

Overview



The Banlaw Remote Tank Breather, from GO Industrial, prevents damaging airborne contaminants from entering fuel tanks and other fluid storages. It is unique in that it vents at 1,000lpm, and also filters incoming air at 1,000lpm (35.3cfm of air).

This product is perfect for service truck bulk storages, and other tanks where incoming air needs to be filtered at a high rate, due to service fluids or diesel being rapidly dispensed from the tank.

Banlaw vents, from GO Industrial are available in unfiltered, filtered, and fine filtered variants.

All Banlaw vents are manufactured with a float valve to shut-off refuelling at a specific ullage.  They are designed to allow air to be released from the fuel tank rapidly during high-speed refuelling, whilst avoiding premature nozzle shut-off, fuel spills and sprays.



Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Data Sheet Banlaw Vent Range Remote Breather Fine Filtered 3um
  • GO Data Sheet Banlaw 800 Series Dry Break Diesel Receiver Range
  • GO Data Sheet Banlaw Refuelling Systems
  • GO Manual Banlaw Vent Range Fine Filtered 3um
  • GO Service Kit Banlaw Vent Range Fine Filtered 3um

    Features

    • Excludes airborne particles 3μm or larger
    • Lasts between service intervals when installed on a vehicle fuel tank (2,000 machine hours)
    • Only incoming air is filtered. The Remote Breather vents air through a separate port as the tank is filled
      • Maximising fuelling efficiency
      • Extending filter life
      • Ensuring blocked filters cannot cause tank over-pressurisation
    • Visual ‘filter condition indicator fitted (electronic also available)
    • Complies with requirements from leading engine manufacturers for ultra clean fuel. Will not void engine warranty
