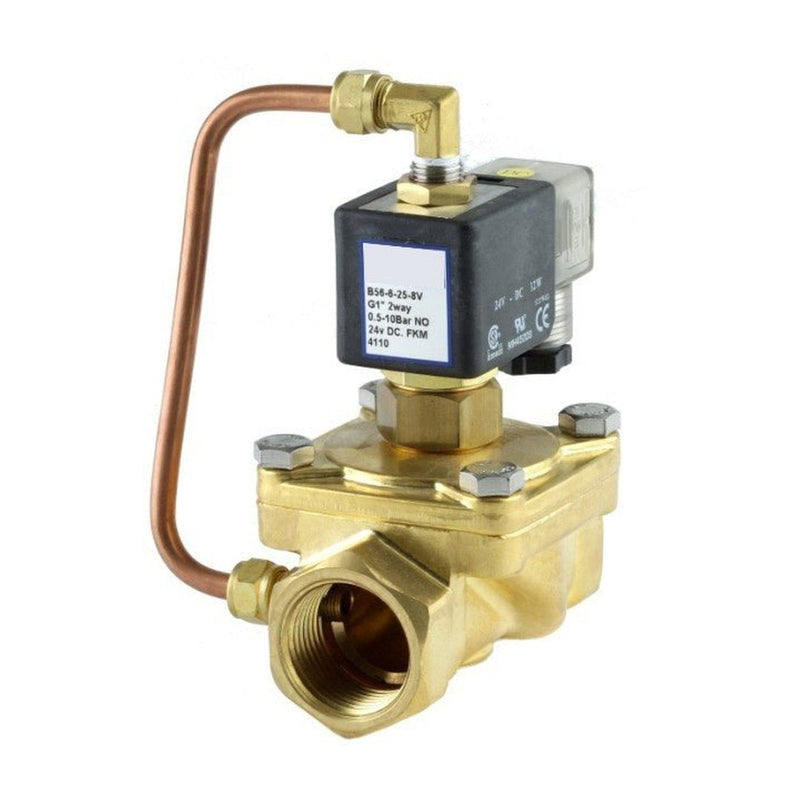

GO Solenoid Valve 1/4" to 2" B56 Brass Petrochemical Zero Differential Normally Open Range

SKU: B56-2-4

$292

GO Solenoid Valve 1/4" to 2" B56 Brass Petrochemical Zero Differential Normally Open Range

A normally open valve with forged brass body and seat, 304 stainless steel operator. Comes standard with Viton seals (contact us for silicone, Neoprene or Nitrile). Liquids to 40 cst viscosity. Standard with coil and weatherproof IP65 LED illuminated plug. Typical applications include; hot water, petrochemical and general industry.
  • Size 3/8" to 2" BSP
  • Function Normally Open (power to close)
  • Valve Operation Servo Assisted
  • Body Forged Brass
  • Seat FKM
  • Pressure Range 0.5 to 10 BAR
  • Media Petrochemical

    Brass 2 way 2 position normally open differential solenoid valve.G3/4", 20mm orifice, 304 SS operator, copper shading ring, FKM seat.0.5-10 BAR pressure range, media temp -10°C to 100°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

    Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temperature Coil Specifications
    B56-4-15-*V 1/2 15 4.5 0.5 to 10 BAR -10°C to 100°C SC-C1
    15 Volt Amps
    12 Watts
    Class H Insulation
    100% ED
    B56-5-20-*V 3/4 20 9.3 0.5 to 10 BAR -10°C to 100°C
    B56-6-25-*V 1 25 13.2 0.5 to 10 BAR -10°C to 100°C
    B56-7-35-*V 1 ¼ 35 26 0.5 to 10 BAR -10°C to 100°C
    B56-8-35-*V 1 ½ 35 26 0.5 to 10 BAR -10°C to 100°C
    B56-9-50-*V 2 50 48 0.5 to 10 BAR -10°C to 100°C
