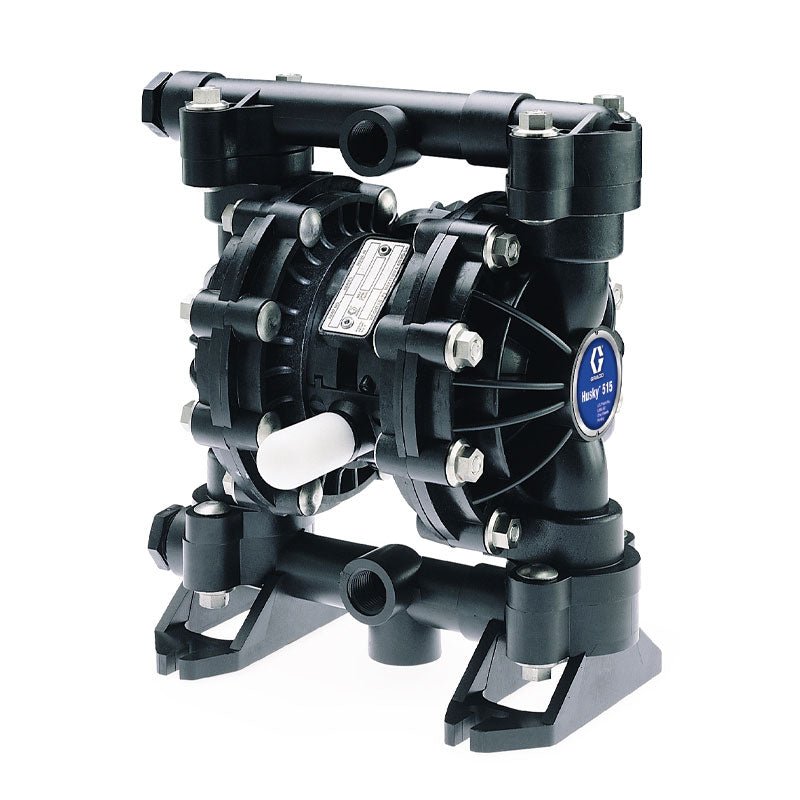

GRACO Husky 515 Series Air-Operated Double Diaphragm

SKU: 243669

GRACO Husky 515 Series Air-Operated Double Diaphragm

$2,002.00 AUD
$2,002.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO Husky 515 Series Air - Operated Double Diaphragm - GO Industrial - 243669

GRACO Husky 515 Series Air-Operated Double Diaphragm

$2,002.00 AUD
$2,002.00 AUD
Save $0
Sold out

Features

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance

    • Graco Husky 515 Series Air-Operated Double Diaphragm

    Overview

    Graco Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

    The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

    For 50/50 Windshield Wash Solution, Water, Anti-Freeze

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • GRACO Husky 515 Series Air-Operated Double Diaphragm 24366 Data Sheet
      • GRACO Husky 515 Series Air-Operated Double Diaphragm 243669

      Specifications

      TYPE Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 3/8
      AIR EXHAUST PORT THREAD GENDER Female
      AIR EXHAUST PORT THREAD TYPE NPT
      AIR INLET SIZE (IN) 1/4
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE NPT
      APPLICATION Industrial
      BALL MATERIAL Buna-N
      COMPATIBLE MATERIAL Water, Antifreeze, Windshield Washer Fluid
      DIAPHRAGM MATERIAL Buna-N
      FLUID SECTION MATERIAL Acetal
      FOR USE WITH Oil, Water, Anti-freeze, Washer Fluid
      MANIFOLD O-RING MATERIAL PTFE
      MATERIAL Acetal
      MAXIMUM AIR CONSUMPTION (SCFM) 28
      MAXIMUM AIR PRESSURE (BAR) 7
      MAXIMUM AIR PRESSURE (KPA) 700
      MAXIMUM AIR PRESSURE (PSI) 100
      MAXIMUM CYCLE RATE (CPM) 400
      MAXIMUM FLOW RATE (GPM) 15
      MAXIMUM FLOW RATE (L/MIN) 56.8
      MAXIMUM FLUID PRESSURE (BAR) 7
      MAXIMUM FLUID PRESSURE (KPA) 700
      MAXIMUM FLUID PRESSURE (PSI) 100
      MAXIMUM SOLID SIZE (CM) 0.2383
      MAXIMUM SOLID SIZE (IN) 0.09375
      MAXIMUM SOLID SIZE (MM) 2.4
      MODEL Husky
      OVERALL HEIGHT (IN) 10.63
      POWER SOURCE Air
      PUMP RATIO 1:1
      SERIES 515
      WEIGHT (LB) 7.8
      WETTED MATERIAL Groundable Acetal, Buna-N, PTFE
      MAXIMUM FLUID PRESSURE (MPA) 0.7
      MAXIMUM AIR PRESSURE (MPA) 0.7

        Features

      • Center and end porting options.
      • No mechanical seals to cause fluid leaks or failures
      • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
      • Easy-to-service air valve and ball checks
      • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
      • Split manifold option to pump multiple fluids without mixing
      • Delivery up to 15 gpm (56.7 lpm)
      • Easy-to-service air valve and ball checks
      • Reliable air valve for years of dependable performance
