GRACO Husky 3300 Aluminium Air Operated Double Diaphragm
SKU: 652002GRACO Husky 3300 Aluminium Air Operated Double Diaphragm
Other payment options
GRACO Husky 3300 Aluminium Air Operated Double Diaphragm
Features
Graco Husky 3300 Aluminium Air Operated Double Diaphragm
Overview

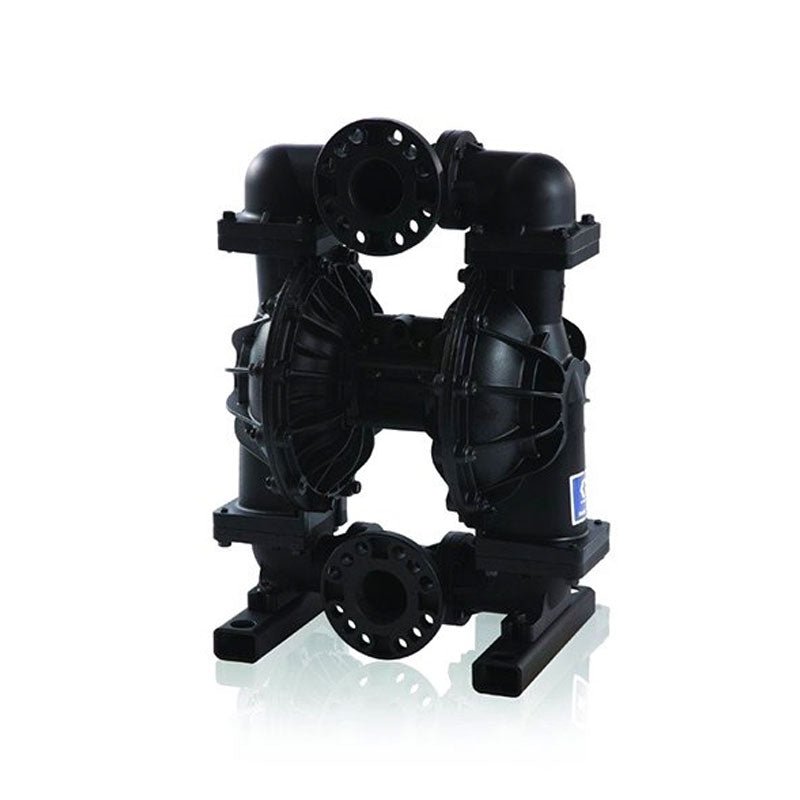

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.
Specifications
| Application | Industrial |
|---|---|
| Ball Material | Acetal |
| Center Section Material | Aluminum |
| Diaphragm Material | TPE |
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| Inlet Size (in) | 3/4 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | Buna-N |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 335 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Continuous Cycle Rate (CPM) | 103 |
| Maximum Flow Rate (GPM) | 300 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Solid Size (in) | 0.5 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°F) | 32 |
| Power Source | Air |
| Seat Material | TPE |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
- Overall improved efficiency (up to 40% more efficient)
- Highest fluid flow rate in its class
- Up to 5 times, longer diaphragm life compared to other air operated diaphragm pumps
- Expanded material offering to handle endless applications
- Offered in ATEX configuration.
- Expanded material offering to handle numerous applications
- Flow rates up to 300 GPM (1,135 lpm)
- Modular stall-resistant air valve design
- Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
- Heavy-duty construction
