Fozmula Fuel Level Sensor T/LL352
  • Fozmula Fuel Level Sensor T/LL352
1 1

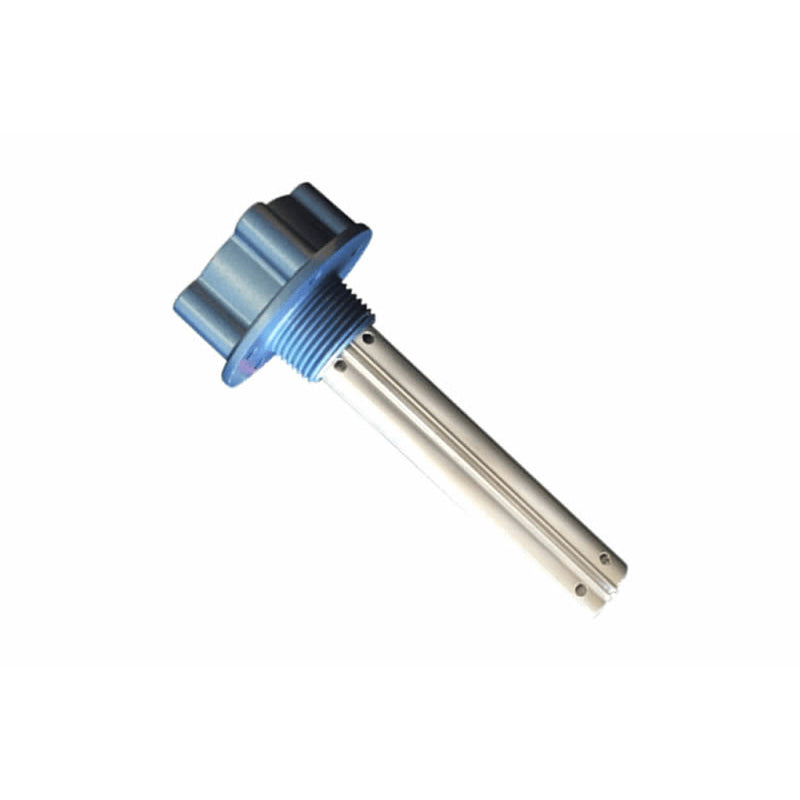

FOZMULA Fuel Level Sensor

SKU: T/LL352-600

FOZMULA Fuel Level Sensor

$295.00 AUD
$295.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Product

Other payment options

View full details
Fozmula Fuel Level Sensor T/LL352

FOZMULA Fuel Level Sensor

From $295.00 AUD
From $295.00 AUD
Save $0
Sold out

Dimensions

  • Probe length: Min 200mm, Max 2000mm (Min 7.9”, Max 78.7”)

Liquid Types

  • Liquids compatible with construction materials, typically diesel, kerosene, petrol and water.

Electrical

  • Supply voltage: 9-32 VDC with 80V over voltage protection
  • Supply current: 15mA@12Vdc + output load
  • Connections: 500mm long 18AWG XPE flying leads -  Misconnection protection is provided
  • Accuracy: ±2.0% of depth @ 20ºC (+68ºF)

Outputs

  • Resistive: Any values between 3-500Ω or 500-3Ω.
  • Current: 0-20mA, 4-20mA
  • Voltage: Any values between 0-5V/5-0V (12VDC system) or 0-10V/10-0V (24VDC system).

Materials

  • Housing: Die cast aluminium
  • Internal sensor: Aluminium
  • Sensor tube: Anodised aluminium
  • Wetted seals: PTFE, Polypropylene & Nitrile
  • Internal insulators: PTFE

Environmental Ratings

  • Temperature:

           -operating: -40ºC to +85ºC (-40ºF to +185ºF)
           -storage: -40ºC to +105ºC (-40ºF to +221ºF)

  • Weight: 300g (10 oz) (1M long unit)
  • Sealing: IP67
  • Max tank pressure: 10 psi (0.75 bar)
  • EMC: Type approval in accordance with EN ISO 13766:2006
  • Vibration: BS EN 60068-2-64:1993. IEC 60068-2-6*

Options

  • Alarm: One position at either high or low level. High level will switch to ground above level, low level will switch to ground below level. Max load 100mA
  • Connections: Any suitable customer specified receptacle can be fitted

The Basics

    Overview

    The Model T/LL352 series is a range of highly advanced sensors for continuously measuring the contents of a fuel tank. The unique feature of the T/LL352 is that it re-calibrates itself when a liquid with a different dielectric constant is used. For example, if it is used in a tank of conventional diesel, then the user can refill with bio-diesel and the sensor will correct the output level automatically.

    Options include a level alarm point, set at any point along the stem to be either high or low level, and any suitable receptacle or cable requirement specified by the user.

    • suitable for use with Diesel, Petrol, Water or Lubricants
