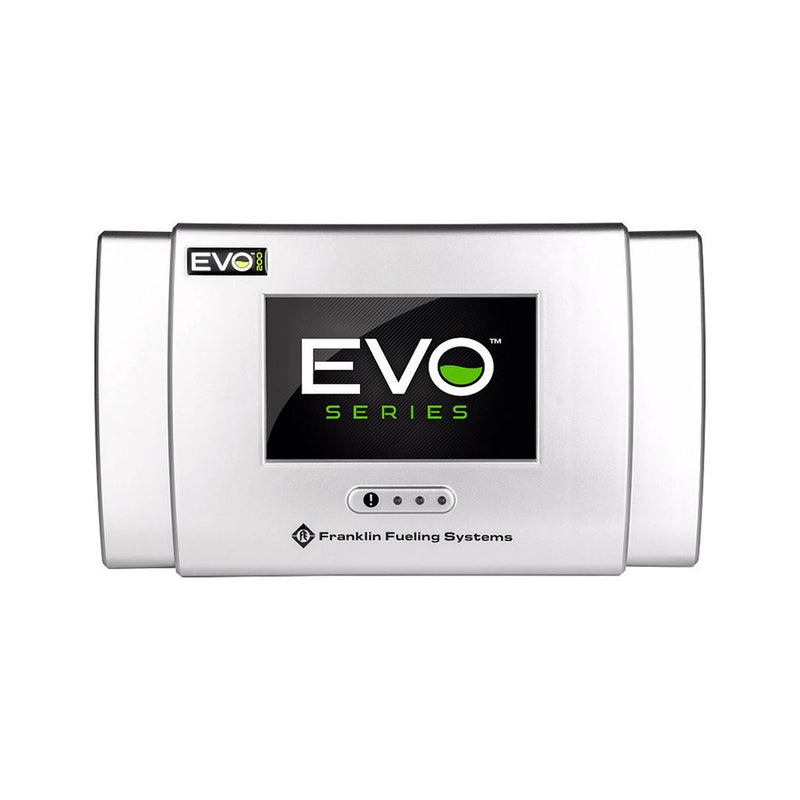

FRANKLIN EVO 200 Tank Gauge with Probe for Tanks up to 2m in Height

SKU EVO200D

$6,465.00 ex GST · $7,111.50 inc GST

Prices shown ex GST. Shipping calculated at checkout.

Quantity

Contact for pricing

No stock main warehouse, contact for lead time

Found a better deal? Message us to price match.

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

The Franklin Fueling EVO 200 automatic tank gauge can interface with up to six tanks across the wide range of sensors and probes available. This value automatic tank gauge provides turbine pump interface, inventory reconciliation and tank auto-calibration, with accuracy of plus or minus 0.1%.

The highly intuitive full-colour icon-based touch screen provides on-site access to inventory, alarm and compliance data. Simple setup and operation, remote connectivity via the iFUEL TANK web interface, and advanced security features protect your fuel system while keeping you connected to vital site data. Supplied with a probe for tanks up to 2 m in height.

Features

Simple Operation: Simple setup and operation.
Optional Web Interface: Remote connectivity via the iFUEL Tank web interface.
Intuitive Interface: A full-colour 7 inch LCD touchscreen provides one of the most intuitive user interfaces available.
Secure: Keeps your site compliant and protected with customisable user roles, user activity tracking, and up to three years of data back-up against power outages.
Inventory Reconciliation: An automated leak detection function analyses tank volume, deliveries and sales data to detect fuel loss or gain.
Auto Calibration: Automatically generates a highly accurate tank strapping chart to remove discrepancies in delivery reporting and reconciliations.
Turbine Pump Interface: Enhanced remote pump monitoring and control, including pump-in-water automation, clogged intake escalation, tank levelling and tank priority.
Icon Based Design: Designed to be understood and operated intuitively, reducing the training required.
One Touch Buttons: Customise the home screen buttons to automate everything from complex processes to daily delivery reports.
Quick Jump Menu: Navigate quickly between applications with fewer steps.

Included accessories

FRANKLIN EVO 200 Tank Gauge with Probe for Tanks up to 2m in Height
Tank probe (up to 2m)

Specifications

Maximum Tanks Monitored	6 (EVO 200) / 14 (EVO 400)
Maximum Sensor Input Capacity	6 (EVO 200) / 14 (EVO 400)
Lines Capacity	6 (EVO 200) / 14 (EVO 400)
Dry Contact Input Channels	2
Relay Output Channels	2
Connectivity	Ethernet, RS-232, RS-485, standard USB, Mini-B USB, and WiFi (optional)
Display Type	7" (17.78 cm) colour LCD touch screen
Printer Type	External (network or USB)
Alarm	Internal audible alarm
LEDs	Alarm, warning, and power
Tank Chart Correction Points	7,500
Applicable Liquids	Petroleum, chemicals, and waste
Level Units	Inches, centimetres, and millimetres
Volume Units	Gallons or litres (mass with density option)
Power Requirements	110 to 240 VAC, 50/60 Hz, 2.6 Amps
Operating Temperature	32° to 104° F (0° to 40° C)
Humidity	0-95% non-condensing
Dimensions	H: 8" (205 mm), W: 13 ¾" (350 mm), D: 3¼" (83 mm)
Alarm Set Points	High/low product, water, and temperature
Measurements	Density, mass, and phase separation measurement
Notifications	Email and SMS
Support	MODBUS
Approvals	UL, cUL, ATEX, IECEx, GSA IT Security
