Built for the work it does.

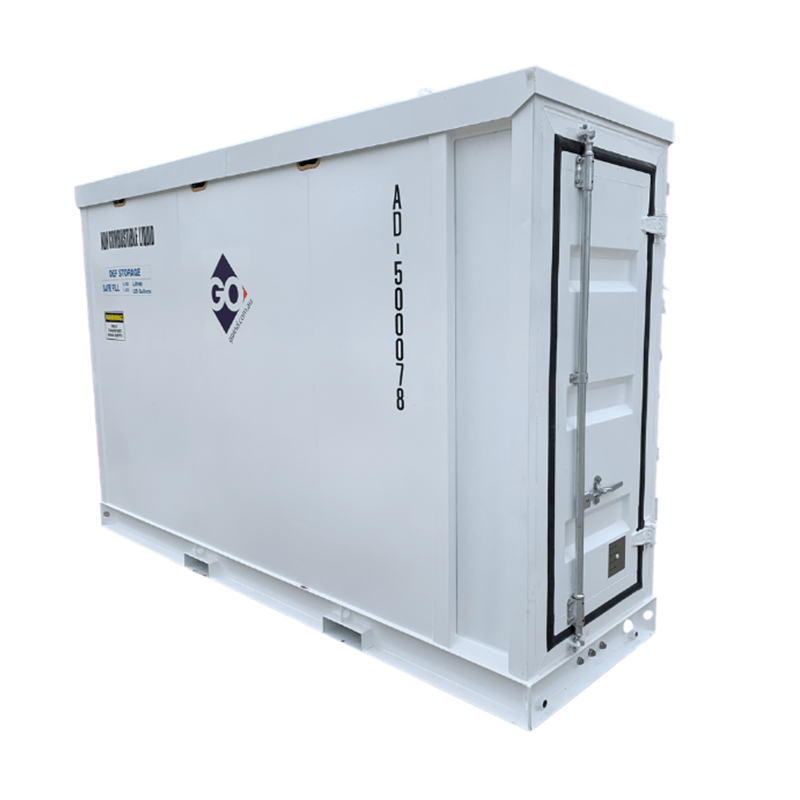

The GO ADBLUE HD Self Bunded Tank Range is designed specifically for the storage and dispensing of Adblue. The tank features a 304 Stainless Primary Tank, 304 Stainless Steel Pipework, Insulation between the Primary and Secondary Tank and a Painted, Carbon Steel Secondary Tank. The design is truly 110% Bunded. The secondary tank is designed to hold 110% of the capacity of the primary tank.
The GO ADBLUE HD Self Bunded Tank Range has been designed for use in home base refuelling facilities or retail forecourt applications.
Features
Features
UL LISTED
- Approved to UL142 / ULC-S601
PRIMARY TANK DESIGN
- full 304 stainless steel primary tank
- all wetted parts are 304 stainless steel
INSULATED
- the primary tank is fully insulated from the secondary tank and external environment to assist with maintaining the Adblue stored at an optimum temperature.
SELF BUNDED TANK (DOUBLE WALL)
- Self Bunded Tank (Double Wall), true 110% bunded design. The primary tank can be removed from the secondary tank, over time, for inspection and maintenance.
- the secondary tank will hold 110% of the capacity of the primary tank.
APPROVALS
- Designed and approved to UL142, ULC-S601, BS799, AS1940, AS1692, AS1657
INTEGRATED VALVING
- GO designed and manufactured 50mm (2") Anti Syphon Valve and Overfill Protection Valve.
OVERFILL ALARM
- Battery Operated (12V) Overfill Alarm
FILL INLET
- Supplied with 50mm (2") 304 Stainless Steel Fill Line including Sch 10 Pipe, Camlock Male Fitting with Dust Cap, Full Bore Ball Valve for isolation and Non Return Valve.
SUCTION OUTLET
- supplied with 50mm (2") 304 Stainless Steel Suction Line including Sch 10 Pipe, terminating with a Y Strainer and Full Bore Ball Valve.
BUNDED PUMP BAY HOUSING
- The bunded pump bay housing is supplied with heavy duty lockable doors with weather proof seals.
MANWAY
- 600mm Square Manway with Integrated Ladder down into the tank module to assist with degassing for future tank maintenance
PAINT SPECIFICATION - SECONDARY TANK
- Paint Colour RAL9003 Signal White/ Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um
LIQUIDS COMPATIBILITY
- Suitable for the storage and dispensing of adblue, water, diesel, lubricants, gasoline (petrol) or waste oil.
Specifications
| CODE |
CAPACITY (litres) |
SAFE FILL LEVEL (litres) |
LENGTH (mm) |
WIDTH (mm) |
HEIGHT (mm) |
WEIGHT (kg) |
| ABHD-3.3 | 3,300L | 3,000L | 2.46 | 1,147 | 2,550 | 1,800 |
| ABHD-5.5 | 5,500L | 5,000L | 3,965 | 1,147 | 2,550 | 2,300 |
| ABHD-11 | 11,000L | 10,000L | 3,965 | 2,250 | 2,550 | 3,205 |
Data Sheet
