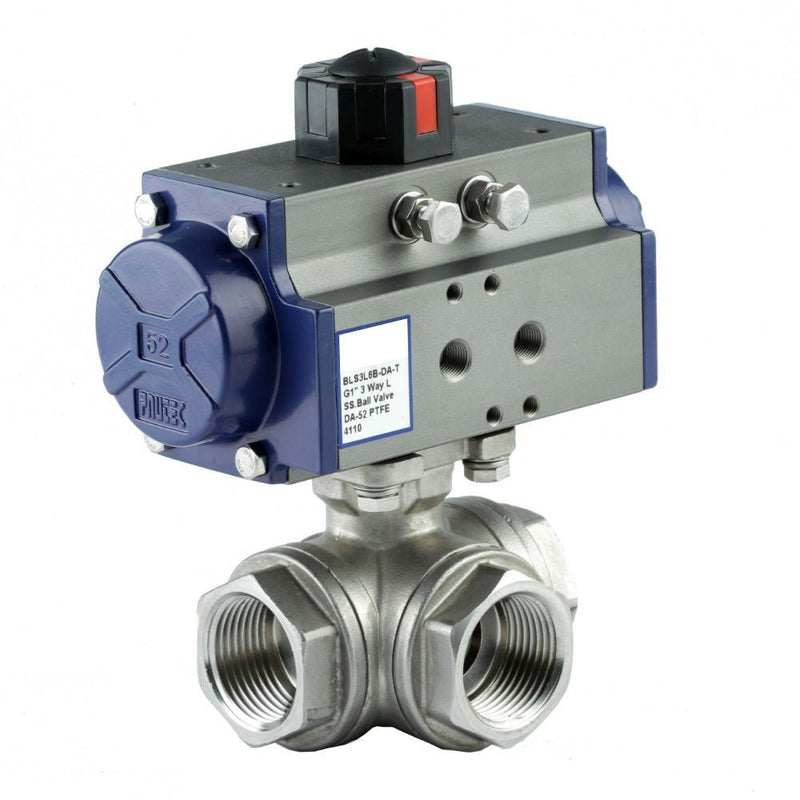

GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR

SKU: BLS3L2B-SR

GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR

$220.00 AUD
$220.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size

Other payment options

GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR

Overview

High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. The spring in the actuator allows the valve to return to a rest position in the case of loss of air.

Details

Typical applications include water treatment, chemical, marine, petrochemical and general industry.

Specifications

316 S.S 3 way, L port ball valve, with spring return actuator. RTFE seat, FKM seals, live loaded packingVacuum-68 BAR pressure range, media temp -20°C to 180°C.Anodised & coated aluminium spring return pneumatic actuator

  • Size 1/4" to 3" BSP
  • Body 316 Stainless Steel
  • Seat Reinfoced PTFE
  • Pressure  68 BAR
  • Temperature -20°C to 180°C
  • Actuation Spring Return Pneumatic
    • Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature Actuator Pressure
    BLS3L2B-SR-RT 1/4 8 SR50 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L3B-SR-RT 3/8 10 SR50 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L4B-SR-RT 1/2 12 SR50 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L5B-SR-RT 3/4 15 SR63 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L6B-SR-RT 1 20 SR63 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L7B-SR-RT 1 1/4 25 SR75 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L8B-SR-RT 1 ½ 32 SR88 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L9B-SR-RT 2 43 SR100 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L10B-SR-RT 2 ½ 55 SR115 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L11B-SR-RT 3 66 SR125 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
