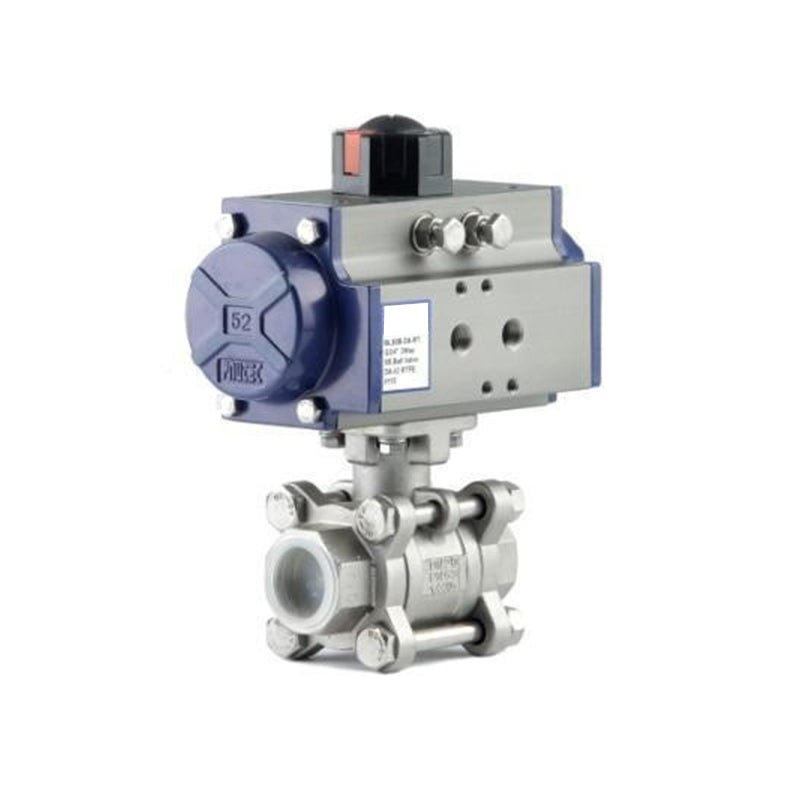

GO Ball Valve V Port Actuated Spring Return Pneumatic 316 Stainless 3 Piece Full Bore 1/2" to 4" BLVSR Range

$253.00


or make 4 interest-free payments of $63.25 AUD fortnightly with Afterpay More info

Maximum quantity available reached.

Reliable Gear from Reliable People.

Product Description

GO Ball Valve V Port Actuated Spring Return Pneumatic 316 Stainless 3 Piece Full Bore 1/2" to 4" BLVSR Range

High performance 3 piece full bore 316 Stainless Steel V Port Ball Valve with BSP threaded connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost.

Typical applications include water treatment, chemical, marine, petrochemical and general industry.

  • Size 1/2" to 4" BSP
  • Body 316 Stainless Steel 3 piece
  • Seat Reinforced PTFE
  • Pressure 70 BAR
  • Temperature -20°C to 180°C
  • Actuation Spring Return Pneumatic



Sku: BLV54B-SR
