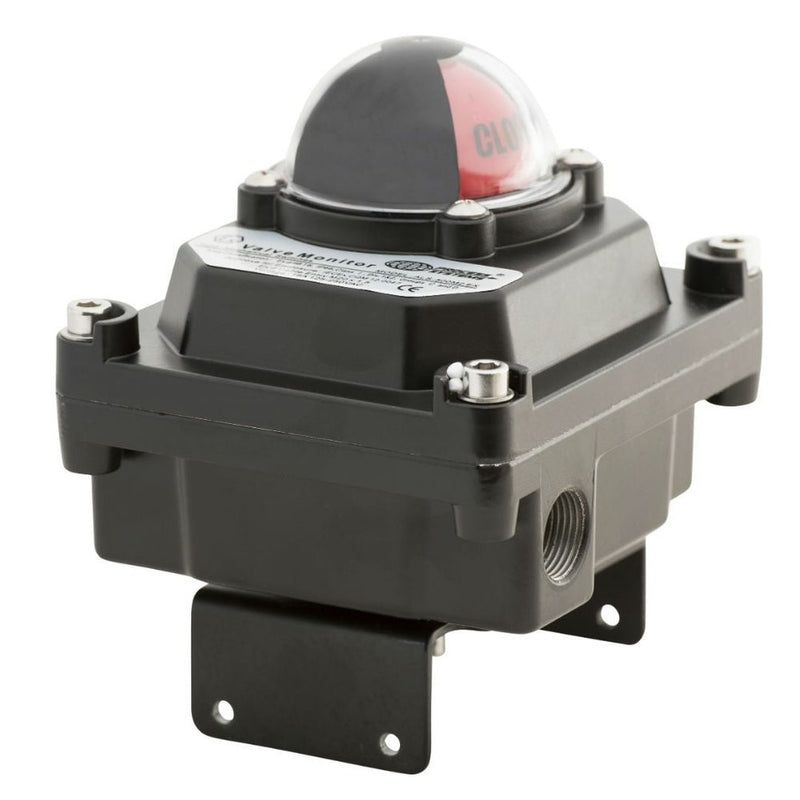

GO Limit Switch Box EXD IECEX for Pneumatic Actuator ALS500M2EX
Wiring Diagram - GO Limit Switch Box EXD IECEX for Pneumatic Actuator ALS500M2EX
Dimensions - GO Limit Switch Box EXD IECEX for Pneumatic Actuator ALS500M2EX
  • GO Limit Switch Box EXD IECEX for Pneumatic Actuator ALS500M2EX
  • Wiring Diagram - GO Limit Switch Box EXD IECEX for Pneumatic Actuator ALS500M2EX
  • Dimensions - GO Limit Switch Box EXD IECEX for Pneumatic Actuator ALS500M2EX
1 4

GO EXD IECEX Limit Switch Box for Pneumatic Actuator

SKU: ALS500M2EX

GO EXD IECEX Limit Switch Box for Pneumatic Actuator

$242.00 AUD
$242.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
GO Limit Switch Box EXD IECEX for Pneumatic Actuator ALS500M2EX

GO EXD IECEX Limit Switch Box for Pneumatic Actuator

$242.00 AUD
$242.00 AUD
Save $0
Sold out

Details

The sight dome is colour coded for instant clarification of the valve position. Yellow for open and red for closed. Also available in 316 Stainless Steel upon request.

GO EXD IECEX Limit Switch Box for Pneumatic Actuator

Overview

Our hazardous area limit switch box is designed to mount onto the top of pneumatic actuators to give position feedback. Four adjustable SPDT mechanical switches (two for open and two for closed) are wired into a terminal block. It also has termination for a solenoid valve so that a single multiple cable can be used. The solenoid can then be wired through the second conduit entry.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

    Construction

    • Powder coated aluminium body limit switch box.
    • Two M20x1.5 cable entry. High visability dome indicator.
    • 2 x SPDT 15A 125-250vAC Honywell limit switches for Open/Close indication
    • Ex d IIC T6 IP66. M20x1.5 connection. -20 to+50deg.C IECEx CQM 12.0047
    Enclosure Die cast aluminium or 316 Stainless Steel
    Coating Dichromate conversion with polyester powder coating
    O-Rings NBR
    Environment IP66
    Fasteners Stainless Steel
    Shaft Stainless Steel
    Conduit Entries Two M20 x 1.5
    Terminal Strip Contacts 14
    Mounting Bracket MB- 3.4:30 x 80, 130 H:20, 30 carbon steel or 316 SS
    Temperature Rating -20°C to 85°C
    Operating Voltage Max 15A
    • Function IECex Limit Swithc Box
    • Switches 2 x SPDT
    • Body Powder Coated Aluminium
    • IP Rating IP66
