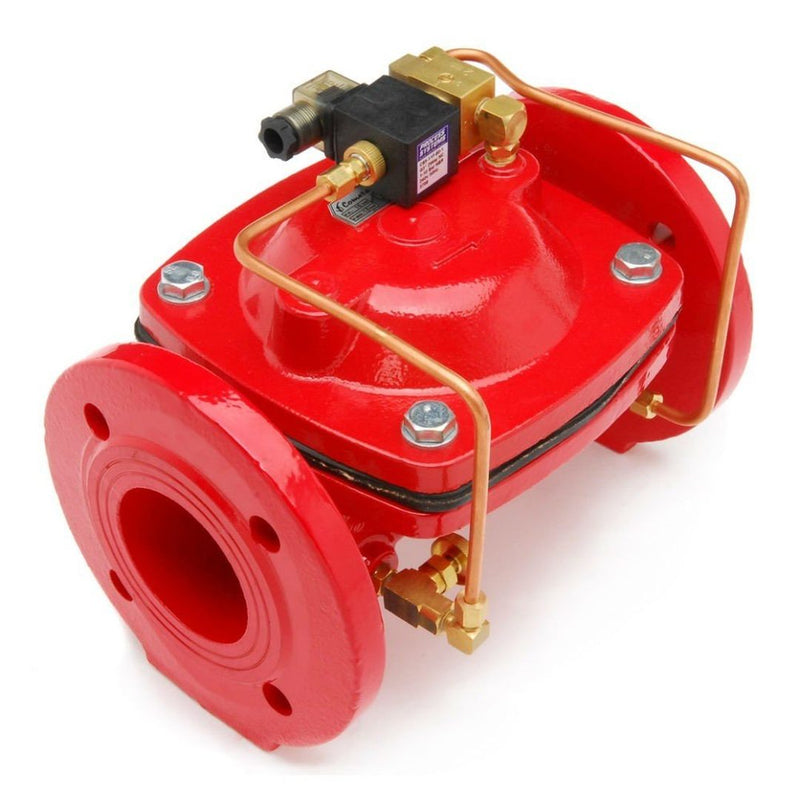

GO Solenoid Valve 1 1/2" to 6" C85 Cast Iron Normally Closed Range

SKU: C85-8-40

$506

GO Solenoid Valve 1 1/2" to 6" C85 Cast Iron Normally Closed Range

  • Size 1 1/2" to 3" BSP and 80mm to 150mm Table E flanged
  • Function Normally Closed (power to open)
  • Valve Operation Pilot
  • Body Cast Iron
  • Seat Natural Rubber
  • Pressure Range 1.5 to 16 BAR
  • Media Non aggressive media

          Cast Iron 2 way 2 position normally closed differential solenoid valve.G3", 80mm orifice, B26 pilot solenoid, Natural Rubber Diaphragm.1.5-12 BAR pressure range, media temp -10°C to 50°C

          Cast Iron solenoid pilot operated diaphragm valves. Large orifice sizes make it great for high flow applications. A remote pilot media can be used to control viscous or contaminated fluids if needed. Standard with finger filters to protect the pilot valve from contamination.

          Typical Applications include: Dust suppression & Delivery of liquids for industrial, agriculture or irrigation. Refer to our series 2 solenoid valve for pilot information.

          Model Port Size Orifice ømm Pressure Temperature Weight Kg
          C85-8-40-* 1 ½ BSP 40 1.5 to 16 BAR 5°C to 50°C 4.2
          C85-9-50-* 2 BSP 50 1.5 to 16 BAR 5°C to 50°C 4.2
          C85-11-80-* 3 BSP 80 1.5 to 16 BAR 5°C to 50°C 8.2
          C85-11F-80-* 80mm 80 1.5 to 16 BAR 5°C to 50°C 20.2
          C85-12F-100-* 100mm 100 1.5 to 16 BAR 5°C to 50°C 22.2
          C85-14F-150-* 150mm 150 1.5 to 16 BAR 5°C to 50°C 52.2
