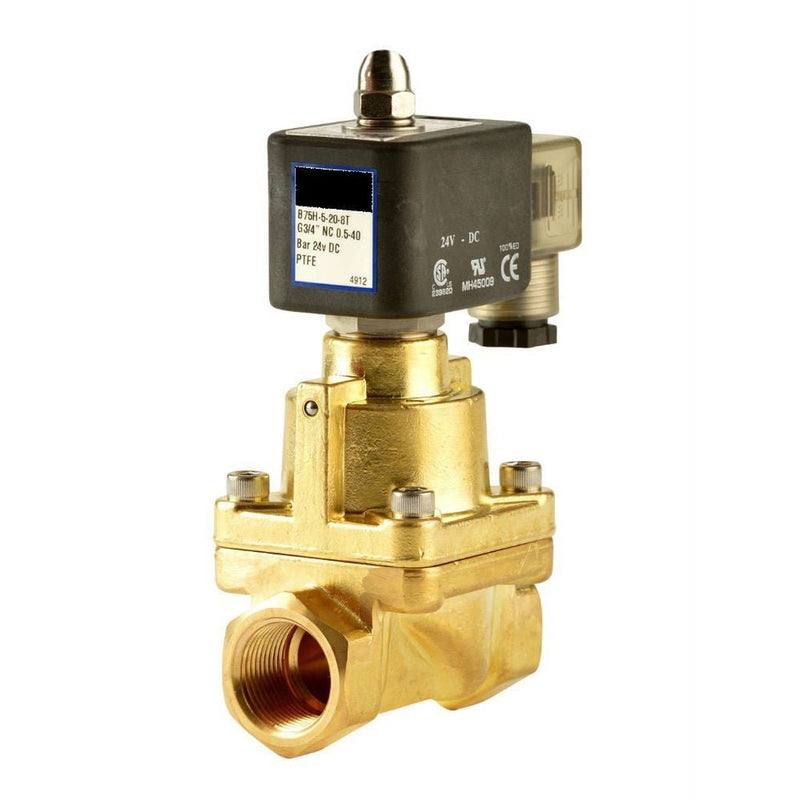

GO B75H High Pressure 40 Bar Normally Closed Solenoid Valves

Name: GO B75H High Pressure 40 Bar Normally Closed Solenoid Valves
Brand: Process Systems
SKU: B75H-4-15
Price: 457.0 AUD
Availability: InStock

SKU: B75H-4-15

GO B75H High Pressure 40 Bar Normally Closed Solenoid Valves

$457.00 AUD

Inclusive of GST. Shipping calculated at checkout.

In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Size

1/2" (15mm)

3/4" (20mm)

1" (25mm)

1 1/4" (32mm)

1 1/2" (40mm)

2" (50mm)

Orifice

15mm

20mm

25mm

35mm

50mm

Product variants

Quantity

Other payment options

The Basics

A high flow and high pressure (to 40 Bar) piston type differential solenoid valve. Brass forged body with Teflon seats applicable for air and fluid up to 50 centistoke viscosity. Comes with 100% duty rated encapsulated coil (grade H insulation) and LED din plug (IP65).

Brass 2 way 2 position normally closed differential solenoid valve.G1/2", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.0.5-40 BAR pressure range, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Model	Port Size (BSP)	Orifice ømm	CV	Pressure (BAR)	Media Temperature	Repair Kit	Coil Specifications
B75H-3-15-*T	3/8”	15	4.5	0.5 to 40	-10°C to 120°C	RK-B75H-4-T	SC-C2 24.4 Volt Amps 18 Watts Class F Insulation 100% ED
B75H-4-15-*T	1/2"	15	4.5	0.5 to 40	-10°C to 120°C	RK-B75H-4-T
B75H-5-20-*T	3/4"	20	9.3	0.5 to 40	-10°C to 120°C	RK-B75H-5-T
B75H-6-25-*T	1”	25	13.2	0.5 to 40	-10°C to 120°C	RK-B75H-6-T
B75H-7-35-*T	1 ¼”	35	26	0.5 to 40	-10°C to 120°C	RK-B75H-8-T
B75H-8-35-*T	1 ½”	35	26	0.5 to 40	-10°C to 120°C	RK-B75H-8-T
B75H-9-50-*T	2”	50	48	0.5 to 40	-10°C to 120°C	RK-B75H-9-T

Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Forged Brass
Seat PTFE
Pressure Range 0.5 to 40 BAR
Media Non aggressive media
