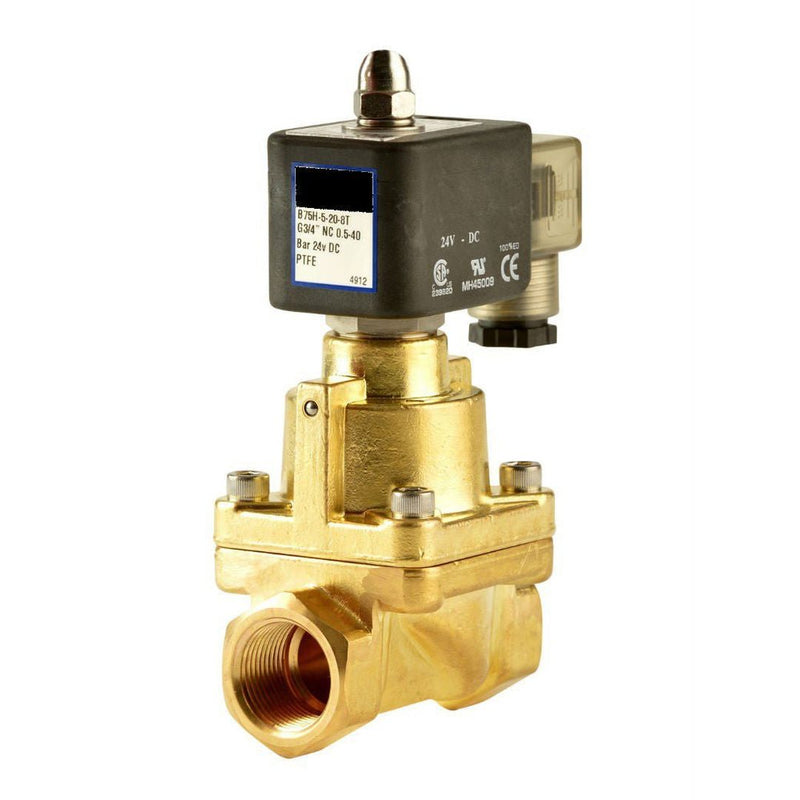

GO Solenoid Valve 3/8" to 2" B75HH High Pressure 80 Bar Normally Closed Range

SKU: B75HH-4-15

$765

GO Solenoid Valve 3/8" to 2" B75HH High Pressure 80 Bar Normally Closed Range

A high flow and high pressure (to 80 Bar) piston type differential solenoid valve. Brass forged body with Teflon seats applicable for air and fluid up to 50 centistoke viscosity. Comes with 100% duty rated encapsulated coil (grade H insulation) and LED din plug (IP65).

  • Size 3/8" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Servo Assisted
  • Body Forged Brass
  • Seat PTFE
  • Pressure Range 0.5 to 80 BAR
  • Media Non aggressive media

                  Brass 2 way 2 position normally closed differential solenoid valve.G1/2", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.0.5-80 BAR pressure range, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

                  Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
                  B75HH-3-15-*T 3/8 15 4.5 0.5 to 80 -10°C to 120°C RK-B75HH-4-T SC-C2
                  24.4 Volt Amps
                  18 Watts
                  Class F Insulation
                  100% ED
                  B75HH-4-15-*T 1/2 15 4.5 0.5 to 80 -10°C to 120°C RK-B75HH-4-T
                  B75HH-5-20-*T 3/4 20 9.3 0.5 to 80 -10°C to 120°C RK-B75HH-5-T
                  B75HH-6-25-*T 1 25 13.2 0.5 to 80 -10°C to 120°C RK-B75HH-6-T
                  B75HH-7-35-*T 1 ¼ 35 26 0.5 to 80 -10°C to 120°C RK-B75HH-8-T
                  B75HH-8-35-*T 1 ½ 35 26 0.5 to 80 -10°C to 120°C RK-B75HH-8-T
                  B75HH-9-50-*T 2 50 48 0.5 to 80 -10°C to 120°C RK-B75HH-9-T
